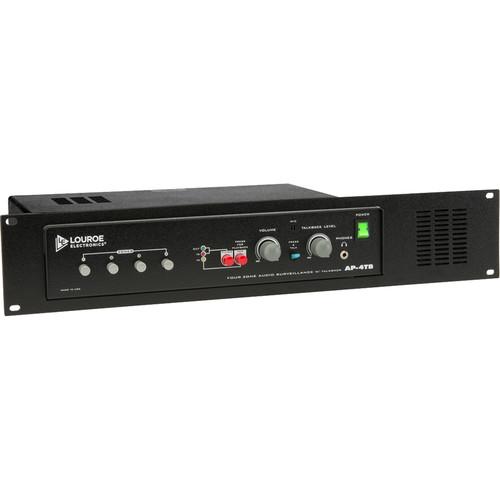

User Manual for Louroe AP-4TB-RM 4-Zone Talkback Audio Monitoring Base Station Click to enlarge the picture
Contents of the user manual for the Louroe AP-4TB-RM 4-Zone Talkback Audio Monitoring
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe AP-4TB-RM 4-Zone Talkback Audio Monitoring contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe AP-4TB-RM 4-Zone Talkback Audio Monitoring Base Station provides an audio monitoring system with 2-way talk/listen between the remote speaker/microphone and itself.The AP-4TB-RM Base Station has a 3" built-in speaker for monitoring audio and a built-in microphone for talking back to the remote zone. Each zone has an audio output jack (RCA) for connection to a DVR with multiple audio inputs. For 2-way talk/listen, the AP-4TB-RM Base Station is compatible with Louroe speaker/microphone Models TLI, TLO, TLSP, TLSP-CM, and TLM Series. - Built in 3" speaker for listening and monitoring both live audio and playback audio and a built-in microphone for talkback to the remote speaker
- Individual Line Level RCA outputs (4 or 8) for recording into DVR, soundcard module, etc.
- A single selectable Line Level RCA output for recording into a VCR or a DVR with only 1 audio input
- Single RCA audio input for receiving audio playback from a DVR or VCR
- Built-in filter for improving playback from 12/24 hour time-lapse recorders
- Microphone output jack for each zone for connection to the DVR with multiple audio inputs
- Contains internal power supply for direct connection to 120 VDC source
In the Box Louroe AP-4TB-RM 4-Zone Talkback Audio Monitoring Base Station Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe AP-4TB-RM 4-Zone Talkback Audio Monitoring Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-342 Specs | Input Sensitivity | 0.78 Vrms (from remote microphone)
-45 dB (talk-back microphone) | | Power Output | Monitoring: 1.5 W at 8 Ω<br>Talkback: 1.5 W at 70 V line (maximum) | | Audio Line Output | Impedance: 600 W or higher | | Audio Input Impedance | 10 kΩ | | Frequency Response | Audio: 100 Hz to 10 kHz (flat)
-20 dB at 200 Hz to +8 dB at 3 kHz (enhanced) | | Headphone Impedance | 8 to 600 Ω | | Power Input | 12 VDC, 60 Hz | | Wiring | 4-Conductor consisting of 2 conductor shielded cable, 20 gauge with a 22 gauge drain wire (microphone connection), 2-Conductor unshielded, 18 gauge (speaker connection) | | Dimensions (W x L x H) | 12.0 x 10.0 x 2.0"( 30.4 x 25.4 x 5.08 cm) | | Weight | 8.5 lb (3.9 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 24.0 x 14.0 x 12.0" |
