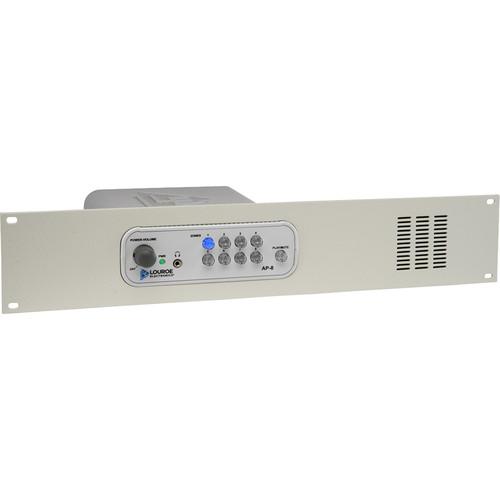

User Manual for Louroe AP-8 8-Zone Audio Monitoring Base Station with Rack Mount Click to enlarge the picture
Contents of the user manual for the Louroe AP-8 8-Zone Audio Monitoring Base
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe AP-8 8-Zone Audio Monitoring Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe AP-8 8-Zone Audio Monitoring Base Station with Rack Mount accommodates 8 Louroe microphones and has 8 line level audio outputs. This non-alarming base station also contains a built-in speaker for producing live audio and audio playback from a DVR. In addition, this audio station contains a selectable RCA audio output for interfacing with a DVR with only 1 audio input, or with a VCR. Zone selection is done using the pushbutton. Moreover, all Louroe microphones are compatible with this 8-Zone Audio Monitoring Base Station. When part of a Louroe Audio System, this base station is suitable for use in sleep disorder centers, convenience stores, therapy labs, interrogation rooms, fast food restaurants, daycare centers, and any other places where CCTV cameras have been installed. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone. - Built-in amplifier and 3" (76mm) speaker for monitoring live audio and playback
- Audio output (each zone) for connection to a DVR with multiple audio inputs
- Headphone jack for private monitoring
- 19" (482.6mm) rack mount kit (RM-1935)
In the Box Louroe AP-8 8-Zone Audio Monitoring Base Station with Rack Mount Rack Mount Kit (RM-1935) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe AP-8 8-Zone Audio Monitoring Base Station with Rack Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-167 Specs | Input Sensitivity | From Remote Mic: 0.78 Vrms | | Power Output | Monitoring Power Output: 1.5 W at 8 Ω | | Impedance | Audio Line Output Impedance: 600 W or higherAudio Input Impedance: 10 kΩ | | Frequency Response | 100 to 10,000 Hz | | Headphone Impedance | 8 to 600 Ω | | Power Input | 12 VDC, 500 mA | | Wiring | Requirements: 2 x conductor shielded cable, 22-gauge with a 24- gauge drain wire Unshielded cable is not satisfactory for audio systems. | | Dimensions (W x L x H) | 8.50 x 9.50 x 2.12" (215.90 x 241.30 x 53.84 mm) | | Weight | 3.5 lbs (1.6 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 20.0 x 6.0 x 6.0" |
