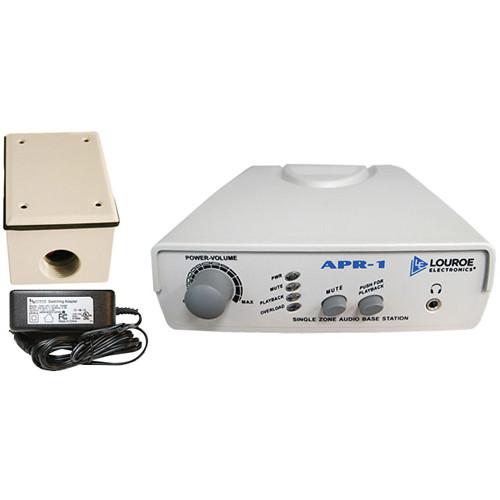

Product description The ASK-4 #101-E Audio Monitoring Kit from Louroe Electronics is a single-zone audio monitoring system designed to interface with a DVR, VCR, or other recording devices that accept line level input. This kit consists of a Verifact E Microphone, an APR-1 Desktop Base Station, an AD-1 Plug-in Switching AC Adapter, and a Dual RCA Cable. It is suitable for use in convenience stores, police interview rooms, booking rooms, fast food restaurants, casino soft count rooms, speech therapy labs, or anyplace where CCTV cameras are installed. The APR-1 Desktop Base Station is a single-zone, non-alarming audio monitoring base station. As a system (with a Louroe microphone), it provides one-way live audio with a built-in 3" (7.62cm) speaker. It contains input / output jacks for connecting to a DVR / VCR that accept line level input for audio recording and playback. Other features include adjustable volume control and a 3.5mm headphone jack. A mute switch is also provided to mute the audio heard on the speaker of the headset. The distance between the APR-1 base station and the microphone can be up to 1,000' (305m). The Verifact E Microphone is an electret condenser, omni-directional microphone with preamp that is constructed inside a single-gang weather-resistant Bell Box. It is phantom powered from the Louroe Base Station. It is designed for outdoor applications or where moisture may be present. It is suitable for surface mounting only. The Dual RCA Cable allows connection to DVRs / VCRs or other audio devices that accept line level input. The UL listed AD-1 Plug-In Switching AC Adapter supplies 12VDC to the APR-1 Base Station. Note: APR-1 can be equipped with RM-1935 SER 19" (48.26cm) rack mount assembly (sold separately).
Wiring Requirements: 2-Conductor shielded cable, 22 gauge with a 24 gauge drain wire. Unshielded cables are not suitable for audio systems.
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped. - APR-1 Audio Base Station
-
- Built-in 3" (7.62cm) speaker for monitoring live audio
- Audio input/output jacks for recording and playback from a DVR / VCR
- Adjust monitoring level control
- 3.5mm headphone jack for private monitoring
- UL listed
- Verifact DP Microphone
-
- High sensitivity to low sound pressure
- Omni-directional microphone can pick up normal sounds up to 15' (4.57m) away
- May be located up to 1,000’ (305m) from the APR-1 Base Station
- Microphone preamp contains sensitivity switch for lowering gain
- Weather-resistant for outdoor use
- May be used in moist or damp environment
UPC: 785583003630 In the Box Louroe ASK-4 #101-E Audio Monitoring Kit APR-1 Audio Monitoring Base Station Verifact E Microphone AD-1 Plug-In Switching AC Adapter Dual RCA Cable for Connection to VCR / DVR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe ASK-4 #101-E Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-363 Specs | | | Input Sensitivity | 0.78 Vrms from remote microphone | | Output Power | Monitored: 1 W @ 8 Ω | | Line Output Impedance | 600 Ω or higher (for audio) | | Audio Input Impedance | 10 kOhm | | Frequency Response | 100 Hz to 10 kHz | | Headphone Impedance | 8 to 600 ohms | | Power Supply | 12 VDC, 500 mA | | Dimensions (L x W x H) | 8.25 x 5.63 x 2.00" (20.96 x 14.30 x 5.08 cm) | | Weight | 1.50 lb (0.68 kg) | | | | Type | Electret condenser microphone | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Output | Line level (0 dB @ 1 kOhm), unbalanced | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | Output Impedance | 600 ohms, unbalanced | | Dimensions (W x H x D) | Microphone: 2.75 x 4.38 x 2.00" (6.99 x 11.13 x 5.08 cm) | | Weight | 12.50 oz (354.37 g) | | | | Input | 100 to 240 VAC, 60 Hz, 0.3 A | | Output | 12 VDC, 500 mA | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 11.9 x 8.4 x 5.7" |
