User Manual for Louroe ASK-4 #102-RM Audio Monitoring Kit Click to enlarge the picture
Contents of the user manual for the Louroe ASK-4 #102-RM Audio Monitoring Kit
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
 |
User manual for the Louroe ASK-4 #102-RM Audio Monitoring Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

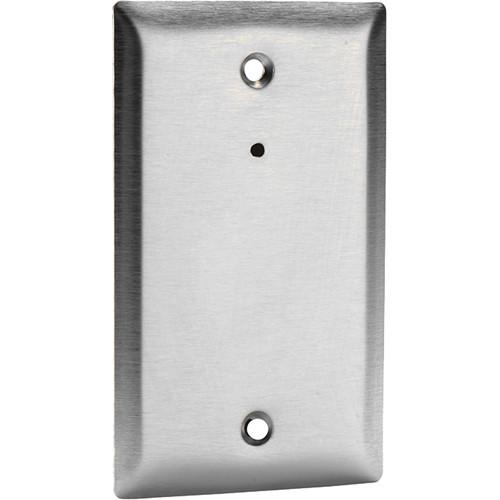

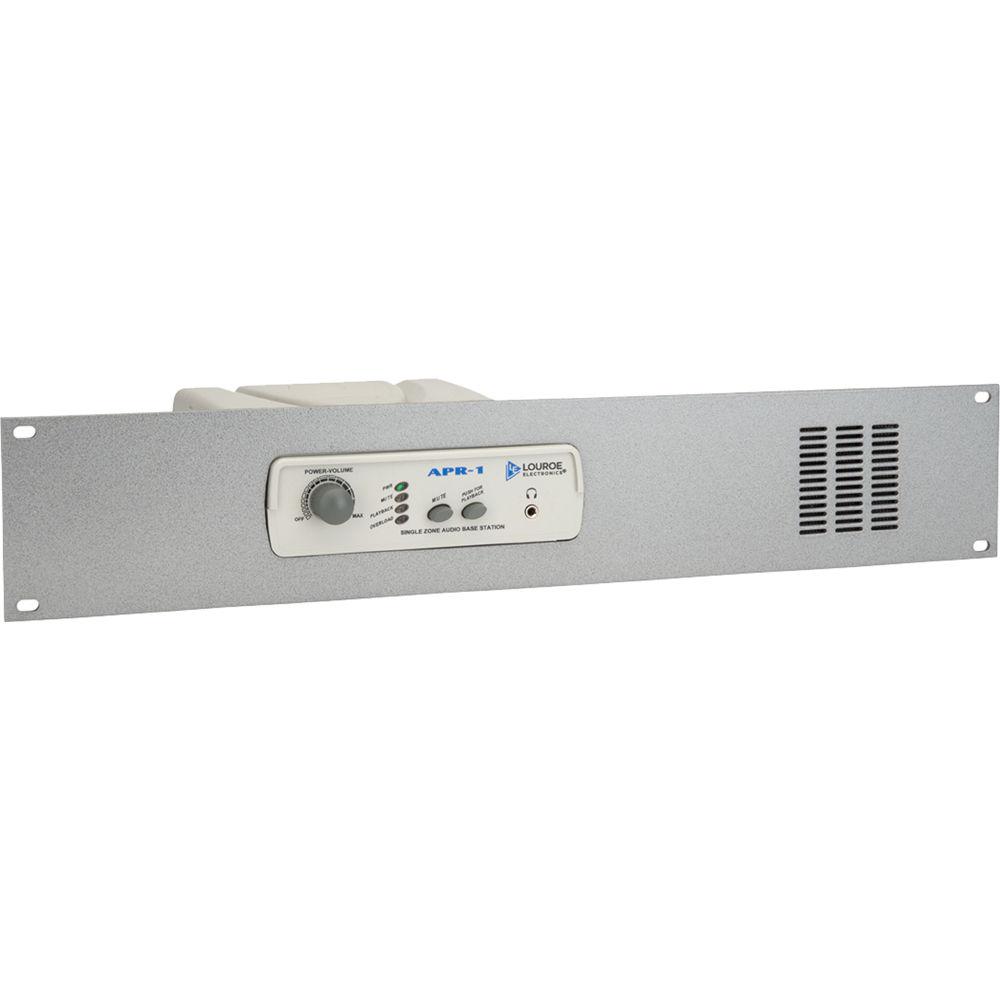

Product description The ASK-4 #102-RM Audio Monitoring Kit from Louroe Electronics is a single-zone audio monitoring system designed to interface with a DVR, VCR, or other recording devices that accept line level input. It consists of an APR-1 Desktop Base Station, a Verifact D Microphone, an AD-1 Plug-in Switching AC Adapter, and a dual RCA cable for connecting to a DVR / VCR. It is suitable for use in convenience stores, polices interview rooms, booking rooms, fast food restaurants, casino soft count rooms, speech therapy labs, or anyplace where CCTV cameras are installed.The APR-1 Desktop Base Station is a single-zone, non-alarming audio monitoring device. As a system (with a Louroe microphone), it provides one-way live audio with the built-in 3" (7.62cm) speaker. It features input / output jacks for connecting to a DVR / VCR that accepts line level input for audio recording and playback. Other features include adjustable volume control and a 3.5mm headphone jack. A mute switch is also provided to mute the audio heard on the speaker of the headset. The distance between the APR-1 and the microphone can be up to 1,000' (305m).The Verifact D Microphone is an electret condenser microphone with pre-amp and omni-directional pattern. It provides listening capabilities between the area of coverage and the Louroe Base Station or other audio receiving devices. The microphone assembly is mounted to the back of a single-gang stainless steel faceplate that fits into a single-gang electrical box. The Verifact D Microphone can be flush or surface mounted to a wall or ceiling.The dual RCA cable allows for connection to a DVR/VCR or other audio devices that accept line level input (0 dB @ 600Ω). The AC adapter supplies 12VDC to APR-1 and the microphone. Note: APR-1 can be equipped with a RM-1935 SER 19" (48.26cm) rack mount assembly (sold separately).
Wiring Requirements: 2-conductor shielded cable, 22 gauge with a 24 gauge drain wire. Unshielded cables are not suitable for audio systems.
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped.
The electrical box is not included with this kit. - Omni-directional microphone can pick up normal sounds up to 15' (4.57m) away, or within a 30' (9.14m) diameter circle
- 3" (7.62cm) speaker for monitoring live audio and playback from VCR or DVR
- 3.5mm headphone jack for private listening
- Audio output (RCA) to DVR / VCR
- Microphone may be mounted up to 1,000' (305m) from the APR-1Base Station

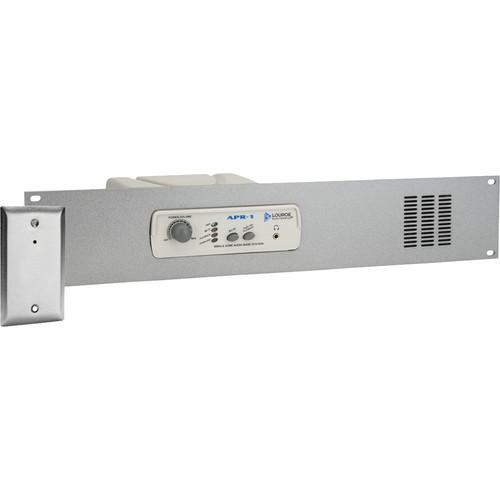

In the Box Louroe ASK-4 #102-RM Audio Monitoring Kit APR-1 Audio Base Station Verifact D Microphone AD-1 Plug-In Switching AC Adapter Dual RCA Cable for Connection to VCR / DVR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe ASK-4 #102-RM Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-019 Specs | | | Input Sensitivity | 0.78 Vrms from remote microphone | | Output Power | Monitored: 1 W @ 8 Ω | | Line Output Impedance | 600 Ω or higher (for audio) | | Audio Input Impedance | 10 kΩ | | Frequency Response | 100 Hz to 10 kHz | | Headphone Impedance | 8 to 600 Ω | | Power Supply | 12 VDC, 500 mA | | Dimensions (L x W x H) | 8.25 x 5.63 x 2.00" (20.96 x 14.30 x 5.08 cm) | | Weight | 1.50 lb (0.68 kg) | | | | Type | Electret condenser microphone | | Output | Line level (0 dB @ 1 kΩ), unbalanced | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | Output Impedance | 600 Ω, unbalanced | | Dimensions (W x H) | Faceplate: 2.75 x 4.50" (6.99 x 11.43 cm) | | Weight | 3 oz (85 g) | | | | Input | 100 to 240 VAC, 60 Hz, 0.3 A | | Output | 12 VDC, 500 mA |
