User Manual for Louroe ASK-4 #122 Audio Monitoring Kit Click to enlarge the picture
Contents of the user manual for the Louroe ASK-4 #122 Audio Monitoring Kit
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe ASK-4 #122 Audio Monitoring Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

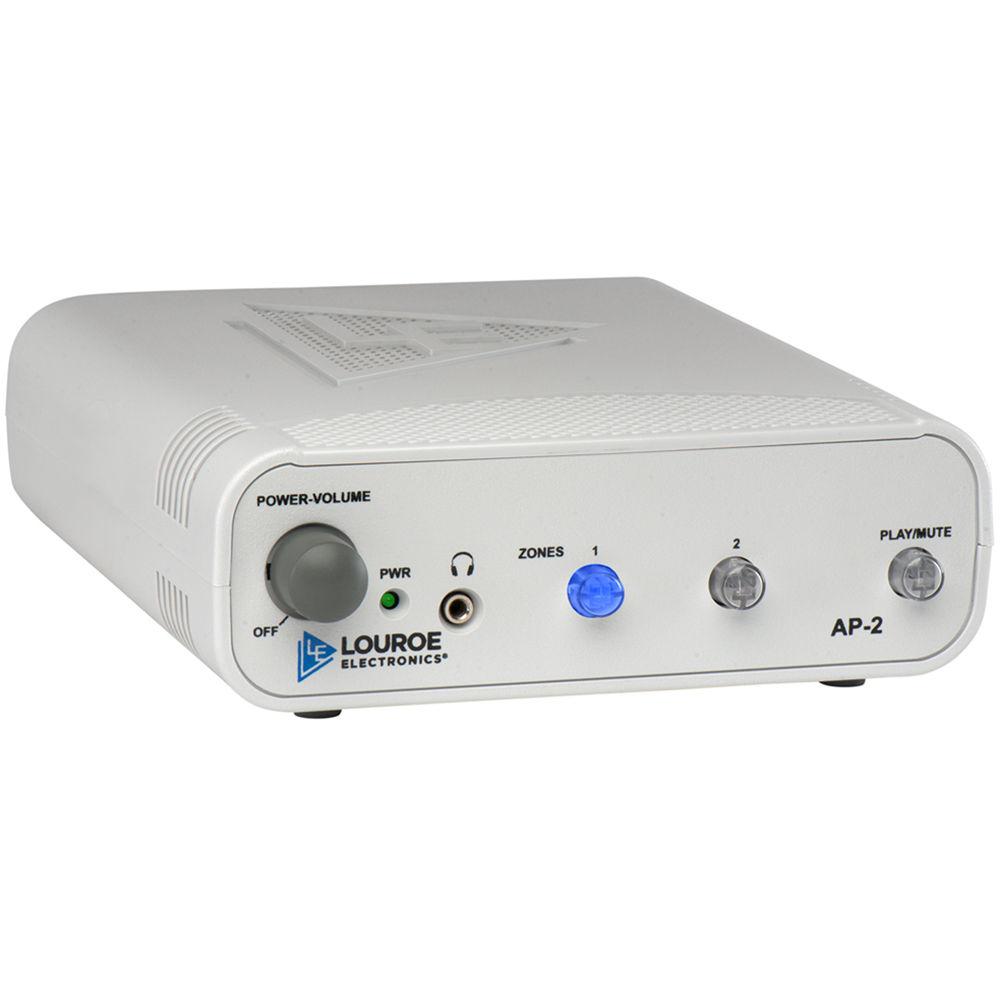

Product description The ASK-4 #122 Audio Monitoring Kit from Louroe Electronics is a 2-zone audio monitoring system designed for audio monitoring and interfacing with DVRs, VCRs, or other audio devices that accept line level input. This kit consists of an AP-2 Desktop Base Station, 2 Verifact A Microphones, an AD-1 Plug-In Switching AC Adapter, and a Dual RCA Cable for connection to a DVR / VCR or other audio devices that accept line level input (0 dB @ 600Ω). It is suitable for use in convenience stores, fast food restaurants, booking rooms, interrogation rooms, day care centers, sleep disorder centers, therapy labs, cashier booths, gas stations, or anyplace where CCTV cameras are installed.The AP-2 Desktop Audio Base Station is a non-alarming audio monitoring base station that provides 2 audio zones. The AP-2 audio base station will accommodate 2 Louroe microphones and has 2 line level audio outputs. It contains a 3" (7.62cm) built-in speaker for producing live audio and audio playback from a DVR. In addition, it also contains a selectable RCA audio output for interfacing with a DVR with only one audio input, or with a VCR. Zone selection can be done by using the pushbutton.The Verifact A Microphone is an omni-directional, low impedance, electret condenser microphone with a built-in preamp for producing line level audio. It is housed in a high impact ABS dome designed for ceiling or wall mounting. The normal pick-up pattern is approximately up to 15' (4.57m) from the microphone location towards all directions, or within a 30' (9.14m) diameter circle. Note: Wiring Requirements: 2-conductor shielded cable, 22 gauge with a 24 gauge drain wire. Unshielded cable is not suitable for audio systems. When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped. - AP-2 Audio Base Station
-
- Built-in amplifier and 3" (7.62cm) speaker for monitoring live audio and playback
- Audio output (each zone) for connection to a DVR with multiple audio inputs
- Volume control
- Headphone jack for private monitoring

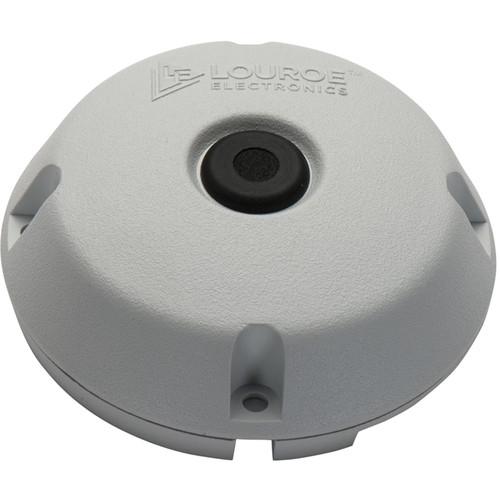

- Verifact A Microphone
-
- Sturdy ABS housing
- Microphone can pick up normal sounds up to 15' (4.57m) away
- Easy surface mount to wall or ceiling
- May be located up to 1,000' (305m) from base station
- Phantom powered from Louroe base station
- Microphone preamp contains sensitivity switch for lowering gain

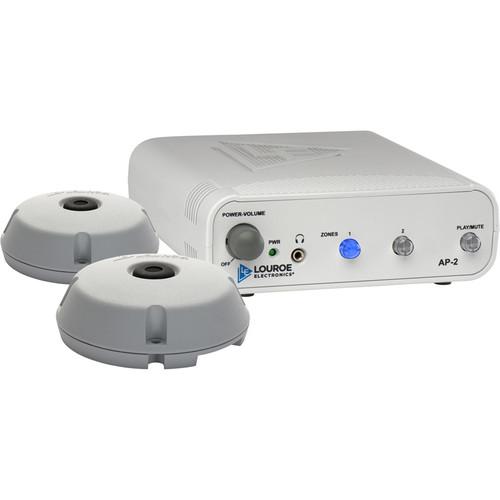

UPC: 785583001223 In the Box Louroe ASK-4 #122 Audio Monitoring Kit AP-2 Desktop Audio Base Station 2 x Verifact A Microphone AD-1 Plug-in Switching AC Adapter Dual RCA Cable for Connecting to VCR / DVR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe ASK-4 #122 Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-393 Specs | Input Sensitivity | 0.78 Vrms from remote microphone | Output Power | Monitored: 1.5 W @ 8 Ω | Line Output Impedance | 600 Ω or higher (for audio) | Audio Input Impedance | 10 kΩ | Frequency Response | 100 Hz to 10 kHz | Headphone Impedance | 8 to 600 Ω | Power Supply | 12 VDC, 500 mA | Dimensions (L x W x H) | 8.50 x 9.50 x 2.13" (21.59 x 24.13 x 5.41 cm) | Weight | 3.5 lb (1.6 kg) | | Type | Electret condenser microphone | Output | Line level (0 dB @ 1,000 Ω) | Frequency Response | 40 Hz to 15 kHz ± 1 dB | Current Drain | 4 mA | Supply Voltage | 12 VDC, 500 mA | Dimensions (Ø x H) | 4.0 x 1.5" (10.2 x 3.8 cm) | | Input | 100 to 240 VAC, 60 Hz, 0.3 A | Output | 12 VDC, 500 mA | | Package Weight | 3.0 lb | Box Dimensions (LxWxH) | 22.2 x 10.4 x 9.8" |
