User Manual for Louroe ASK-4 #304 Audio Monitoring Kit Click to enlarge the picture
Contents of the user manual for the Louroe ASK-4 #304 Audio Monitoring Kit
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe ASK-4 #304 Audio Monitoring Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

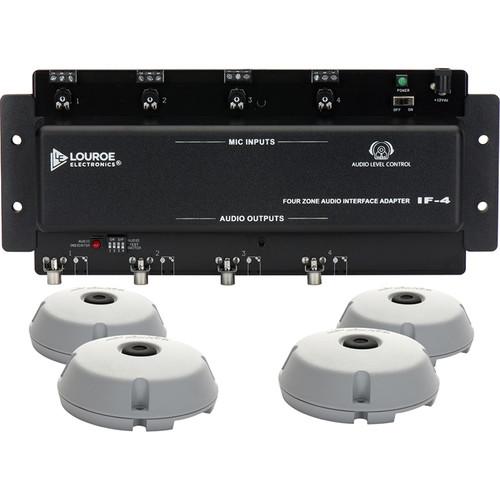

Product description The ASK-4 #304 Audio Monitoring Kit from Louroe Electronics is a 4-zone audio monitoring system designed for making a direct connection to a DVR, PC soundcard, or IP camera. This kit consists of 4 Verifact A Microphones, 4 Single RCA Cables, an IF-4 Audio Interface Adapter, an AD-1 Plug-in Switching AC Adapter, and an RCA to 3.5 Mono Adapter for use with a DVR, IP camera, etc. The IF-4 Audio Interface Adapter is designed for connecting up to 4 Louroe microphones to a DVR or other recording devices that have multiple audio inputs. The units contain RCA outputs (for each microphone) for accommodating either an RCA input or a 3.5mm (mini jack) input connection to a DVR, an IP network camera, or a video server using the connector cables supplied. The IF-4 Audio Interface Adapter provides phantom power to the microphones, and it contains a variable gain adjust per output to prevent the overdriving of the DVR. The Audio Test Switch’s function is to indicate the presence of audio and to assure that the IF-4 Audio Interface Adapter is driving the audio signals into the input of the audio receiving device. The audio indicator LED illuminates when audio is present. The Verifact A Microphone is an omni-directional, low-impedance, electret condenser microphone with a built-in preamp for producing line level audio. It is housed in a high-impact ABS dome designed for ceiling or wall mounting. The normal pick-up pattern is approximately 15' (4.57m) from the microphone location towards all directions, or within a 30' (9.14m) diameter circle. The kit is suitable for use in convenience stores, fast food restaurants, booking rooms, interrogation rooms, day care centers, sleep disorder centers, therapy labs, cashier booths, gas stations, or anyplace where CCTV cameras are installed. Note: Wiring Requirements: 2-conductor shielded cable, 22 gauge with a 24 gauge drain wire. Unshielded cables are not suitable for audio systems.
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped. - IF-4 Interface Adapter
-
- Contains terminal blocks from microphone connections
- Supplies 12VDC power to the microphones’ dual output (per microphone) to accommodate either an RCA input or a 3.5mm input connection to a DVR, IP network camera, etc.
- Gain adjust (each output) to prevent overdriving or underdriving of the audio signal
- Audio test switch with indicator LED to assure the presence of audio
- Verifact A Microphone
-
- Sturdy ABS housing
- Microphone can pick up normal sounds up to 15' (4.57m) away
- May be located up to 1,000' (305m) from base station
- Phantom powered from Louroe Base Station (sold separately)
- Microphone preamp contains sensitivity switch for lowering gain
UPC: 785583002923 In the Box Louroe ASK-4 #304 Audio Monitoring Kit IF-4 Interface Adapter 4 x Verifact A Microphone AD-1 Plug-in Switching AC Adapter 4 x Single RCA Cable RCA to 3.5 Mono Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe ASK-4 #304 Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-292 Specs | | | Input | 3-Pin Terminal Block: Line level (0 dB @ 1 kΩ) | | Audio Input Impedance | 5 kΩ | | Audio Output Impedance | 600 Ω | | Output Gain | Audio: +10 dB | | Power Requirements | +12 VDC, 500 mA | | Dimensions (L x W x H) | 11.50 x 4.75 x 1.25" (29.21 x 12.07 x 3.18 cm) | | Weight | 2.0 lb (0.9 Kg) | | | | Type | Electret condenser microphone | | Output | Line level (0 dB @ 1 kΩ), unbalanced | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC, 500 mA | | Dimensions (ØxH) | 4.0 x 1.5" (10.2 x 3.8 cm) | | | | Input | 100 to 240 VAC, 60 Hz, 0.3 A | | Output | 12 VDC, 500 mA | | | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 6.0" |
