User Manual for Louroe ASK-4 # 370 Audio Monitoring Kit Click to enlarge the picture
Contents of the user manual for the Louroe ASK-4 # 370 Audio Monitoring
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
 |
User manual for the Louroe ASK-4 # 370 Audio Monitoring contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

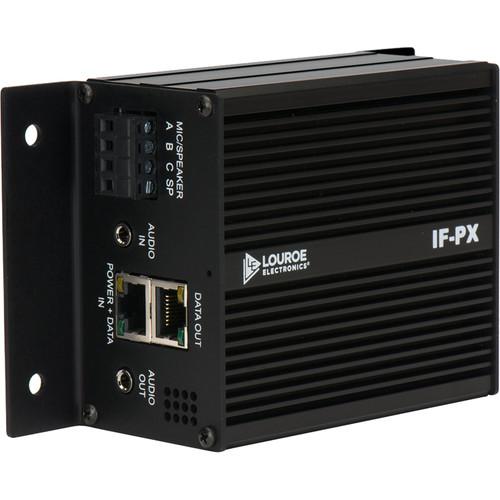

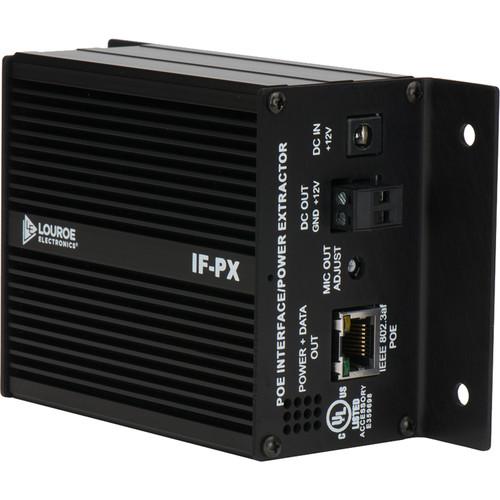

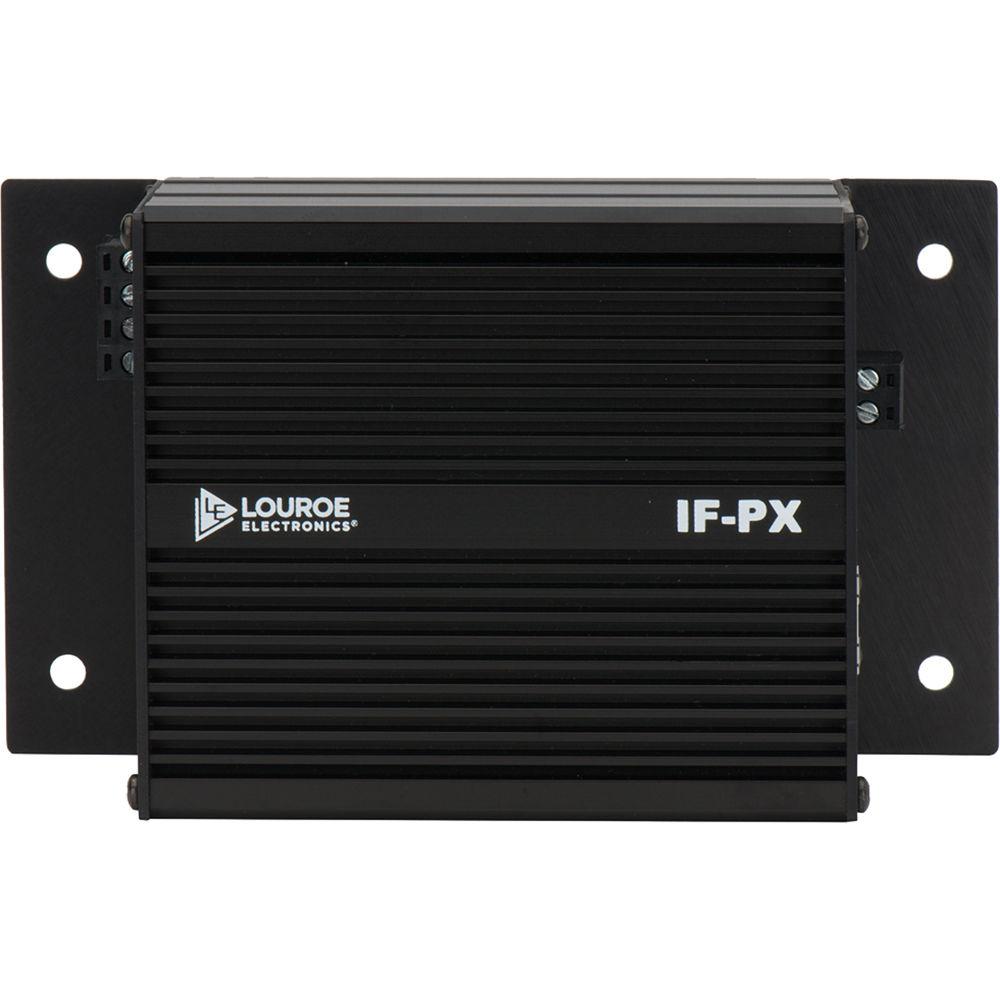

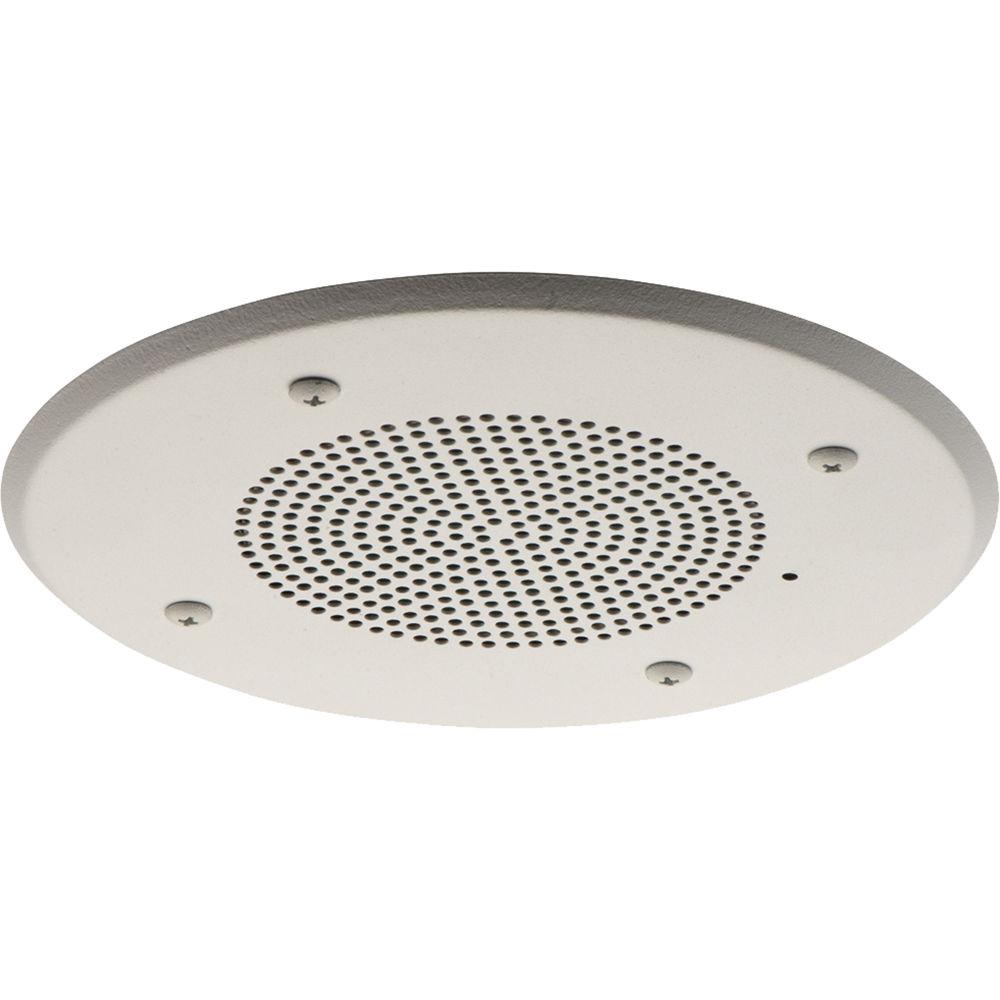

Product description The ASK-4 # 370 Audio Monitoring Kit from Louroe Electronics consists of an IF-PX POE Interface / Power Extractor and AOPSP-CF Ceiling Mount Bi-Directional Speakerphone. The IF-PX POE Interface / Power Extractor is a single-zone POE in-line interface designed to extract power from an Ethernet connection to power Louroe microphones, speaker / microphones, and external devices that require a 12VDC supply such as encoders and non PoE IP cameras. Terminal blocks are employed to receive signal wiring from a Louroe Verifact Microphone or the AOP-SP Speaker / Microphone. Two 3.5mm stereo male to male audio cables are included to connect this unit to an IP camera or encoder. Outputs for both PoE (power+data) and non-PoE (data only) cameras and encoders are included. The AOP-SP-CF Ceiling Mount Bi-Directional Speakerphone is designed to interface with various modes of audio / video transmission systems. It provides bi-directional audio with the receiving source (DVR, PC soundcard, IP network cameras and video servers with audio, etc.). It features a built-in electret condenser microphone and a 4” (10.16cm) speaker along with a control potentiometer for adjusting the sensitivity of both transmitted and received audio. It is suitable for flush mounting to the ceiling. Note: Wiring Requirements: 3-conductor wire consisting of 2 conductors shielded, 20 gauge (with 22 gauge drain) and 1 conductor unshielded, (20 gauge) all in the same jacket.
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped. - POE Interface Extractor
-
- Audio output has variable gain control
- Supports both 1- and 2-way audio
- Supports both Mode A and Mode B power options of IEEE802.3af
- Built-in thermal, overload, and short-circuit protection
- AOP-SP-CF Ceiling Mount Bi-Directional Speakerphone
-
- Omni-directional microphone and 4" (10.16cm) speaker
- Controls for adjusting volume of both listen and talkback functions
- Hands-free operation for talk / listen

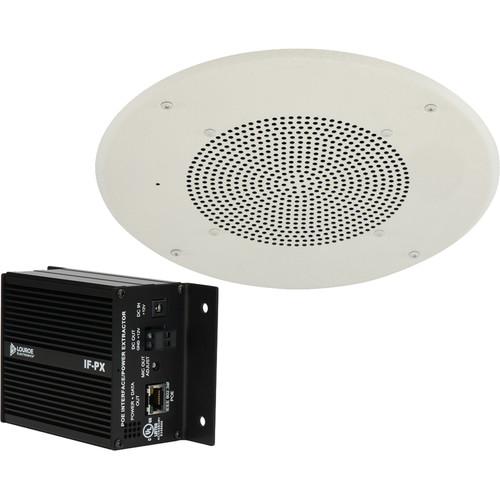

In the Box Louroe ASK-4 # 370 Audio Monitoring Kit IF-PX POE Interface / Power Extractor AOPSP-CF Ceiling Mount Bi-Directional Speakerphone 2 x 3.5mm Stereo Male to Male Audio Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe ASK-4 # 370 Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-347 Specs | | | Ethernet Connector | RJ45 CAT5 input and output jack | | Voltage Input | 36 to 57 V | | DC Output | 12 VDC, 800 mA | | Power Supply | 12 VDC, 2 A, external power supply (sold separately) | | Operating Temperature | -4 to 158°F (-20 to 70°C) | | Connectors | RJ-45, DC jack, terminal block for microphone / speaker
3.5 mm stereo jacks for audio in/out | | Input & Output | Audio: Line level | | Output Gain | Audio: Up to +15 dB | | Material | Black anodized Al 14 Ga | | Dimensions (L x W x H) | 6.00 x 3.50 x 2.13" (15.24 x 8.89 x 5.41 cm) | | Weight | 13.0 oz (368.5 g) | | | | Type | Electret condenser microphone | | Output | Audio: Line level (0 dB @ 600 Ω), unbalanced | | Microphone Sensitivity | -45 dB | | Frequency Response | 40 Hz to 10 kHz | | Input Impedance | Audio: 600 Ω | | | | Power Output | 1.5 W | | Impedance | 8 Ω | | Magnet | 3.00 oz (85.05 g), ceramic | | Size | 4.0" (10.2 cm) | | Current Drain | 200 mA | | Supply Voltage | 12 VDC | | Weight | 2.5 lb ( 1.1 kg) | | | | Dimensions | Grill:12.88" (32.71 cm)
Backbox:
Inside: 9.75" (24.70 cm)
Flange: 12.31" (31.30 cm)
Depth: 4.50" (11.40 cm) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 8.0" |
