User Manual for Louroe ASK-4 #431 Audio Monitoring Kit Click to enlarge the picture
Contents of the user manual for the Louroe ASK-4 #431 Audio Monitoring Kit
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe ASK-4 #431 Audio Monitoring Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

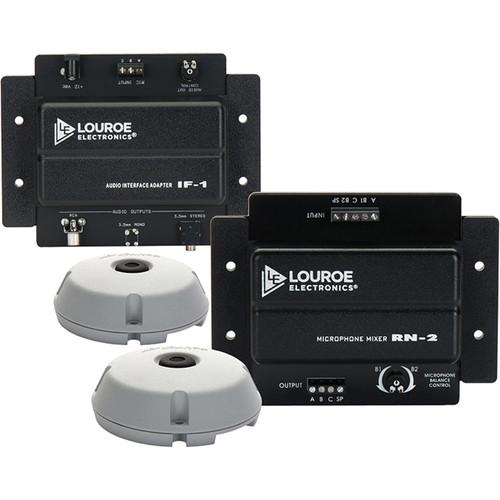

Product description The ASK-4 #431 Audio Monitoring Kit from Louroe Electronics is a single-zone audio monitoring system that consists of a IF-1 Audio Interface Adapter, a RN-2 Audio Mixer, 2 Verifact A Microphones, a Single RCA Cable for connecting to a DVR / VCR, an 3.5mm Stereo Cable for connecting to a Sound Card, IP Network Camera or Video Server with stereo audio input, an RCA to 3.5mm Mono Adapter for connecting to an IP Camera with a 3.5mm mono audio input, and an AD-1 Plug-in Switching AC Adapter.The IF-1 Audio Interface Adapter serves as an interconnection device between a Louroe electret condenser microphone and a DVR / VCR, computer sound card, or IP network cameras with audio and video servers with audio. Input side contains a terminal block to receive wiring from the microphone and a jack for 12VDC power input. The output side contains 2 types of connections to accommodate almost all recording device audio inputs. It consists of a RCA output for connecting to a DVR / VCR with an RCA input and a 3.5mm (mini jack) stereo output for connecting to a computer soundcard or DVR with a 3.5mm stereo audio input. The IF-1 Interface Adapter also has a variable gain adjust to prevent overdriving of the audio signal. A 12VDC power is included for sending phantom power to the microphone.The RN-2 Audio Mixer is used for combining 2 Louroe microphones or speaker / microphones for the purpose of expanding the area to be audio monitored. It has an input side (terminal block) for accepting the 2 microphones and an output side (terminal block) for home running back to a Louroe audio base station or to other audio receiving devices. The RN-2 Audio Mixer contains a potentiometer for microphone balance control. It receives phantom power from the Louroe base station.The Verifact A Microphone is an omni-directional, low impedance, electret condenser microphone with a built-in preamp for producing line level audio. It is housed in a high impact ABS dome designed for ceiling or wall mounting. The normal pick-up pattern is approximately 15' (4.57m) from the microphone location towards all directions, or within 30' (9.14m) diameter circle. It is suitable for use in convenience stores, fast food restaurants, booking rooms, interrogation rooms, day care centers, sleep disorder centers, therapy labs, cashier booths, gas stations, or anyplace where CCTV cameras are installed. Note: The RN-2 microphone mixer simply combines the audio signals picked up by the 2 microphones and does not function as a 2-channel audio base station.
Wiring requirements: 2 conductor shielded cable, 22 gauge with a 24 gauge drain wire. Unshielded cable is not suitable for audio systems.
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of audio monitoring on the premises. A decal notice is included with each microphone shipped. - IF-1 Interface Adapter
-
- Receives wiring from microphone
- Provides phantom power to the microphone
- Outputs to DVR / VCR or computer sound card
- Variable gain adjustment for input to sound card
- RN-2 Audio Mixer
-
- Allows for zone expansion by combining 2 microphones or 2 speaker / microphones
- Phantom powered from the Louroe Base Station
- Potentiometer for adjusting microphone balance
- Mounting holes for securing to wall or flat surface
- Verifact A Microphone
-
- Sturdy ABS housing
- Microphone can pick up normal sounds up to 15' (4.57m) away
- May be located up to 1,000' (305m) from base station
- Phantom powered from Louroe Base Station
- Microphone preamp contains sensitivity switch for lowering gain
UPC: 785583003685 In the Box Louroe ASK-4 #431 Audio Monitoring Kit IF-1 Interface Adapter RN-2 Microphone Mixer 2 x Verifact A Microphone Single RCA Cable 3.5mm Stereo Cable RCA to 3.5mm Mono Adapter AD-1 Plug-in Switching AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe ASK-4 #431 Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-368 Specs | | | Input Impedance | 1 kΩ | | Output Gain | Line level (0 dB @ 600 Ω) | | Power Supply | +12 dB | | Frequency Response | USA: 110 V/12 VDC, 500 mA
Outside USA: 100 to 240 V/12 VDC, 1,000 mA | | Dimensions (L x W x H) | 6.00 x 4.00 x 1.25" (15.60 x 11.70 x 3.20 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Input Impedance | 600 Ω | | Output Impedance | 600 Ω | | Output Gain | +5 dB | | Connections | Input / Output: Terminal block | | Dimensions (L x W x H) | 6.13 x 4.00 x 1.88" (15.57 x 10.16 x 4.78 cm) | | Weight | 5.5 oz (156.0 g) | | | | Type | Electret condenser microphone | | Output | Line level (0 dB @ 1,000 Ω) | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC, 500 mA | | Dimensions (ØxH) | 4.0 x 1.5" (10.2 x 3.8 cm) | | | | Input | 100 to 240 VAC, 60 Hz, 0.3 A | | Output | 12 VDC, 500 mA | | | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 6.0" |
