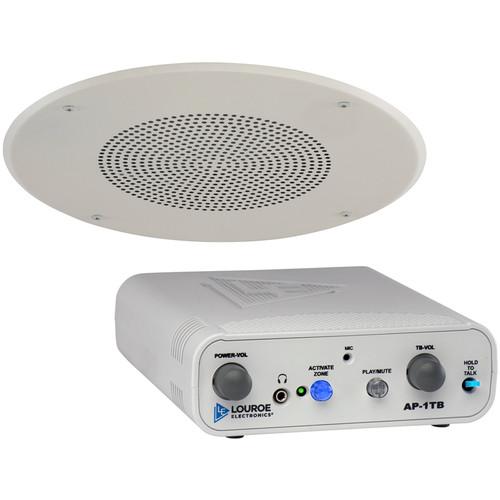

Product description The ASK-4 #501-TLI-CF Audio Monitoring Kit from Louroe Electronics is a single-zone audio monitoring system with bi-directional audio capabilities. It consists of a TLI-CF Speaker / Microphone, an AP-1 TB Audio Base Station, an AD-1 Plug-in Switching AC Adapter, and a Dual RCA Connector Cable.The AP-1TB Audio Monitoring Base Station is a single-zone non-alarming unit with listen and talkback functionality. As a system (with a Louroe speaker / microphone), it provides live audio with a built-in 4" (10.16cm) speaker and features a built-in microphone for talkback to the remote area. The distance between AP-1TB base station and speaker / microphone can be up to 1,000' (305m).The TLI-CF Speaker / Microphone is a 2-way talk / listen unit that can be used with various Louroe engineered systems for audio monitoring applications. It features a microphone and an 8” (20.32cm) speaker within a single housing. The microphone is an electret condenser type with pre-amp, omni-directional pattern and produces line level output. This unit comes with an 8W speaker with a 70V transformer. The speaker / microphone unit is designed to be flush mounted to a ceiling. It is suitable for use in hospital therapy labs observation rooms, cardio cath labs, corporate training sessions, lobby entrances, and municipal buildings.The UL listed AC Adapter supplies 12VDC and 500mA to the AP-1TB Base Station and the TLI-CF Speaker / Microphone. The Dual RCA Connector Cable is provided for making an input/output connection to a DVR / VCR for audio recording and playback. Note: Wire Type: West Penn 356 or equivalent
4-conductor cable consisting of 2 conductors shielded, 20 gauge with 22 gauge drain (for microphone connection) and 2 conductors unshielded, 18 gauge (for speaker connection), all in the same jacket.
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped. - TLI-CF Speaker / Microphone
-
- Omni-directional microphone and 8” (20.32cm) speaker
- Distance between AP-1TB base station and speaker / microphone can be up to 1,000’ (305m)
- High sensitivity to low sound pressure
- Moisture-resistant resin-impregnated cloth speaker cone
- Microphone pre-amp contains a sensitivity switch for lowering gain
UPC: 785583003715 In the Box Louroe ASK-4 #501-TLI-CF Audio Monitoring Kit AP-1TB Audio Monitoring Base Station Ceiling Flush-Mount 8" Speaker and Microphone AD-1 Plug-in Switching AC Adapter Dual RCA Connector Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe ASK-4 #501-TLI-CF Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-371 Specs | | | Input Sensitivity | Remote Microphone: 0.78 Vrms
Talkback Microphone: -45 dB | | Output Power | Monitored: 1 W @ 8 Ω
Talkback: 1 W into 70 V line | | Line Output Impedance | 600 Ω | | Audio Input Impedance | 10 kΩ | | Frequency Response | 100 Hz to 10 kHz | | Headphone Impedance | 8 to 600 Ω | | Power Input | 12 VDC, 500 mA | | Dimensions (L x W x H) | 7.90 x 6.60 x 2.40" (20.07 x 16.76 x 6.01 cm) | | Weight | 2.2 lb (1.0 kg) | | | | Power Rating | 15 W | | Input | 70 V constant | | Frequency Response | 80 Hz to 8 kHz | | Impedance | Voice Coil: 8 Ω | | | | Type | Electret condenser microphone | | Output | Line level (0 dB @ 1 kΩ) | | Output Impedance | 600 Ω unbalanced, microphone only | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | | | Speaker Size | 8.00" (20.32 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Input | 100 to 240 VAC, 60 Hz, 0.3 A | | Output | 12 VDC, 500 mA | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 17.8 x 16.3 x 10.4" |
