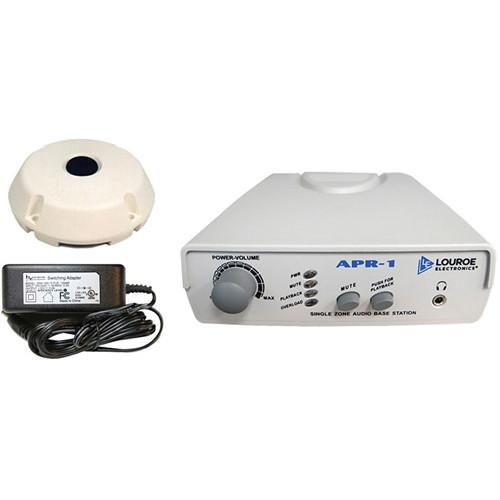

Product description The ASK4-101 Audio Monitoring Kit from Louroe Electronics is a single zone audio monitoring system designed for audio monitoring and interfacing with DVRs, VCRs, or other audio devices that accept line level input. This kit consists of a Verifact A Microphone (LE-070), a Model APR-1 Desktop Base Station (LE-146), an AD-1 12 VDC Power Supply (LE-242), and a dual RCA Cable for connecting to DVRs/VCRs.
The Verifact Model A Microphone is an omnidirectional, low impedance, electret condenser microphone with a built-in preamp for producing line level output. It is housed in a high-impact ABS dome designed for ceiling or wall mounting. The normal pick-up pattern is approximately 15' from the microphone location towards all directions or within a 30' diameter circle.
The APR-1 Desktop Base Station is a single zone, non-alarming audio monitoring base station. As a system (with the Louroe microphone), it delivers one-way live audio with the built-in 3" speaker. It contains input/output jacks for connecting to a DVR/VCR that accepts line level input for audio recording and playback. Other features include adjustable volume control and a 3.5mm headphone jack. A mute switch is also provided to mute the audio heard on the speaker of the headset. The distance between the APR-1 Base Station and the microphone can be up to 1000'. Note: The APR-1 Base Station can be rack mounted using the separately sold RM-1935/APR-1 19" Rack Mount Kit.
Wiring Requirements: 2 Conductor shielded cable, 22 gauge with a 24 gauge drain wire. Unshielded cable is not satisfactory for audio systems. - The included Omni-Directional Verifact A Microphone can pick up normal sound 15' away or within a 30' diameter circle
- Microphone can be mounted up to 1,000' from the APR-1 Base Station
- Audio input / output jacks for recording and playback from a DVR / VCR
- 3" speaker for monitoring live audio and playback from a DVR or VCR
- 3.5mm headphone jack for private listening
- Microphone preamp contains sensitivity switch for lowering gain
- Microphone has sturdy ABS housing and is phantom powered from the Louroe Base Station
- Designed for Various Applications: convenience stores, fast food restaurants, interrogation rooms, child abuse interviews, sleep disorder centers, speech therapy labs, cashier booths, detention centers, medical treatment rooms, car dealership sales contact rooms, and softcount rooms and cash cages in casinos
UPC: 785583000158 In the Box Louroe ASK4-101 Audio Monitoring Kit Verifact A Microphone Model APR-1 Audio Base Station AD-1 12VDC Power Supply Dual RCA Cable for Connecting to VCR / DVR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe ASK4-101 Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-015 Specs | | | Type | Electret Condenser | | Output | Line level (0 dB at 1 kOhm), unbalanced | | Frequency Response | 40 Hz to 15 kHz ±1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC, 500 mA | | Dimensions (Ø x H) | 4.0 x 1.5" / 10.2 x 3.8 cm | | | | Type | APR-1 Audio Base Station | | Input Sensitivity | Microphone: 0.78 Vrms | | Output Power | 1 W at 8 Ω | | Line Output Impedance | Audio: 600 Ω or higher | | Audio Input Impedance | 10 kΩ | | Frequency Response | 100 Hz to 10 kHz | | Headphone Impedance | 8 to 600 Ω | | Power Supply | 12 VDC, 500 mA | | Dimensions (L x W x H) | 8.25 x 5.75 x 1.38" / 20.96 x 14.60 x 3.51 cm | | Weight | 1.50 lb / 0.68 kg | | | | Type | AD-1 12 VDC Power Supply | | Input | 100 to 240 VAC, 60 Hz, 0.3 A | | Output | 12 VDC, 500 mA
UL listed | | | | Package Weight | 2.74 lb | | Box Dimensions (LxWxH) | 11.75 x 8.4 x 5.55" |
