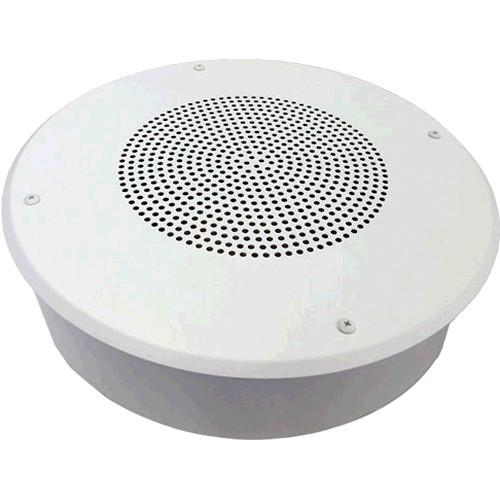

User Manual for Louroe Ceiling Surface-Mount 8" Speaker and Microphone Click to enlarge the picture
Contents of the user manual for the Louroe Ceiling Surface-Mount 8" Speaker and
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe Ceiling Surface-Mount 8" Speaker and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Ceiling Surface-Mount 8" Speaker and Microphone from Louroe Electronics is a two-way talk/listen speaker and microphone. It is designed for use between a Louroe base station and a remote zone such as a lobby entrance, observation room, or municipal building. The device consists of an electret condenser microphone and an 8" speaker, all within one housing.The integrated microphone produces line level output and an omni-directional audio pattern. Furthermore, the microphone pre-amp contains a sensitivity switch for lowering gain. The device's housing is moisture resistant and can be surface-mounted to a ceiling for inconspicuous placement. - Hands-free listen and talkback capabilities with Louroe Base Station
- Omni-directional microphone and 8" speaker
- Can be installed up to 1,000' from the Louroe base station
- High sensitivity to low sound pressure
- Moisture-resistant, resin impregnated cloth speaker cone
- Microphone pre-amp contains a sensitivity switch for lowering gain
- Designed for surface-mounting on a ceiling with the included mounting ring and grill
- Applications include observation rooms, corporate training sessions, and lobby entrances
In the Box Louroe Ceiling Surface-Mount 8" Speaker and Microphone Grill & Mounting Ring Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe Ceiling Surface-Mount 8" Speaker and Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-226 Specs | | | Sensitivity | -45 dBV / PA | | Frequency Response | 50 Hz to 15 KHz | | Output | Line level (0 dBV, 600 Ohms @ 1 kHz) | | Current Drain | 10 mA | | Supply Voltage | 12 VDC | | | | Power Rating | 15 W | | Input | 70.7 V constant | | Frequency Response | 65 Hz to 17 kHz | | Voice Coil | Impedance: 8 Ohms | | Speaker Size | 8.0" / 20.3 cm | | | | Faceplate | Ø12.9 x 2.8" / Ø32.7 x 7.0 cm | | Weight | 2 lb 10 oz (1.2 kg) | | | | Package Weight | 6.07 lb | | Box Dimensions (LxWxH) | 15.0 x 15.0 x 6.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
