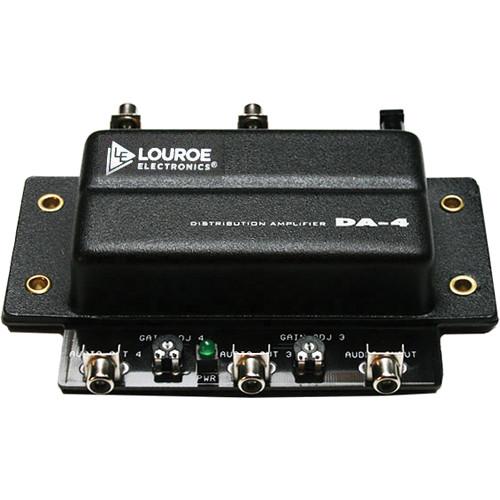

User Manual for Louroe DA-4 Audio Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Louroe DA-4 Audio Distribution Amplifier
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe DA-4 Audio Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics DA-4 Audio Distribution Amplifier features 1 audio input and 4 audio outputs. It receives line level audio signals from the Louroe microphone and distributes it to up to 4 sources such as VCR, DVR, CCTV monitors with amplifiers, or other audio devices that accept line level input (0 dB @ 600Ω). Each output has a gain adjust potentiometer for correcting the audio level. Maximum gain when potentiometer is fully engaged is 15 dB. - 1 audio input and 4 audio outputs (RCA)
- Power jack for applying 12VDC power
- Gain adjust for each audio output
- Application: For distributing audio to multiple devices (up to 4) such as DVRs, VCRs, CCTV monitors with an amplifier or any combination of the above including other audio receiving devices that accept line level input
UPC: 785583002244 In the Box Louroe DA-4 Audio Distribution Amplifier RCA Connector Cable 12VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe DA-4 Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-224 Specs | Audio Input | 1 x RCA | | Audio Output | 4 x RCA | | Maximum Gain | 15 dB (per output) | | Output | Line level (0 dB @ 1 kW) | | Power Input | 12 VDC, 500 mA | | Wiring | Requirements: 2 Conductor shielded cable, 22 gauge with a 24 gauge drain wire Unshielded cable is not satisfactory for audio systems | | Dimensions (L x W x H) | 6.13 x 4.63 x 1.88" (155.70 x 117.60 x 47.75 mm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.9 x 5.4 x 3.3" |
