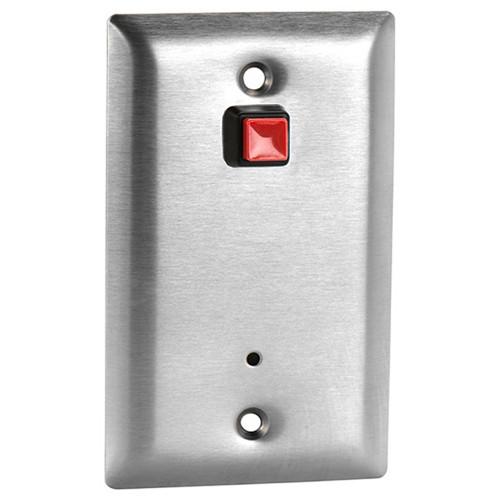

User Manual for Louroe DCS-1 Remote Call Station Click to enlarge the picture
Contents of the user manual for the Louroe DCS-1 Remote Call Station
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe DCS-1 Remote Call Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics DCS-1 Remote Call Station comes with a call or panic button and an electret condenser microphone mounted to a single gang stainless steel face plate that fits into a standard single gang electrical box sold separately. The base station can be activated either by pushing the call button (containing a 3kHz oscillator) or by sound activation picked up by the microphone when it exceeds the threshold level set at the base station. The microphone allows the security personnel to monitor audio at the remote area. Moreover, it easily fits a standard single gang housing sold separately for flush or surface mounting. This unit is compatible solely with ALA-4/8 and DG-12II/DG-25III alarming base stations. Note: The DCS-1 Remote Call Station is intended for use with only the Louroe sound activated base stations (ALA and DG series). When this equipment is used as part of an audio monitoring system, it is legally mandatory to give a public notice regarding the audio monitoring on the premises. A decal notice is included with each microphone shipped. - Contains a 3kHz oscillator and a microphone to trigger the base station
- 3kHz oscillator for pushbutton activation
- Stainless steel faceplate
- Fits in a standard single gang electrical box for flush or surface mounting
- Suitable in parking structures, secured walkways, stairwells, elevator cabs, elevator lobbies, and detention centers
In the Box Louroe DCS-1 Remote Call Station Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe DCS-1 Remote Call Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-119 Specs | | | Output | Line Level (0 dB at 1000 Ω) | | Sensitivity | -65 dB + / - 4 dB | | Frequency Response | 40 Hz to 15 kHz | | Output Impedance | 600 Ω unbalanced | | Current Drain | 4 mA | | Wiring | Requirement: 2 conductor shielded cable, 22 gauge with a 24 gauge drain wire Unshielded cable is not satisfactory for audio systems. | | | | Output | 3 Vrms into 10 KΩ load at 3 kHz | | Supply Voltage | 12 VDC | | Tone | Output: 3 kHz | | Dimensions (H x W) | Faceplate: 4.50 x 2.75" (11.43 x 6.99 cm) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
