User Manual for Louroe DG-12II Sound Activated Base Station Click to enlarge the picture
Contents of the user manual for the Louroe DG-12II Sound Activated Base Station
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe DG-12II Sound Activated Base Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

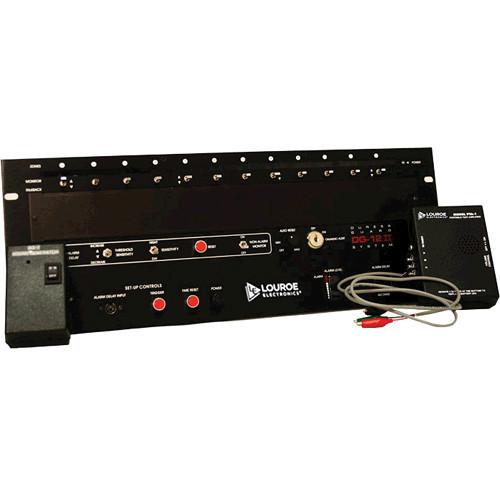

Product description The Louroe DG-12II Sound Activated Base Station is designed to offer sound activated audio monitoring. When combined with the companion unit DG-MA (listen / talkback amplifier) and interfaced with remote speaker / microphones, this 12-zone alarming base station offers a sound activated duress audio system with 2-way communication. Each zone has a variable threshold level based on frequency and sound pressure, and a variable alarm delay (from 0.1 to 3.2 sec) that can be set by using the built-in tester (included) for alarm audio and time delay.The time delay feature is effective in reducing false alarms. The DG-12II Sound Activated Base Station is supplied with 12 zone cards. When any sound or disturbance occurs below the preset threshold level, the nearest microphone detects it and identifies the zone with a lighted LED that blinks green. If the sound increases, the LED intensifies to solid green in color. If it exceeds the preset threshold, the zone goes into alarm, with the zone LED changing to red, along with a 3-sec beep. A relay contact closes to activate the camera or other annunciation. You can communicate with the people working at the base station with a hand-held microphone (provided) that is connected to the companion DG-MA listen / talkback amplifier. Also, you can talk and listen with the remote station by pressing the zone switch. Zone alarm can be cancelled by automatic or manual reset feature. Automatic reset can run between 3 seconds and 3 minutes. Microphones (A, B, C, D, D-V, E, K and L-DT) and all speaker/microphones (models TLI, TLM, TLMC, TLO, TLSP and TLSP-PB) are compatible with the DG-12II Sound Activated Base Station. - 19.00" (48.26cm) rack mountable with 7" (17.78cm) height
- Variable threshold level control based on frequency and sound pressure
- A 3 sec audio alert tone once the zone goes into alarm
- Green when monitoring, red when in alarm
- LED zone alarm identification
- Variable alarm delay control (from 0.1 to 3.2 sec)
- NO / NC relay contacts for each zone for activating camera or other annunciations
- 2 threshold level settings - high (night) and low (day)
- Day and night threshold sensitivity switch
- Automatic or manual reset for alarm cancellation: auto reset variable from 3 sec to 3 minutes
- Built-in tester for alarm audio and time delay
- Zone expansion (for up to 6 microphones or speaker/microphones per zone using model MLA-6 Mixer)
- 3-position selector switch for monitor, off, and talkback with spring return to off
- Processes electret condenser
- Omni-directional microphones with a frequency response of 40 Hz to 15 kHz ± 1dB
- Suitable for use in applications such as: parking structures, correctional facilities, public access buildings, juvenile detention centers, elevator cabs, elevator lobbies, stairwells, and hallways
- Sports a black anodized finish
In the Box Louroe DG-12II Sound Activated Base Station Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe DG-12II Sound Activated Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-065 Specs | Power Requirements | 12 VDC at 4 mA (for microphone) | | Input Sensitivity | -20 dB (at alarm frequency) | | Output Frequency | 100 Hz to 10 kHz | | Relay Contacts | 0.5 A at 125 VAC | | Alarm Duration | 3 sec | | Wiring | Requirements:
For 1-way:
2 Conductor shielded cable, 22 gauge with a 24 gauge drain wire
For 2-way:
4 Conductor consisting of:
2 Conductor shielded, 20 gauge with 22 gauge drain (microphone connection)
2 Conductor unshielded, 18 gauge (speaker connection) Unshielded cable is not satisfactory for audio systems. | | Power Consumption | 42 W (standby)
60 W (maximum) | | Input Impedance | Zone: 10 kW
Talkback: 10 kW | | Frequency Response | 100 Hz to 10 kHz | | Output Impedance | Talkback: 70 V line
Record: 10 kW
Headset: 8 to 600 W | | Power Supply | 120 VAC, 6 A, 60 Hz
15 VDC, 5 A | | Auto Reset | 3 sec to 3 minutes | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Dimensions (W x H x D) | 19.00 x 7.00 x 10.25" (48.26 x 17.78 x 26.04 cm) | | Weight | 17.50 lb (7.94 kg) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 13.0" |
