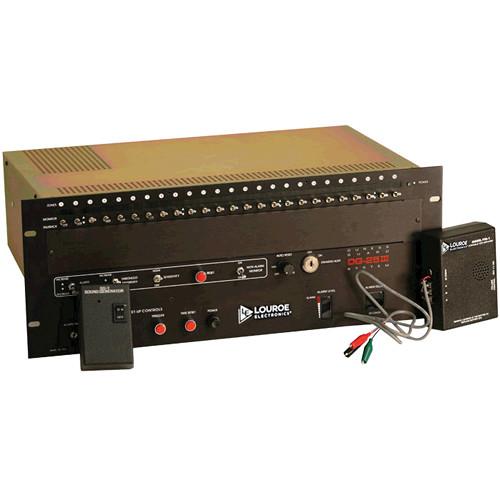

User Manual for Louroe DG-25 III 25-Zone Alarming Base Station Click to enlarge the picture
Contents of the user manual for the Louroe DG-25 III 25-Zone Alarming Base
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe DG-25 III 25-Zone Alarming Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics DG-25 III 25-Zone Alarming Base Station provides a sound-activated duress alarm system with two-way communication when combined with its companion unit DG-MA (listen/talkback amplifier) and interfaced with remote speaker/microphones. Each zone has a variable threshold level control, based on frequency and sound pressure level, and a variable alarm delay (from 0.1 to 3.2 seconds) that can be set by using the built-in tester (included) for alarm audio and time delay.
The time delay feature is effective in reducing false alarms. The DG-25 III Alarming Base Station is supplied with 25 zone cards. When a sound or disturbance occurs that is below the preset threshold level, the nearest microphone detects the disturbance and identifies the zone with a lighted LED that blinks green. When the sound increases, the LED intensifies to a solid green. If it exceeds the preset threshold, the zone goes into alarm, with the zone LED changing to red, along with a 3-second beep. A relay contact closes to activate a camera or other annunciation. The person at the remote station can communicate hands-free with personnel at the base station. The person at the DG-25III Base Station can talk and listen to the remote station by pressing the zone switch. Talkback to the remote station is with a hand-held microphone (provided) that is connected to the companion DG-MA Listen/Talkback Amplifier. Zone alarm can be cancelled by automatic or manual reset feature. Automatic re-set can run between 3 seconds and 3 minutes.
The DG-25 III Alarming Base Station can be cascaded up to 10 units for a total of 250 zones. All Louroe microphones (models A, B, C, D, D-V, E, K, and L-DT) and all speaker/microphones (models TLI, TLM, TLMC, TLO, TLSP, and TLSP-PB) are compatible with this base station. - Variable threshold level control, based on frequency and sound pressure
- Bi-color LED (each zone); green when monitoring, red when in alarm
- Variable alarm delay control (from 0.1 to 3.2 sec)
- NO/NC relay contacts for each zone for activating camera or other annunciations
- 2 Threshold Level Settings: High (day) and low (night)
- DAY and NIGHT threshold sensitivity switch
- Automatic or Manual Reset for Alarm Cancellation: Auto reset variable from 3 sec to 3 minute
- Built-in tester for alarm audio and time delay
- Zone expansion for up to 6 microphones or speaker / microphones per zone using the Model MLA-6 Mixer (sold separately)
- Applications: Parking structures, correctional facilities, public access buildings, juvenile detention centers, elevator cabs, elevator lobbies, stairwells, and hallways
In the Box Louroe DG-25 III 25-Zone Alarming Base Station Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe DG-25 III 25-Zone Alarming Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-066 Specs | Power Requirements | For Microphone: 12 VDC @ 4 mA | | Input Sensitivity | @ Alarm Frequency: -20 dB | | Output Frequency | Monitor: 100 Hz to 10 kHz | | Relay Contacts | 0.5 A @ 125 VAC | | Alarm Duration | 3 sec (tone) | | Power Consumption | 50 W (standby), 75 W (maximum) | | Wiring | 4 Conductors Consisting Of:
2 conductor shielded, 20 gauge with 22 gauge drain (microphone connection)
2 conductor unshielded, 18 gauge (speaker connection) | | Dimensions (W x H x D) | 19 x 7 x 13" (483 x 178 x 330 mm) | | Weight | 17.50 lb (7.93 kg) | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 13.0" |
