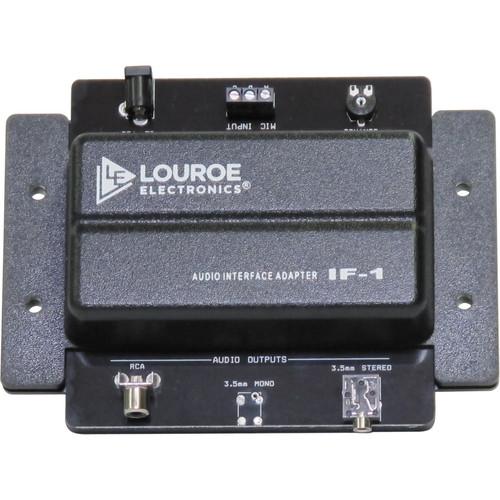

User Manual for Louroe IF-1 Audio Interface Adapter Click to enlarge the picture
Contents of the user manual for the Louroe IF-1 Audio Interface Adapter
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe IF-1 Audio Interface Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The IF-1 Audio Interface Adapter from Louroe Electronics is designed to connect a Louroe electret condenser microphone to a DVR, VCR, computer sound card, or any recording device with line level inputs. This interface adapter features an RCA and a 3.5mm (minijack) stereo output. This dual output functionality facilitates flexibility of connectivity, and enables you to send the audio signals from the microphones to devices with RCA or 3.5mm inputs. With variable gain adjust, you can vary the gain of the audio signal as per your requirements and prevent overdriving. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone. This disclaimer must be affixed, in plain view, at all entrances where the microphones are installed.Wiring Requirements: For Microphone Connection: 2-conductor 22-gauge shielded cable with a 24-gauge drain wire. - Acts as an interconnection device between a Louroe electret condenser microphone and a DVR, VCR, computer sound card, IP network camera or video server with audio, or any other recording device with line level inputs
- RCA and 3.5mm (minijack) stereo outputs
- Provides phantom power to the microphone
- Variable gain adjustment for input to sound card to prevent overdriving of the audio signal
- Is compatible with all Louroe microphones
UPC: 785583003289 In the Box Louroe IF-1 Audio Interface Adapter 12 VDC Power Supply RCA Cable 3.5mm Stereo Cable RCA to 3.5mm Mono Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe IF-1 Audio Interface Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-328 Specs | Input Impedance | 1 kOhms | | Output Signal | Line level (0 dB @ 600 ohms) | | Output Gain | Audio: +12 dB | | Power Supply | USA: 110 V/12 VDC, 500 mA
Outside USA: 100 to 240 V / 12 VDC, 1,000 mA | | Dimensions (L x W x H) | 6.00 x 4.00 x 1.25" (15.60 x 11.70 x 3.20 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 1.015 lb | | Box Dimensions (LxWxH) | 8.05 x 5.4 x 3.35" |
