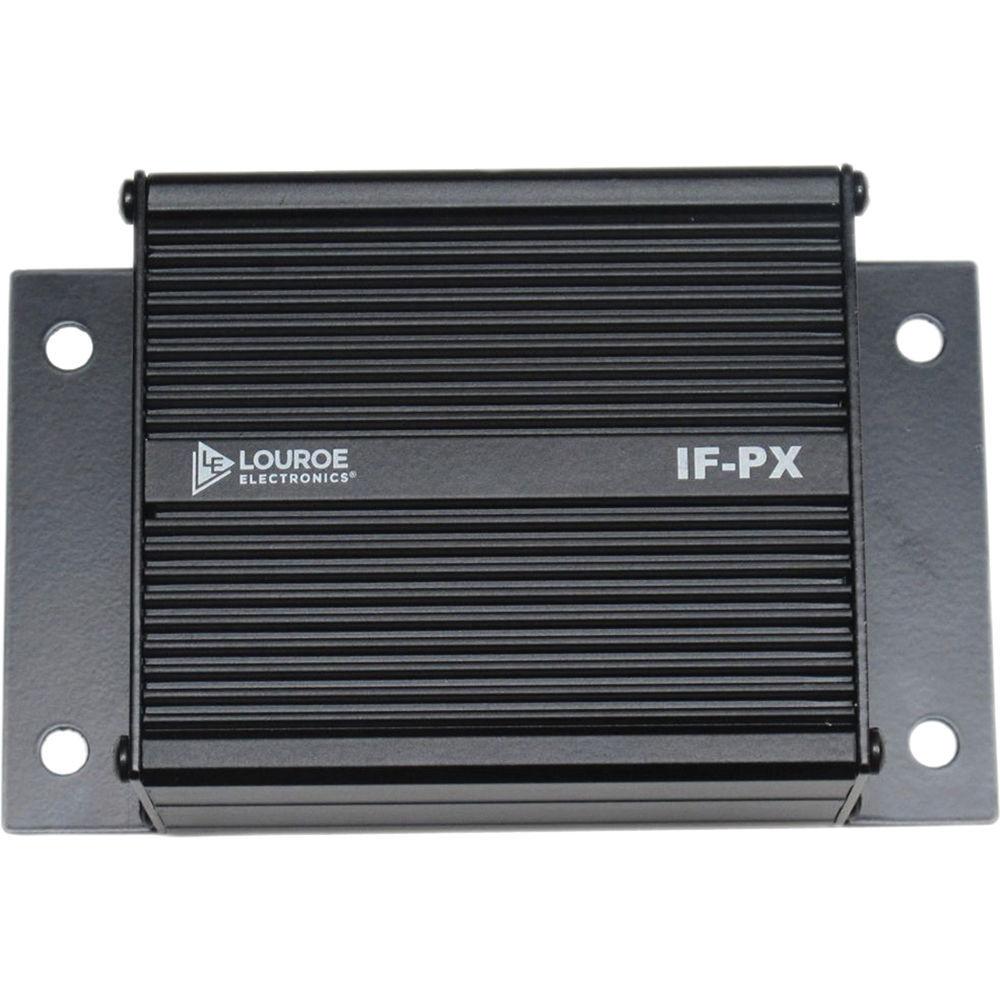

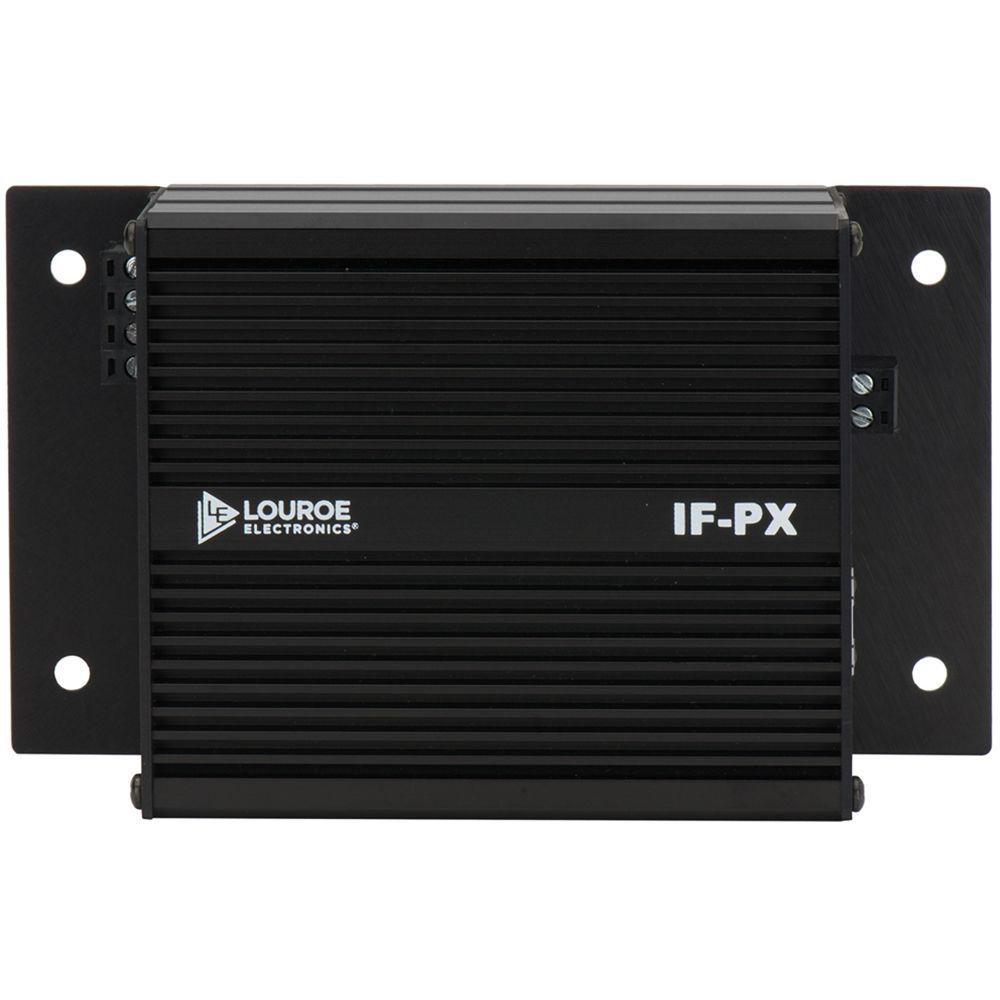

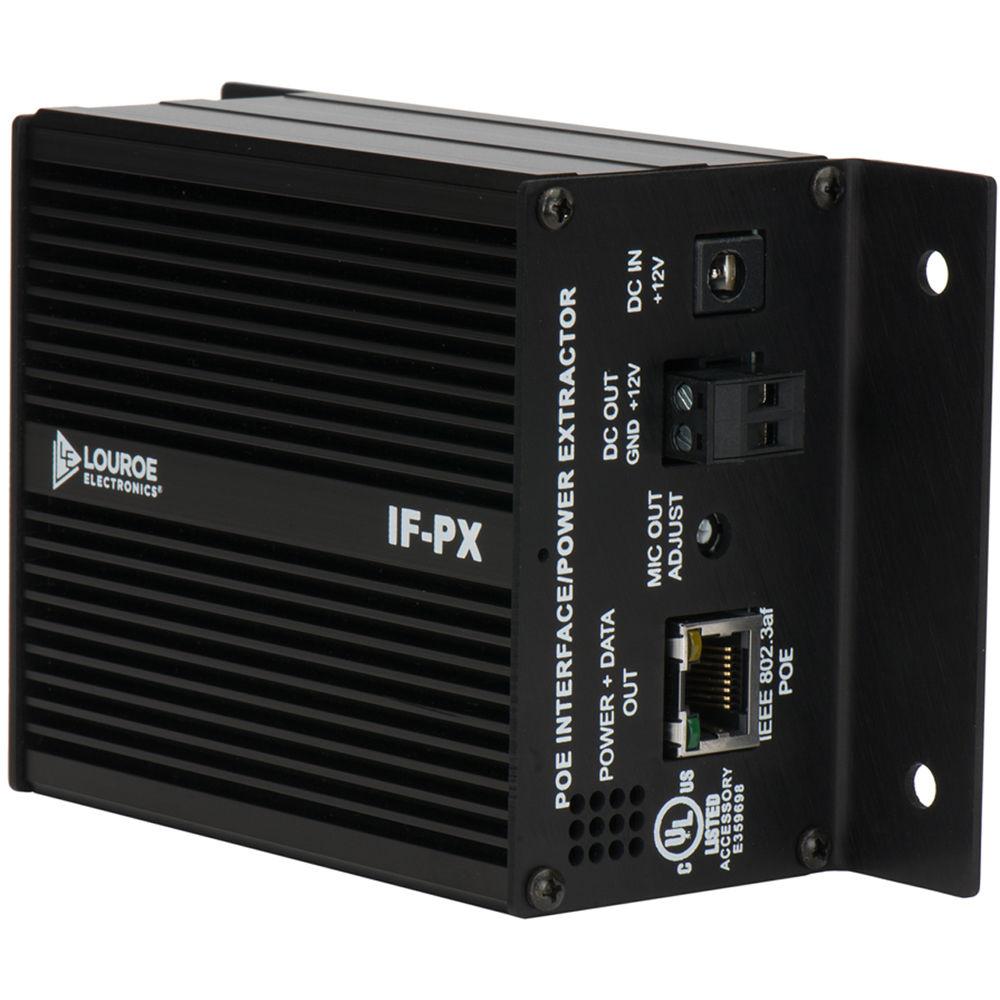

Product description The IF-PX PoE Interface and Power Extractor from Louroe is a single zone PoE extractor designed to extract power from an Ethernet connection to power Louroe's one-way and two-way audio solutions. It powers devices that need a 12 VDC power supply such as encoders, analog cameras, and non-PoE IP cameras. This device enables audio and video equipment to be powered by a single run of Cat 5, Cat 5e, or Cat 6 cable. It provides thermal overload and surge protection to ensure that your equipment remains functional. - Provides power to external Louroe microphones, AOP-SP speaker/microphones, and external devices that require a 12 VDC power supply such as encoders, analog cameras, and non-PoE IP cameras
- RJ45 connection for data output and RJ45 connection for data & power input
- Supports one-way and two-way audio
- Supports mode A and B PoE (802.3af) power options
- 802.3af PoE standard enables seamless integration with IP cameras
- A camera can be placed up to 328' away from unit
- Terminal block for 12 VDC power
- Optional power supply available separately
- Variable gain audio output potentiometer
- Compatible with most commercial grade line level unbalanced microphones
- Thermal overload protection
UPC: 785583005207 In the Box Louroe IF-PX PoE Interface and Power Extractor 2 x 3.5mm Stereo Male to 3.5mm Stereo Male Audio Cables 6' Audio Cables for Connections Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe IF-PX PoE Interface and Power Extractor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-520 Specs | Ethernet Connector | RJ45 Cat 5 Input and Output Jacks | | Connectors | RJ45
DC Jack
Terminal Block for Microphone/Speaker
2 x 3.5 mm Audio Input/Outputs | | Audio Input/Output | Line Level | | Output Gain | Audio Output Gain: Up to +15 dB | | Voltage Input | 36-57 V | | DC Output | 12 VDC, 800 mA | | Power Supply | 12 VDC, 2 A (Optional, Available Separately) | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Material | Black Anodized (14 Gauge) Aluminum | | Dimensions (L x W x H) | 6 x 3.5 x 2.13" / 152.4 x 88.9 x 54.1 mm | | Weight | 13 oz / 368.5 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.9 x 5.8 x 2.7" |
