User Manual for Louroe LE-025 ASK-4 Audio Monitoring Kit Click to enlarge the picture
Contents of the user manual for the Louroe LE-025 ASK-4 Audio Monitoring Kit
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe LE-025 ASK-4 Audio Monitoring Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

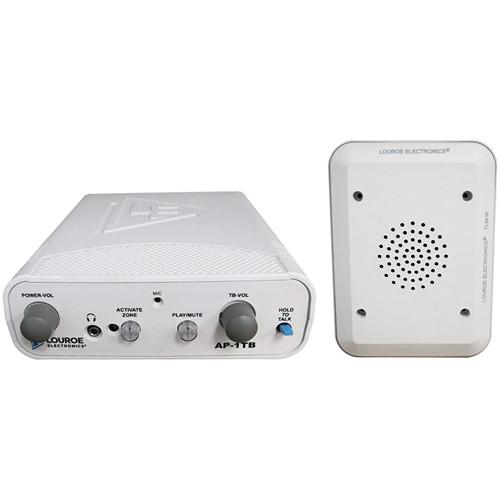

Product description The Louroe Electronics ASK-4 LE-025 Audio Monitoring Kit consists of the TLM-W 2-Way Speaker/Microphone, AP-1TB Single-Zone Non-Alarming Audio Monitoring Base Station, AD-1 12VDC Power Supply, and a dual RCA connector cable. It is a single-zone audio monitoring system with 2-way audio capability.
The TLM-W speaker unit is mounted at the location that requires audio monitoring. It features a built-in electret condenser microphone and a 4” speaker, and comes with a back box for surface mounting. Combined with the AP-1TB Single-Zone Non-Alarming Audio Monitoring Base Station, it enables you to establish bi-directional audio communication between locations up to 1000’ apart.
By activating the push to talk switch on the base station, you can speak into the unit’s built-in microphone to communicate with any authorized personnel or potential intruders at the site where the speaker unit is installed. The person can simply respond by talking into the speaker unit’s built-in microphone. The base station also features an input / output interface to transfer the audio to a DVR or VCR, facilitating audio recording and playback.
Both the units are powered via the AD-1 Plug-in Switching AC Adapter, and the Dual RCA Cable allows you to connect the base station to a DVR or VCR for recording and playback the audio at the speaker unit site. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone. This disclaimer must be affixed, in plain view, at all entrances where the microphones are installed.
Type of wires to be used
For Microphone Connection: 4-conductor with a drain wire (2-conductor shielded), 20 gauge with a 22 gauge drain wire
For Speaker Connection: 2-conductor twisted pair, unshielded, 18 gauge - 2-way talk / listen system
- Hands-free units with built-in microphone and speaker to listen and communicate with the person/s at the remote speaker / microphone location
- Input / output to DVR / VCR for recording and playback via dual RCA cable
- Volume control for both listen in and talkback
- Speaker / microphone unit may be mounted up to 1,000' from base station
- Included back box allow for surface mounting
UPC: 785583000257 In the Box Louroe LE-025 ASK-4 Audio Monitoring Kit AP-1TB Audio Monitoring Base Station ysrxscrsedbqaauasxxdssu TLM-W Two-Way Speaker with Microphone (White) AD-1 Plug-In Switching AC Adapter Dual RCA Connector Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-025 ASK-4 Audio Monitoring Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-025 Specs | Model | AP-1TB Single Zone Base Station | | Input Sensitivity | From Remote Microphone: 0.78 Vrms
Talkback Microphone: -45 dB | | Speaker | 4.00" (10.16 cm) | | Power Output | Monitor: 1 W @ 8 Ω
Talkback: 1 W into 70 V line | | Impedance | Audio Line Output: 600 Ω
Audio Input: 10 kΩ | | Audio Frequency Response | 100 Hz to 10 kHz | | Headphone Impedance | 8 to 600 Ω | | Power Input | 12 VDC, 500 mA | | Dimensions (L x W x H) | 7.9 x 6.6 x 2.4" (20.1 x 16.8 x 6.1 cm) | | Weight | 2.2 lb (1.0 kg) | | Model | TLM-W 4" Speaker with Microphone | | Output | Microphone: Line level (0 dB @ 1 kΩ) | | Frequency Response | Mic: 40 Hz to 15 kHz ± 1 dB | | Current Drain | Mic: 4 mA | | Speaker | 2.50" (6.35 cm), 4 W with 70 V transformer | | Dimensions (L x W x D) | Face Plate: 6.80 x 5.00 x 0.50" (17.27 x 12.70 x 1.27 cm)
Backbox: 6.92 x 5.12 x 1.62" (17.58 x 13.00 x 4.11 cm) | | Weight | 1.25 lb (0.57 kg) | | Model | AD-1 Plug-in Switching AC Adapter | | Input | 100 to 240 VAC, 60 Hz, 0.3 A | | Output | 12 VDC, 500 mA | | | | Package Weight | 4.345 lb | | Box Dimensions (LxWxH) | 11.7 x 8.45 x 5.6" |
