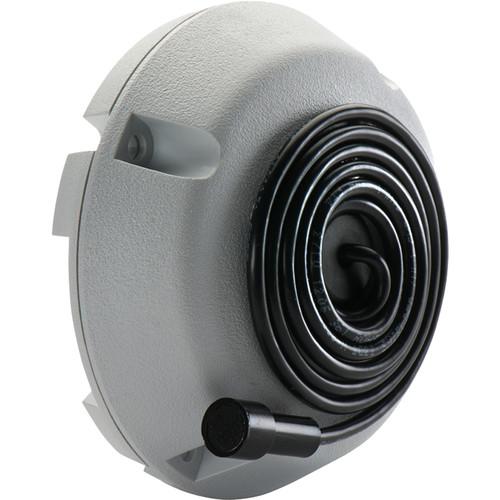

User Manual for Louroe LE-039 Verifact B6 Microphone with 6' Extension Cable Click to enlarge the picture
Contents of the user manual for the Louroe LE-039 Verifact B6 Microphone with
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe LE-039 Verifact B6 Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The LE-039 Verifact B6 Microphone with 6' Extension Cable from Louroe Electronics is an omni-directional, low impedance, electret condenser microphone with a built-in preamp for producing line level output. It can pick up normal sounds approximately 15’ (4.5m) away from the microphone location,in all directions, or within a 30’ (9.1m) diameter circle.
The microphone element is suspended from the preamp and dome housing by a 6' (1.8m) extension cable and is designed for high ceiling applications. The Verifact B6 microphone is compatible with all Louroe audio base stations or Louroe audio interface adapters.
The Verifact B6 microphone is applicable in scenarios like convenience stores, fast food restaurants, booking rooms, interrogation rooms, day care centers, sleep disorder centers, therapy labs, cashier booths, gas stations, and anywhere CCTV cameras are installed. Note: This microphone is not recommended for outdoor use or in areas with high moisture content. When this microphone is used as part of an audio monitoring system, it is legally mandatory to give a public notice regarding the audio monitoring on the premises. A decal notice is included with each microphone shipped. - Sturdy ABS microphone housing
- Microphone can pick up normal sounds 15'(4.5m) away
- Easy surface mount to a wall or ceiling
- May be located up to 1000' (304.8m) from the base station
- Phantom powered from the Louroe base station
- Microphone preamp contains sensitivity switch for lowering gain
UPC: 785583000394 In the Box Louroe LE-039 Verifact B6 Microphone with 6' Extension Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-039 Verifact B6 Microphone with 6' Extension Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-039 Specs | Sensitivity | 80 dB SPL input provides 0.254 Vrms (microphone & preamp) | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Output | Line level (0 dB @ 1000 Ω) | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | Wiring | 2 conductor shielded cable and 22 gauge with a 24 gauge drain wire Unshielded cable is not satisfactory for audio systems. | | Dimensions (Ø x H) | 4.0 x 1.5" (10.1 x 3.8 cm ) | | Weight | 0.5 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 4.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
