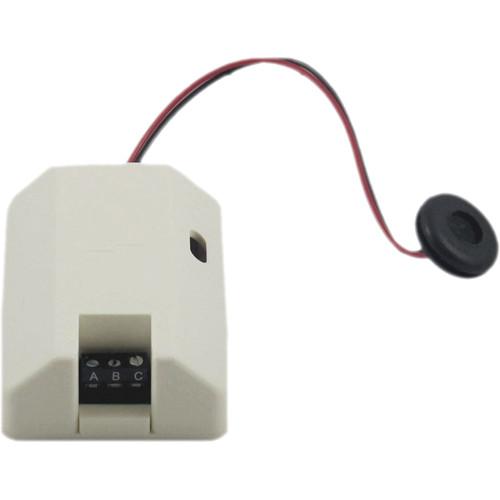

Product description The LE-072 Verifact C Microphone from Louroe Electronics is an omni-directional, line level, electret condenser microphone mounted to a small PC board via 2 lead wires measuring 6" (15cm) in length. The Model C microphone is designed for small or unusual housings and custom requirements. The electronics on the PC board are protected by a plastic housing. A barrier block is exposed for connection to the Louroe base station or other audio devices. A cut-out is provided for making wire connection to the Louroe Base Station or Audio Interface Adapter. A rubber grommet is included for positioning the microphone element. The Model C microphone is compatible with all Louroe base stations. - High sensitivity to low sound pressure
- Omni-directional, picks up normal sounds 15.0' (4.5m) away all directions, or within a 30.0' (9.1m) circle
- May be located up to 1000.0' (304.8m) from the Louroe Base Station or Interface Adapter
- Phantom powered from Louroe Base Station
- Pre-amp contains a sensitivity switch for lowering gain
- Applicable in scenarios like convenience stores, fast food restaurants, booking rooms, interrogation rooms, day care centers, sleep disorder centers, therapy labs, cashier booths, observation rooms and anywhere CCTV cameras are installed
UPC: 785583000721 In the Box Louroe LE-072 Verifact C Microphone Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-072 Verifact C Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-072 Specs Output | Line Level (0 dB @ 1000 Ω) | Frequency Response | 40 Hz to 15 kHz ± 1 dB | Current Drain | 4 mA | Supply Voltage | 12 VDC | Output Impedance | 600 Ω unbalanced | Dimensions (L x W x H) | PC Board: 2.18 x 1.62 x 0.62" (5.53 x 4.11 x 1.57 cm) PC Board Housing: 2.62 x 2.12 x 1.06" (6.65 x 5.38 x 2.69 cm) | Dimensions (Diam. x H) | Microphone: 0.37 x 0.25" (0.93 x 0.63 cm) | Weight | 0.12 lb (0.05 kg) | | Package Weight | 0.2 lb | Box Dimensions (LxWxH) | 6.0 x 3.0 x 2.5" |
