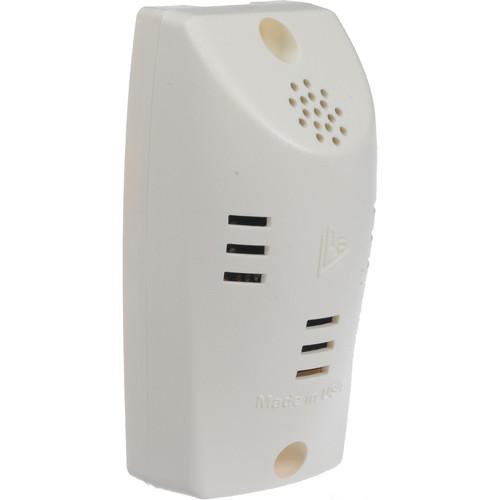

User Manual for Louroe LE-077 Verifact K Microphone Click to enlarge the picture
Contents of the user manual for the Louroe LE-077 Verifact K Microphone
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe LE-077 Verifact K Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The LE-077 Verifact K Microphone from Louroe features a modified omnidirectional pattern that is designed for maximum audio pickup from the front of the microphone and reduced audio pickup from the sides and back. It is specifically designed for use in areas with excessive background noise or where the ambient sound level is high. This dynamic line level microphone is pre-amplified and produces line level output. It is compatible with all Louroe audio base stations and interface adapters.
Additionally, there is an included vibration pad for use when the microphone is installed in commercial vehicles such as buses, trams, and paddy wagons. This pad helps reduce vibrations, resulting in improved live and recorded audio.
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of audio monitoring on the premises. A decal notice is included with each microphone shipped. - Microphone can pick up normal sounds up to 12' away
- Can be located up to 1,000' from the Louroe base station
- Pre-amplified with line level output
- Sensitivity switch for lowering gain
- Mounts to a ceiling or flat surface
- Package includes vibration pad for use in vehicles
- Powered from the Louroe base station or using an external 12 VDC power supply
- Can be used in retail stores, reception areas, public transportation vehicles, and casino soft count rooms
UPC: 785583000776 In the Box Louroe LE-077 Verifact K Microphone Vibration Pad Decal Notice Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-077 Verifact K Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-077 Specs | Type | Dynamic, -58 dBV @ 94 dB SPL | | Polar Pattern | Modified omnidirectional | | Frequency Response | 100 Hz to 15 kHz | | Output | Line level (0 dB, 6 kOhms @ 1 kHz) | | Current Drain | 10 mA | | Supply Voltage | 12 VDC | | Dimensions | 4.4 x 2.0 x 1.8" / 11.1 x 5.1 x 4.4 cm | | Weight | 2.5 oz / 70.9 g | | | | Package Weight | 0.28 lb | | Box Dimensions (LxWxH) | 5.55 x 3.1 x 2.05" |
