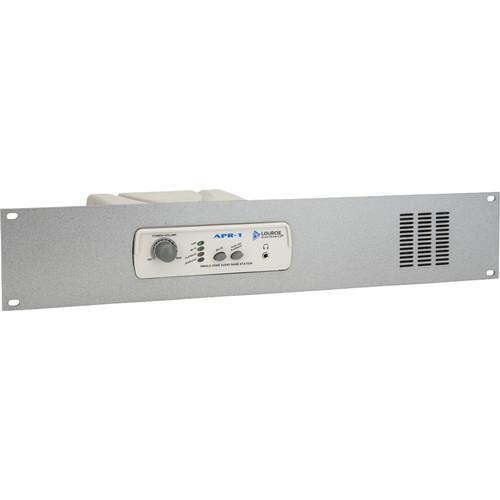

User Manual for Louroe LE-137 Audio Base Station Click to enlarge the picture
Contents of the user manual for the Louroe LE-137 Audio Base Station
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe LE-137 Audio Base Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The single zone non-alarming Louroe Electronics LE-137 Audio Base Station provides one-way live audio with a built-in 3” (76mm) speaker. Equipped with a Louroe microphone, this unit contains input/output jacks to connect to a DVR/VCR for recording and audio playback. Other features include adjustable volume control and a 3.5mm headphone jack. This audio monitoring base station can be used in convenience stores, polices interview rooms, booking rooms, speech therapy labs, casino soft count rooms, fast food restaurants – basically any place where CCTV cameras are installed. This base station is rack mountable on a 19" (482mm) rack. Note: RM-1935/APR-1 rack mount kit sold separately. - Built-in 3" (76mm) speaker for monitoring live audio
- Audio input/output jacks for recording and playback from a DVR/VCR
- Adjust monitoring level control and easy DVR/VCR input/output connection
- 3.5mm headphone jack for private monitoring desktop model
In the Box Louroe LE-137 Audio Base Station 12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-137 Audio Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-137 Specs | Input Sensitivity | 0.78 Vrms (from remote microphone) | | Power Output | Monitoring: 1 W at 8 Ω | | Audio Line Input | Impedance: 600 W or higher | | Audio Input Impedance | 10 kΩ | | Audio Frequency Response | 100 Hz to 10 kHz | | Headphone Impedance | 8 to 600 Ω | | Power Input | 12 VDC, 500 mA | | Compatible | Microphone models A, B, C, D, D-V, E, K, and L-DT | | Dimension L x W x H | 8.25 x 5.75 x 1.37" (209.55 x 146.05 x 34.79 mm) | | Weight | 1.5 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 20.0 x 12.0 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
