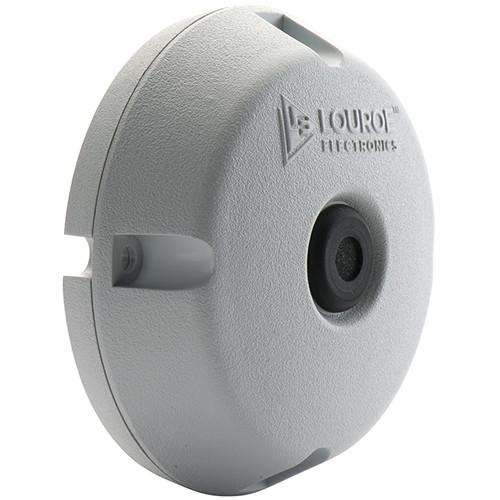

User Manual for Louroe LE-510 Verifact AGC Ceiling Mount Microphone Click to enlarge the picture
Contents of the user manual for the Louroe LE-510 Verifact AGC Ceiling Mount
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe LE-510 Verifact AGC Ceiling Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The LE-510 Verifact AGC Ceiling Mount Microphone from Louroe is an omnidirectional, low impedance, electret condenser microphone with built-inpreamp and automatic gain control. It is compatible with all Louroe Audio Base Stations and Audio Interface Adapters.The microphone can pick up sounds approximately 25' away, or within a diameter of 50'. Its built-in limiter prevents the output signal from being overdriven, thus minimizing distortion. The Verifact AGC produces line level output (0 dB) and can be located up to 1000' from the audio base station. The microphone has a potentiometer to adjust output gain up to +10 dB. It is designed for ceiling mounting but can also be installed on any type of flat surface.
This device is not recommended for outdoor use or in areas with high moisture content. UPC: 785583005108 In the Box Louroe LE-510 Verifact AGC Ceiling Mount Microphone Audio Monitoring Decal Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-510 Verifact AGC Ceiling Mount Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-510 Specs | Compatibility | Louroe Audio Base Stations and Audio Interface Adapters | | Microphone Sensitivity | -45 dB | | Frequency Response | 50 Hz to 8 kHz | | Output | Line level (0 dB, 1 kOhms @ 1 kHz) | | Current Drain | 10 mA | | Supply Voltage | 12 VDC | | Output Gain | +10 dB | | Mounting Holes | 4 mounting holes for surface mounting to a ceiling or other flat surface | | Positioning | 4 to 8' (1.2 to 2.4 m) from the area of desired coverage | | Housing | High impact, anti-static ABS | | Dimensions (Ø x H) | 4.0 x 1.5" (10.2 x 3.8 cm) | | Weight | 3.5 oz (99.2 g) | | | | Package Weight | 0.28 lb | | Box Dimensions (LxWxH) | 4.3 x 4.25 x 1.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
