User Manual for Louroe LE-571 Verifact BGC Omnidirectional Electret Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Louroe LE-571 Verifact BGC Omnidirectional Electret
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe LE-571 Verifact BGC Omnidirectional Electret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

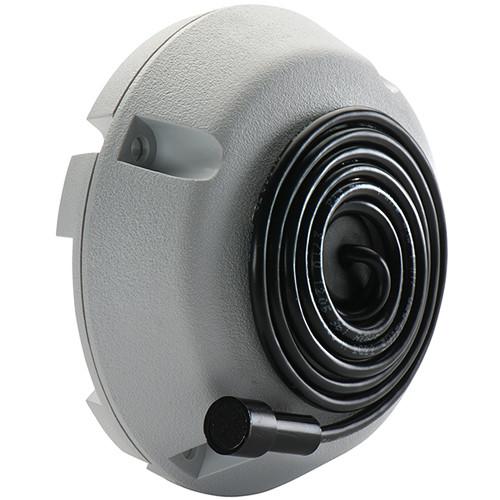

Product description The LE-571 Verifact BGC from Louroe is a low impedance omnidirectional electret condenser microphone equipped with a built-in preamplifier and automatic gain control. It can pick up sound from 25' away, creating a 50' diameter circle. The 3' drop down cable enables high ceiling applications.
This microphone is not recommended for outdoor use or in areas with high moisture content. - Suitable for convenience stores, fast food restaurants, booking rooms, interrogation rooms, sleep disorder centers, therapy labs, cashier booths, gas stations, day care centers, and anywhere CCTV cameras are installed when used as part of a Louroe audio system
- Compatible with all Louroe base stations or Louroe interface adapters
- Can be located up to 1000' away from a Louroe base station
- Picks up sound from 25' away
- Built-in preamplifier and automatic gain control
- Built-in preamplifier contains output gain control potentiometer to increase the output up to +10 dB
- Built-in limiter prevents output signal to be overdriven, minimizing distortion
- Can be surface mounted on a wall or ceiling
UPC: 785583005719 In the Box Louroe LE-571 Verifact BGC Omnidirectional Electret Condenser Microphone Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-571 Verifact BGC Omnidirectional Electret Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-571 Specs | Compatibility | All Louroe base stations or Louroe interface adapters | | Microphone Sensitivity | -45 dB | | Frequency Response | 50 Hz to 8 kHz | | Output | Line Level (0 dB, 1 kOhm at 1 kHz) | | Current Drain | 10 mA | | Supply Voltage | 12 VDC | | Housing | High impact ABS | | UL Listed | Yes | | Dimensions (Diam. x H) | 4 x 1.5" / 101.6 x 38.1 mm | | Weight | 4 oz / 113.4 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.4 x 4.2 x 1.7" |
