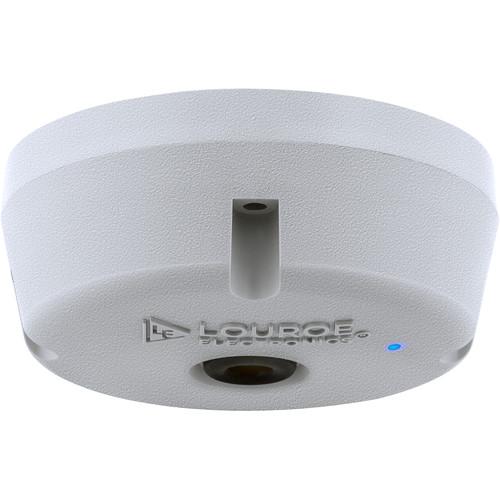

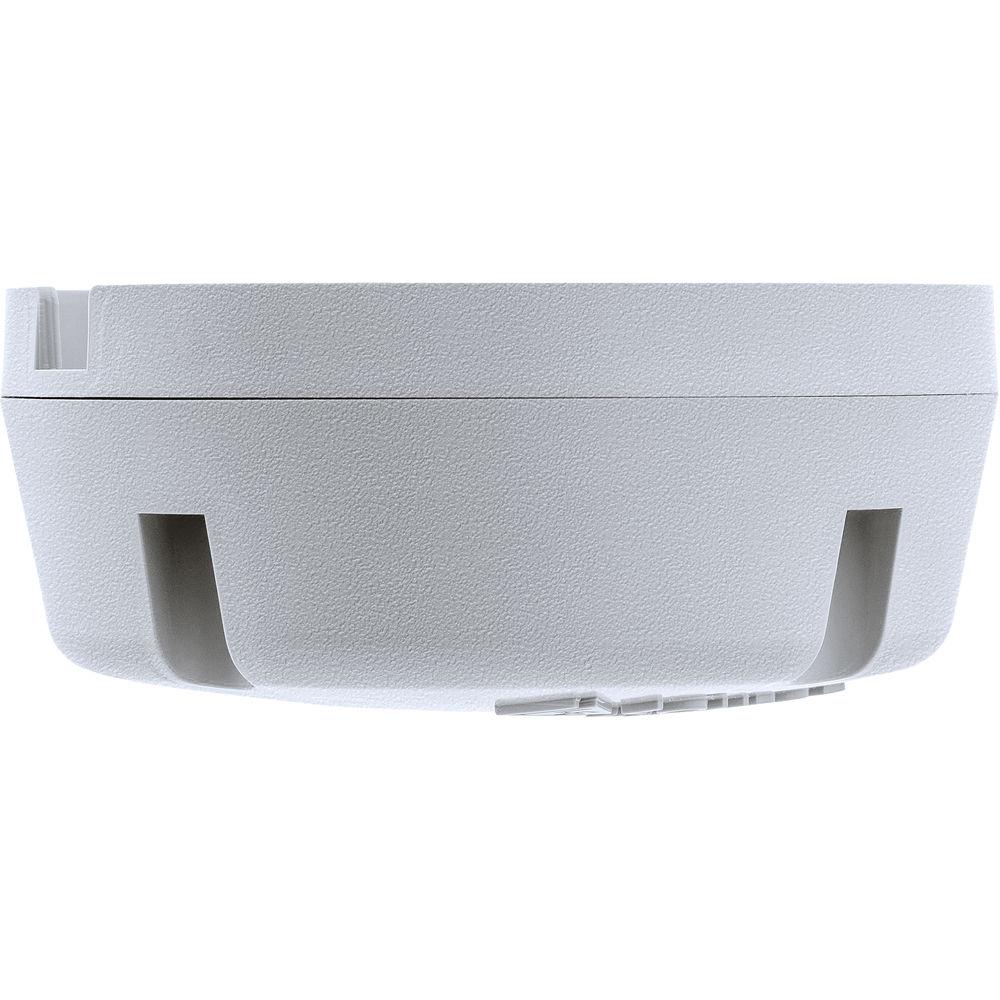

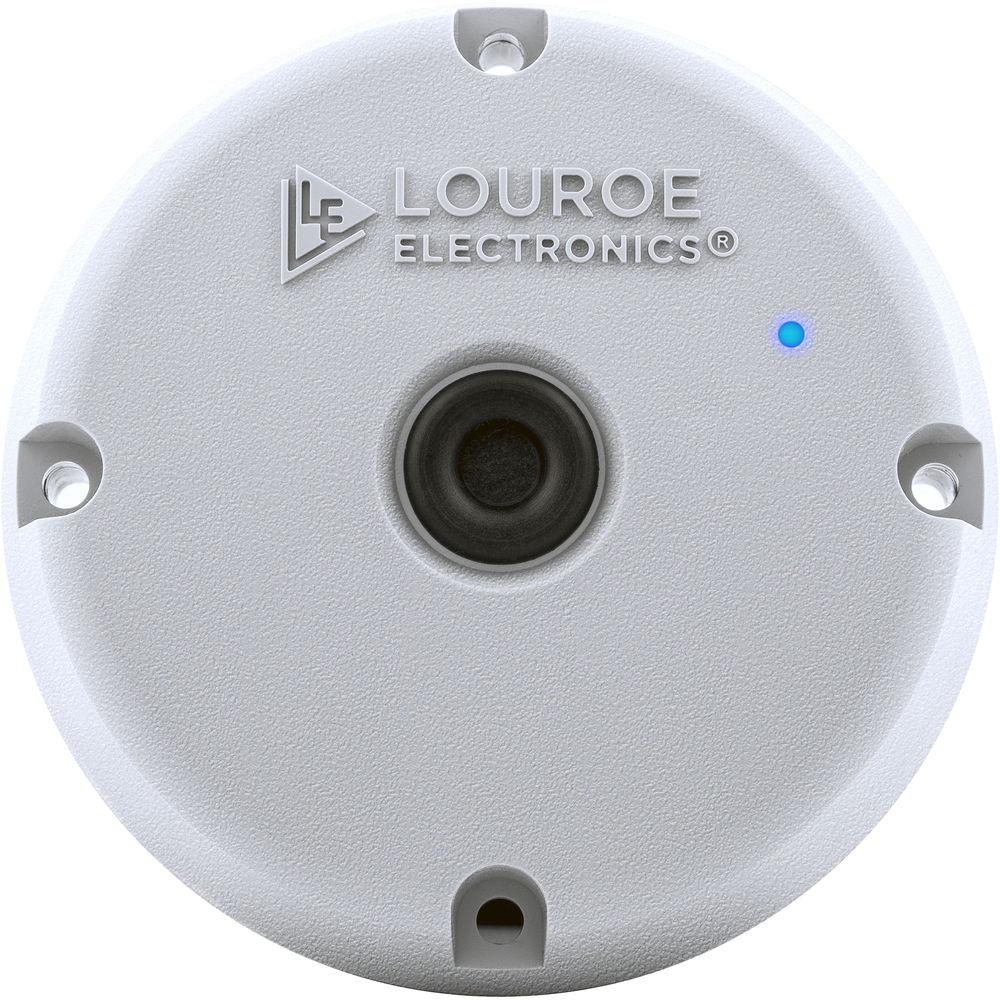

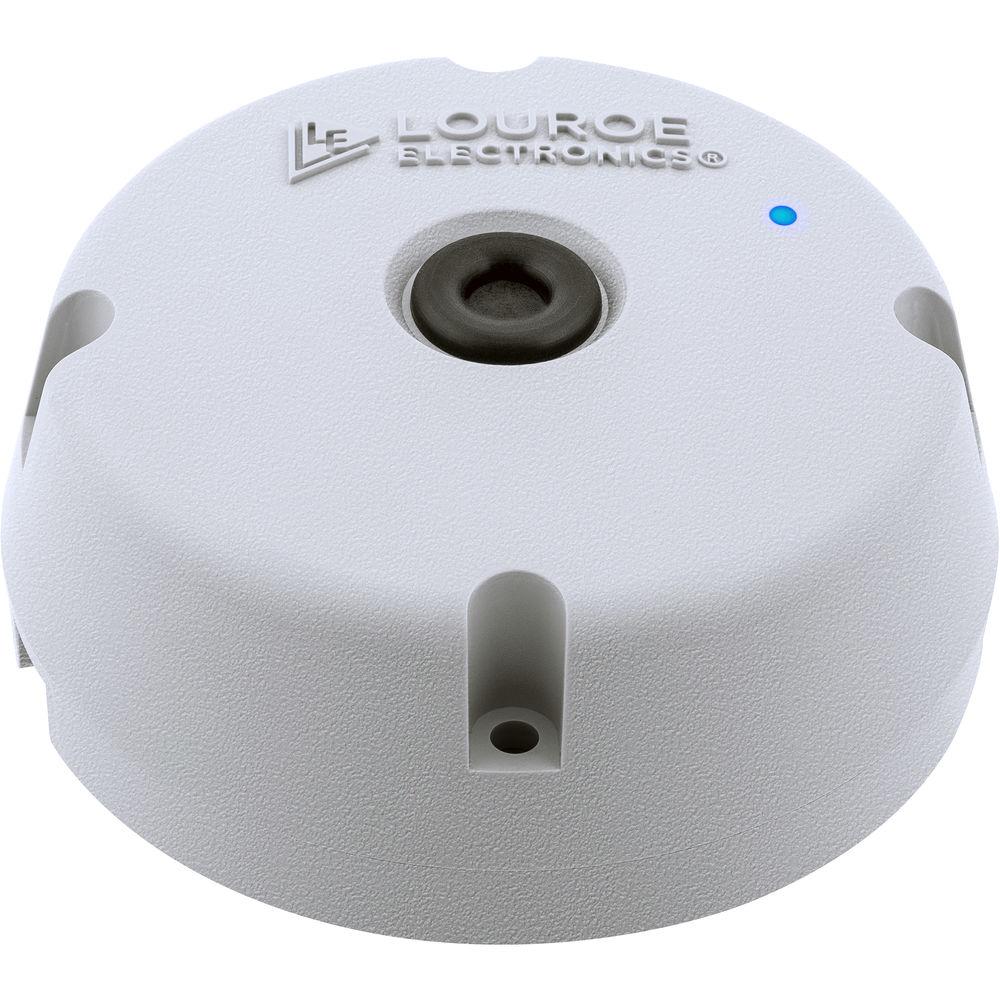

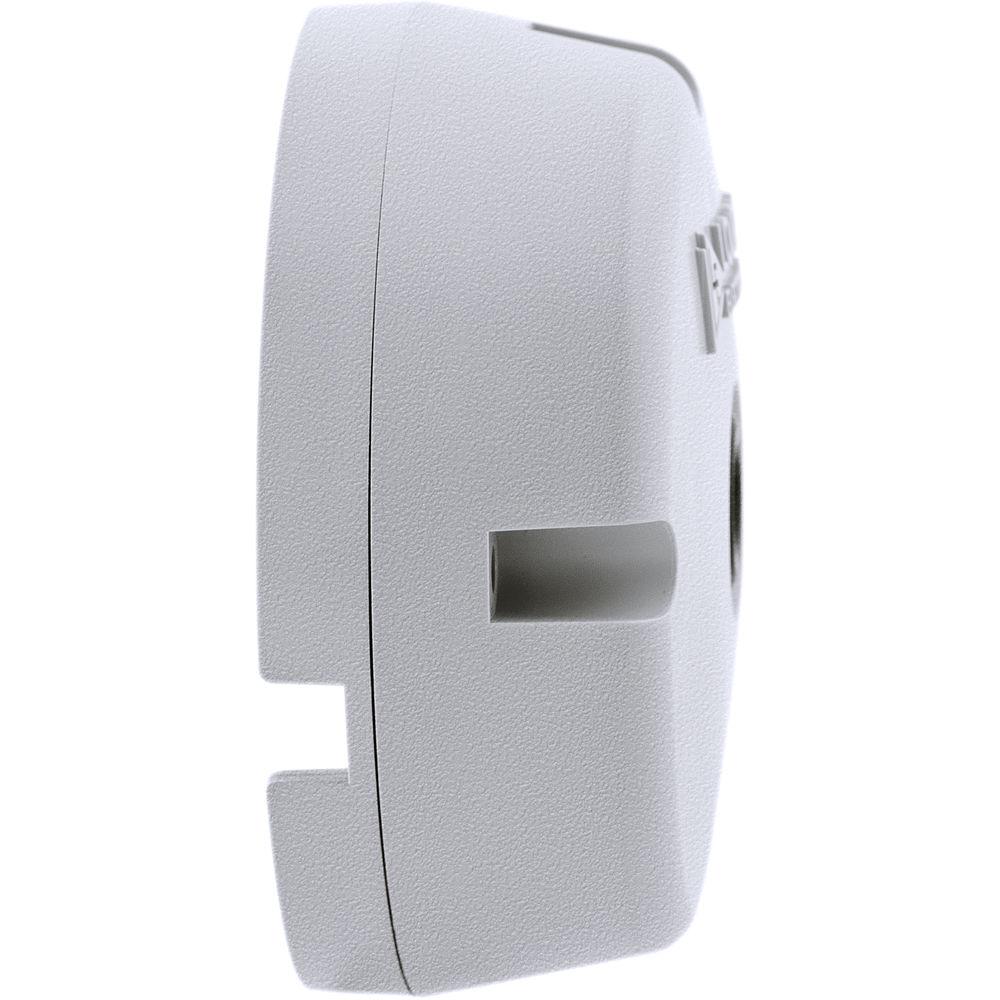

Product description The LE-870 Digifact A from Louroe is an omnidirectional IP microphone that can pick up sound within a radius of 15'. When used in conjunction with audio analytics, this microphone will be able to detect and report events such as aggression, duress, gunshots, explosions, breaking glass, and car & panic alarms. Open API enables this device to integrate with many VMS platforms. An RJ45 connector provides network and power connection via a single wire. - Wide dynamic range microphone suitable for education, law enforcement, hospitals, banks, and other commercial applications
- Open API for software integration
- Picks up low and high frequency sounds
- Analytics and decibel level threshold event triggers
- Event actions include TCP notification, pre- and post-alarm audio recording to NAS, and external output activation
- High-impact anti-static ABS enclosure
UPC: 785583008703 In the Box Louroe LE-870 Digifact A IP Microphone 5-Pin and 2-Pin Headers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-870 Digifact A IP Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-870 Specs | | | Streaming | One-way | | Pickup Pattern | Omnidirectional
30' / 9.12 m diameter circle | | Compression | PCM, 16-bit linear
G.711 a-Law
G.711 mu-Law
G.726-40
AAC | | Sensitivity | -45 dBV/Pa
1 Pa = 94 dB SPL | | Frequency Response | 50 Hz to 15 kHZ | | | | Security | Password protection, user level access (admin and operator) | | Supported Protocols | IPv4, HTTP, RTSP, RTP, TCP, SSH | | | | API | Open API for software integration | | Analytics | Louroe/SI audio analytics, audio level (dB) alarm | | Event Triggers | Analytics, decibel level threshold | | Event Actions | TCP notification, external output activation, pre- and post-alarm audio recording to NAS | | | | Microprocessor | Quad-core microprocessor | | Enclosure | High-impact anti-static ABS | | Power | PoE IEEE 802.3af

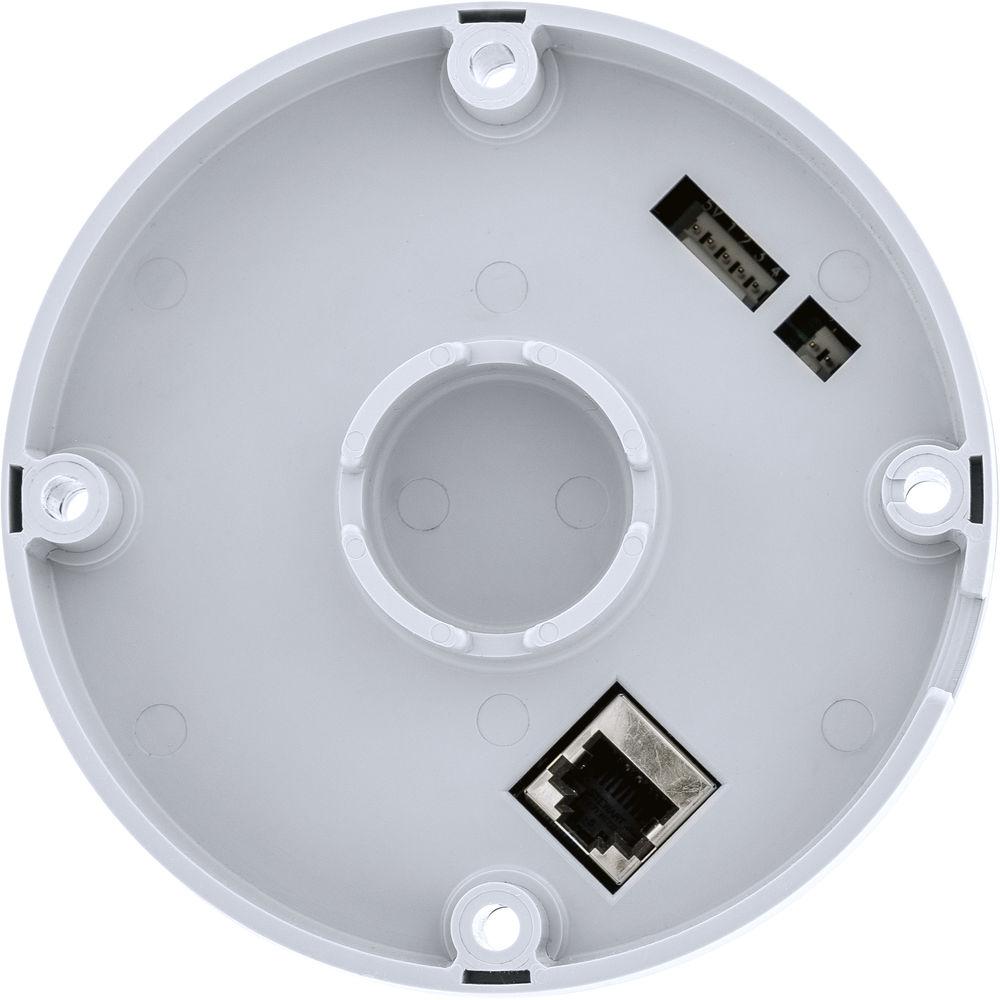

Optional external 5 VDC, 2A (2-pin header) | | RAM | 512 MB | | Connectors | Female RJ45 for 10/100M PoE
5-pin header for four outputs (5 VDC), max load 100 mA
2-pin header for 5 VDC, 2 A input | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 85%, RH | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Dimensions (Diam. x H) | 4.7 x 2" /119 x 50.8 mm | | Weight | 9 oz / 255 g | | | | Package Weight | 0.93 lb | | Box Dimensions (LxWxH) | 7.75 x 7.2 x 3.15" |
