User Manual for Louroe LE-875 Digifact E Outdoor IP Microphone Click to enlarge the picture
Contents of the user manual for the Louroe LE-875 Digifact E Outdoor IP
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe LE-875 Digifact E Outdoor IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

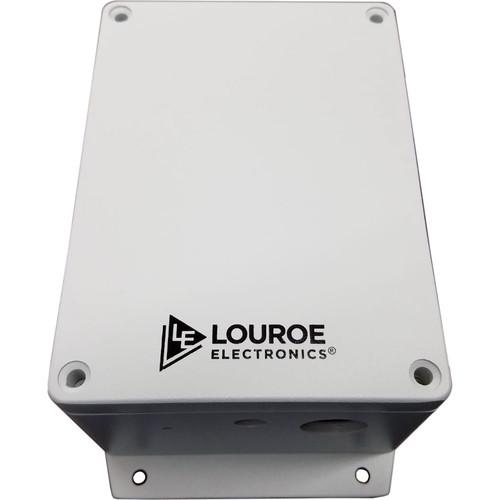

Product description The LE-875 Digifact E from Louroe is an omnidirectional IP microphone that is capable of picking up low- and high-frequency sounds in outdoor applications. When used in conjunction with audio analytics, this microphone will be able to detect and report events such as gunshots, vocal aggression, car alarms, and breaking glass. An open API enables this device to integrate with many VMS platforms. An RJ45 connector provides network and power connections via a single wire.
This microphone is housed in a weather-resistant aluminum alloy enclosure. - Wide dynamic range microphone suitable for education, law enforcement, hospitals, banks, and other commercial applications
- Picks up low- and high-frequency sounds
- User interface enables project specific and user customization, enhancements, and applications
- Streams audio over multiple industry standard streaming protocols
- Password protection and user level access
- Audio analytics and decibel threshold event triggers
- Event actions include TCP notification, pre- and post-alarm audio recording to NAS, and external output activation
- Waterproof RJ45 connector
- Digital alarm output ports
In the Box Louroe LE-875 Digifact E Outdoor IP Microphone Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe LE-875 Digifact E Outdoor IP Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-875 Specs | | | Streaming | One-Way | | Pickup Pattern | Omnidirectional | | Sensitivity | -45 dBV/Pa
1 Pa = 94 dB SPL | | Frequency Response | 50 Hz to 15 kHZ | | | | Supported Protocols | IPv4, HTTP, RTSP, RTP, TCP, SSH | | Security | Password Protection, User Level Access | | | | API | Open API Integration with Video Management Systems | | Audio Analytics | Audio Analytics Including Gunshot and Aggression Detection | | | | Processor | Quad-Core Processor | | RAM | 512 MB | | Event Triggers | Audio Analytics, Decibel Threshold | | Event Actions | TCP Notification, External Output Activation, Pre- and Post-Alarm Audio Recording to NAS | | Connectors | Waterproof Female RJ45 Connector for 10/100M PoE (802.3af)
5-Pin Header for Four Outputs (5 VDC), Maximum Load 100 mA
2-Pin Header for 5 VDC, 2 A Input | | Enclosure | Weather-Resistant Aluminum Alloy | | Dimensions | Not Specified by Manufacturer | | | | Package Weight | 1.97 lb | | Box Dimensions (LxWxH) | 7.9 x 5.3 x 3.4" |
