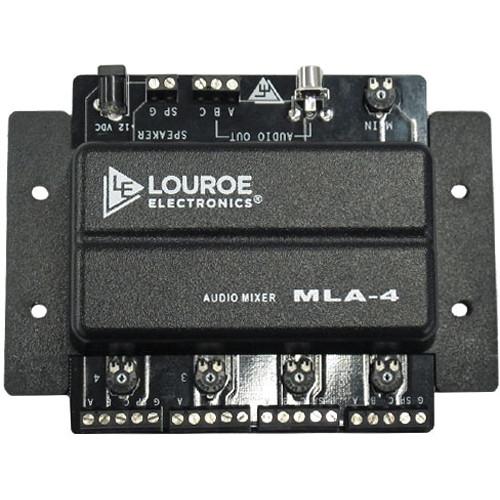

User Manual for Louroe MLA-4 Microphone Audio Mixer Click to enlarge the picture
Contents of the user manual for the Louroe MLA-4 Microphone Audio Mixer
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe MLA-4 Microphone Audio Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe MLA-4 Microphone Audio Mixer features 4 audio inputs and 1 audio output. This microphone audio mixer is designed to combine up to 4 microphones or up to 4 speaker/microphones to expand the listening area of an audio zone. The microphone mixer is located between the microphones or speaker/microphones and the Louroe base station. It has a line driver amplifier that allows for runs up to 5,000’ (1524m) between the microphone mixer and the Louroe base station, and up to 1,000’ (304.8m) between the MLA-4 microphone audio mixer and the remote microphone or speaker and microphone, for a total of 6000’ (1828.8m).The MLA-4 is a mixer designed for zone expansion only and is not a base station. It combines up to 4 microphones or 4 speaker/microphones to create a larger monitoring zone.If the cable run between the MLA-4 microphone audio mixer and the Louroe base station is less than 1,000' (304.8m), then the microphone mixer is phantom powered from the Louroe base station. If the cable run is between 1,000' (304.8m) and 5,000' (1524m), then the power required at the MLA-4 microphone mixer is 12VDC, 300mA. Note: When this equipment is used as part of an audio monitoring system, the law requires that public be given notice of audio monitoring on the premises. A decal stating AUDIO MONITORING ON THESE PREMISES (provided by Louroe Electronics) must be displayed in a visible location at the entrances and exits of both private and public buildings and vehicles. UPC: 785583002176 In the Box Louroe MLA-4 Microphone Audio Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe MLA-4 Microphone Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-217 Specs | Input Level | ±3 dB or 1 Vrms | | Output Level | +10 dB maximum gain adjustable | | Output Impedance | 600 Ω | | Frequency Response | 100 Hz to 10 kHz ±5 dB | | Current Drain | 25 mA | | Voltage | 12 VDC, 500 mA (supply) | | Wiring | Microphone Only: 2-conductor shielded cable, 22 gauge with a 24 gauge drain wire.Microphone/Speaker: 4 conductor consisting of 2- conductor shielded, 20 gauge with 22 gauge drain (microphone connection) + 2 conductor unshielded, 18 gauge (speaker connection), all in the same jacket. Unshielded cable is not satisfactory for audio systems. | | Dimensions (L x W x H) | 6.25 x 4.75 x 1.50" (15.88 x 12.06 x 3.81 cm) | | Weight | 1.25 lb (0.56 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.0 x 5.4 x 3.5" |
