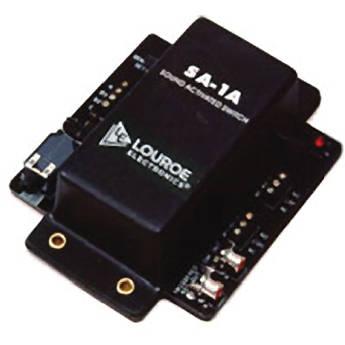

User Manual for Louroe SA-1A Sound Activated Switch Click to enlarge the picture
Contents of the user manual for the Louroe SA-1A Sound Activated Switch
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe SA-1A Sound Activated Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics SA-1A Sound Activated Switch is used in conjunction with the Louroe ASK-4 #101 Audio Monitoring System or any of the AP Series Non-Alarming Base Stations (both sold separately). Usually located near the base station, this switch provides a variable threshold level control that activates the microphone when that level is exceeded by a sound.
In addition, it has 2 sets of relay contacts that automatically close when the threshold level is exceeded. This can be used to activate a camera, light or other annunciations. Automatic re-set is adjustable between 0.5 and 60 sec. An alarm LED is illuminated during activation time. 12VDC power (sold separately) is required when this switch works as a stand alone unit (without base station). - Adjustable threshold level control
- 2 relay contacts for activating cameras, lights, machinery, etc.
- Adjustable re-set from 0.5 to 60 sec
- Automatic electronic switch to pass audio to base station
- Receptacle for 12VDC power
- Applications: Unattended facilities, entry gates, therapy labs, warehouses, remote locations, and stables
In the Box Louroe SA-1A Sound Activated Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe SA-1A Sound Activated Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-230 Specs | Input Signal | 50 mVrms (minimum) | | Audio Input Impedance | 10 kΩ balanced or unbalanced | | Relay Contacts | 5 A @ 277 VAC or 5 A @ 30 VDC | | DC Input | 12 VDC, 70 mA | | Relays | Latch Time: 0.5 to 60 sec | | Wiring | 2 conductor shielded cable, 22 gauge with a 24 gauge drain wire
Unshielded cable is not satisfactory for audio systems | | Dimensions (L x W x H) | 6.13 x 4.63 x 1.88" (155.70 x 117.60 x 47.75 mm) | | Weight | 8 oz (226 g) |
