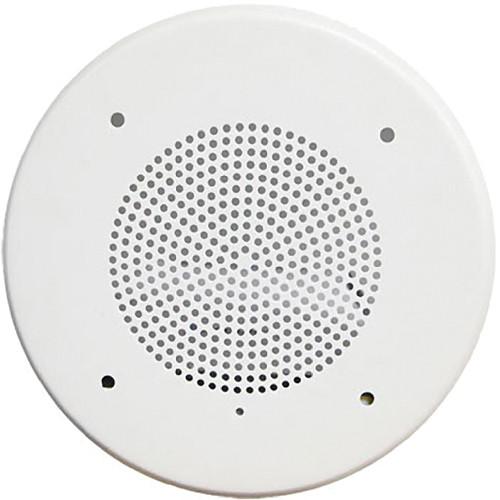

User Manual for Louroe TLM-CS 4" Surface-Mounted Ceiling Speaker Microphone Click to enlarge the picture
Contents of the user manual for the Louroe TLM-CS 4" Surface-Mounted Ceiling Speaker
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe TLM-CS 4" Surface-Mounted Ceiling Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics TLM-CS 4" Surface-Mounted Ceiling Speaker / Microphone consists of an electret condenser microphone, and a 4” speaker, all within one housing. It can be mounted to a beige metal 7.63" grill. As part of a Louroe audio monitoring system, it provides hands-free, 2-way communication between the remote area and the Louroe audio base station or other audio receiving devices. This speaker / microphone can be surface mounted to a ceiling. Note: 4 conductors consisting of: 2 shielded conductors, 20 gauge with 22 gauge drain (microphone connection); 2 unshielded conductors, 18 gauge (speaker connection) All in the same jacket - Omni-directional microphone and 4" speaker for surface mounting
- Can be installed up to 1,000' from the Louroe base station
- Microphone can pick up normal sound from 15' in all directions or within a 30' diameter circle
- Microphone sensitivity switch for lowering gain
- Applications: Convenience stores, sleep disorder labs, elevator cabs, therapy labs, hospital isolation rooms, hallways, and reception lobbies
UPC: 785583000271 In the Box Louroe TLM-CS 4" Surface-Mounted Ceiling Speaker / Microphone BR-4 Grill MR-4 Mounting Ring Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe TLM-CS 4" Surface-Mounted Ceiling Speaker Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-027 Specs Type | Microphone: Electret condenser | Output | Line level (0 dB @ 1,000 W) | Output Impedance | 600 Ω unbalanced | Frequency Response | 40 Hz to 15 kHz ±1 dB | Current Drain | 4 mA | Supply Voltage | 12 VDC | Power Rating | Speaker: 10 W | Input | 70.7 V constant | Frequency Response | 150 Hz to 12 kHz | Impedance | Voice Coil: 8 Ω | Speaker Size | 4.0" (101.6 mm) | Weight | 2.0 lb (0.9 kg) (including mounting assembly) | | Package Weight | 2.85 lb | Box Dimensions (LxWxH) | 11.7 x 8.5 x 5.8" |
