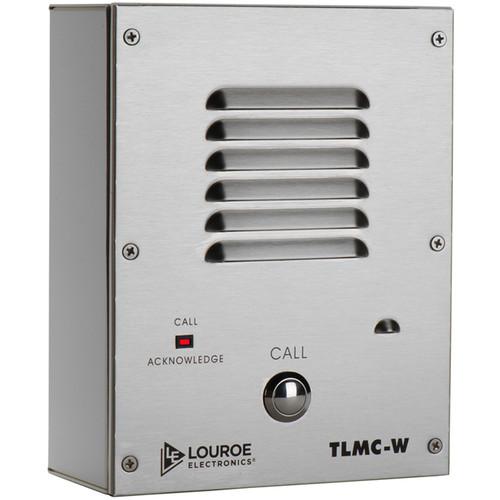

User Manual for Louroe TLMC-W 2-Way Call Station Click to enlarge the picture
Contents of the user manual for the Louroe TLMC-W 2-Way Call Station
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe TLMC-W 2-Way Call Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics TLMC-W 2-Way Call Station is a talk/listen remote call station that contains a microphone, a speaker, and a call button, all within one housing. As a part of the Louroe Sound Activated System, it can activate the Louroe Alarming Base Station (ALA or DG series) by a sound exceeding the threshold level or by pushing the call button. Once activated, a person at the TLMC-W can communicate hands-free with the Louroe Base Station. A selector switch on PC board allows a choice of activation by pushbutton only, or a combination of pushbutton and sound activation. An included LED is illuminated on the front panel of TLMC-W when a call is acknowledged from the Louroe Base Station. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of audio monitoring on the premises. A decal notice is included with each microphone shipped. - Omni-directional microphone and 4" (101.6mm) speaker
- Built-in 1" (25.4mm) red call button
- Selector switch for pushbutton activation only, or combination pushbutton and sound activation
- Pushbutton contains a spare SPDT momentary switch for other uses that require a switch closure
- May be installed up to 1,000' (304.8m) from Louroe Base Station
In the Box Louroe TLMC-W 2-Way Call Station Surface Mount Backbox Flush Mount Backbox Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe TLMC-W 2-Way Call Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-169 Specs | | | Output Impedance | 600 W unbalanced (microphone only) | | Output | Line level (0 dB at 1 KW) | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | | | Power Rating | 10 W | | Input | 70 V constant | | Frequency Response | 300 Hz to 4 kHz | | Voice Coil | Impedance: 8 W | | Magnet | 3.0 oz (85.04 g) ceramic | | Speaker Size | 4.0" (101.6 mm) | | Wiring | Requirements: 4 conductor wires consisting of 2 conductor-shielded wires, 20 gauge with 22-gauge drain (microphone connection) and 2 conductor-unshielded wires, 18-gauge (speaker connection), all in the same jacket | | | | Dimensions | Face plate (H x W): 8.0 x 6.2" (20.3 x 15.9 cm) | | Mount | Metal surface mount box (H x W x D): 8.0 x 6.2 x 2.7" (20.3 x 15.9 x 7.0 cm),
plastic flush mount box (H x W x D): 6 .8 x 5.0 x 2.8" (17.5 x 12.7 x 6.7 cm),
total including flange (H x W x D): 8.0 x 6.2 x 2.8" (20.3 x 15.9 x 6.7 cm) | | Weight | 3.5 lb (1.5 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 6.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
