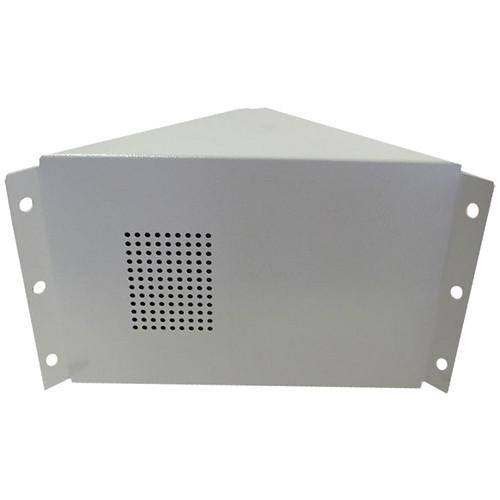

User Manual for Louroe TLSP Corner Mount Speaker & Microphone Click to enlarge the picture
Contents of the user manual for the Louroe TLSP Corner Mount Speaker &
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe TLSP Corner Mount Speaker & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The white TLSP Corner Mount Speaker & Microphone from Louroe Electronics is a two-way talk / listen speaker and microphone with built-in electret condenser microphone and a 3” speaker. Its 18-gauge CRS vandal-resistant housing is especially designed for mounting it in a corner or between a wall and a ceiling. When part of a Louroe Audio System, TLSP Corner Mount provides listen and talkback capabilities between the remote area and the Louroe base station. It also has a built-in sound path that protects both the speaker and the microphone from abuse. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of audio monitoring on the premises. A decal notice is included with each microphone shipped. - Vandal-resistant, 18-gauge CRS housing
- Mounts in a corner or between a wall and a ceiling
- May be mounted up to 1,000' (305m) from Louroe Base Station
- Phantom powered from the Louroe Base Station
- Microphone can pick up normal sounds that are 15' (4.57m) away or within a 30' (9.14m) diameter circle
- Applications: Correctional facilities, transportation terminals, juvenile facilities, public access areas, parking structures, and areas where vandalism is a concern
In the Box Louroe TLSP Corner Mount Speaker & Microphone (White) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe TLSP Corner Mount Speaker & Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-092 Specs | | | Type | Electret condenser | | Output | Line Level (0 dB @ 1 KΩ) | | Output Impedance | Mic Only: 600 Ω unbalanced | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | | | Power Rating | 2 W | | Input | 70.7 V constant | | Frequency Response | 300 Hz to 4 kHz ± 1 dB | | Impedance | 8 Ω | | Speaker Size | 3.0" (76.2 mm) | | Wiring | Requirements: 4 conductor wires consisting of 2 conductor-shielded wires, 20 gauge with 22-gauge drain (microphone connection) and 2 conductor-unshielded wires, 18-gauge (speaker connection), all in the same jacket | | Dimensions | Face: 8.75 x 6.00" (222.25 x 152.40 mm) | | Weight | 3.0 lb (1.4 kg) |
