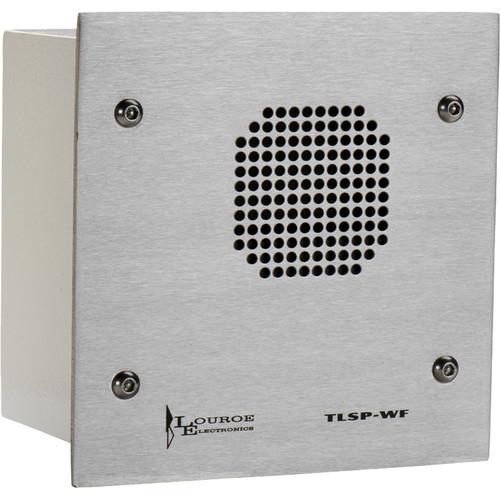

User Manual for Louroe TLSP-F Vandal-Resistant 2-Way Speaker with Microphone Click to enlarge the picture
Contents of the user manual for the Louroe TLSP-F Vandal-Resistant 2-Way Speaker with
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe TLSP-F Vandal-Resistant 2-Way Speaker with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics TLSP-F Vandal-Resistant 2-Way Speaker with Microphone is designed for correctional facilities or areas of high vandalism. When functioning as part of a Louroe Audio Monitoring System (sold separately), it provides 2-way talk / listen capability between the remote area (jail cells, etc.) and the Louroe Base Station (sold separately).The unit consists of an electret condenser microphone and a 3” (7.62cm) speaker fitted to a special tone path and mounted to an 11-gauge stainless steel faceplate. The tone path protects the microphone and speaker from vandalism.
The LE-086 Speaker is designed for flush mounting, and is suitable for use in parking structures, municipal buildings, juvenile detention centers, and any other area where vandalism is a concern. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped. - Designed for flush mounting
- Damage-resistant 11-gauge stainless steel faceplate
- 3" (7.62cm) speaker and microphone are mounted to a special tone path for protection against vandalism
- Tamper-proof mounting hardware secures the faceplate to the back box
- Can be mounted up to 1,000' (304.8m) from the Louroe Base Station (sold separately)
In the Box Louroe TLSP-F Vandal-Resistant 2-Way Speaker with Microphone Tamper-Proof Mounting Hardware Back Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe TLSP-F Vandal-Resistant 2-Way Speaker with Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-082 Specs | | | Type | Electret condenser | | Output | Line Level: 0 dB @ 1,000 Ω | | Output Impedance | 600 Ω unbalanced(microphone only) | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | Wiring | Wire Type: West Penn 356 or equivalent
Wire Description: 4 conductor wires consisting of 2-conductor shielded wires, 20 gauge with 22-gauge drain (microphone connection) and 2-conductor unshielded wires, 18-gauge (speaker connection), all in the same jacket | | | | Power Rating | 2 W | | Input | 70 V constant | | Frequency Response | 300 Hz to 4 kHz | | Voice Coil | Impedance: 8 Ω | | Acoustic | 88 dB from 4' (1.22 m) @ 1 W input | | Speaker Size | 3.0" (76.2 mm) | | Dimensions | Back Box: 6.0 x 6.0 x 4.0" (15.2 x 15.2 x 10.1 cm)
Face Plate: 7.0 x 7.0" (177.8 x 177.8 mm) | | Weight | Net: 4.0 lb (1.8 kg) |
