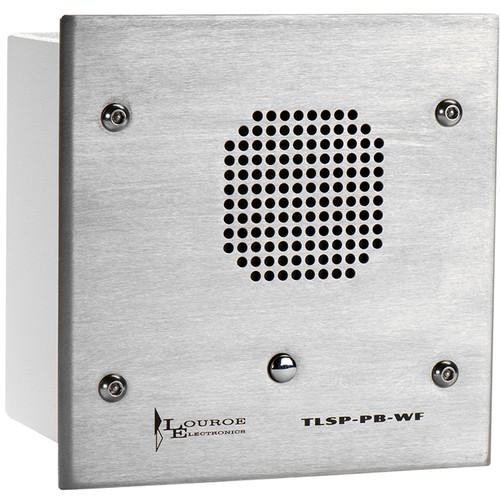

User Manual for Louroe TLSP-PB-WF Vandal-Resistant Speaker Microphone Click to enlarge the picture
Contents of the user manual for the Louroe TLSP-PB-WF Vandal-Resistant Speaker Microphone
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe TLSP-PB-WF Vandal-Resistant Speaker Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics TLSP-PB-WF Vandal-Resistant Speaker Microphone is designed for correctional facilities or areas of high vandalism. This call station comes with a push button and wall flush mount, and provides 2-way communication with the Louroe sound activated alarming base station models; DG-12II/DG-25III and ALA-4/8 series.
This unit consists of an electret condenser microphone, a 3” (7.6cm) speaker, and a vandal-resistant call button, all mounted upon an 11 gauge stainless steel face plate. When interfaced with a Louroe sound activated base station, this system can be activated either by a noise that exceeds the threshold level (such as a scream or yell), or by pressing its built-in call button.
A 3 kHz zone is sent by the call button, which activates the base station and opens up a 2-way communication path. A special built-in sound path protects both speaker (2W power rating) and microphone from abuse. This speaker microphone is compatible only with certain Louroe sound activated alarming base stations. Note: When this speaker microphone is used as part of an audio monitoring system, it is legally mandatory to give a public notice regarding the audio monitoring on the premises. A decal stating the same (provided by Louroe Electronics) must be installed in a visible location at the entrances and exits of both private and public buildings and vehicles. In the Box Louroe TLSP-PB-WF Vandal-Resistant Speaker Microphone Back Box with Tamper Proof Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe TLSP-PB-WF Vandal-Resistant Speaker Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-097 Specs | | | Power Rating | 2 W | | Input | 70 V (constant) | | Frequency Response | 300 to 4000 Hz | | Voice Coil | 8 Ω (impedance) | | Speaker Size | 3.00" (7.62 cm) | | Weight | 4.00 lb (1.81 kg) | | | | Output Impedance | 600 Ω unbalanced (mic only) | | Frequency Response | 40 to 1500 Hz ± 1 dB | | Current Drain | 4 mA | | Output | Line level (0 dB @ 1000 Ω) | | Supply Voltage | 12 VDC | | Weight | 4.00 lb (1.81 kg) | | | | Compatible with | DG-12II/DG-25III and ALA-4/8 series | | Dimensions | Face plate (W x H): 7.00 x 7.00" (17.78 x 17.78 cm) Back box (W x H x D): 6.00 x 6.00x 4.00" (15.24 x 15.24 x 10.16 cm) | | Wiring | 4 conductor consists of 2 conductor shielded, 20 gauge with 22 gauge drain (microphone connection) 2 conductor unshielded, 18 gauge (speaker connection) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 12.0 x 9.0 x 9.0" |
