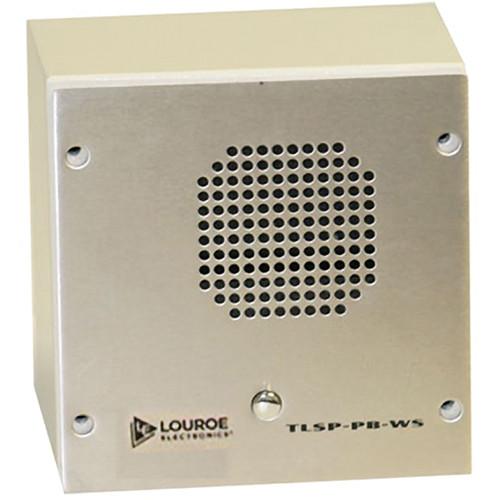

User Manual for Louroe TLSP-PB-WS Remote Call Station Click to enlarge the picture
Contents of the user manual for the Louroe TLSP-PB-WS Remote Call Station
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe TLSP-PB-WS Remote Call Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics TLSP-PB-WS Remote Call Station (Surface-Mount) is designed to activate a Louroe sound activated Base Station and to provide bi-directional communications. Both the microphone and speaker are mounted in a special design tone path for protection from vandalism. The tone path is mounted to the back of a 11 gauge stainless steel face plate. A vandal-resistant flush mount call button is used for activating the Louroe sound activated Base Station (ALA or DG series, sold separately). The call station may be mounted up to 1,000’ (305m) from the Base Station. A 6 x 6 x 4” (15 x 15 x 10cm) backbox is included. Note: Compatible only with Louroe Model ALA-4TB, ALA-8TB, DG-12II, and DG-25III alarming audio Base Stations.
4 Conductor wire consisting of: 2 conductor shielded, 20 gauge with 22 gauge drain (microphone connection); 2 conductor unshielded, 18 gauge (speaker connection). All in the same jacket. - 3" (7.6cm) speaker and microphone, internally mounted to a tone path for total protection
- Damage resistant 11 gauge stainless steel faceplate
- Tamper-proof mounting hardware included
- Vandal-resistant pushbutton
- May be mounted up to 1,000' (305m) from Louroe Base Station
- 6 x 6 x 4" (15 x 15 x 10cm) backbox included
- Application: Correctional facilities, parking structures, public access areas, transportation terminals, or any area where vandalism is a concern
In the Box Louroe TLSP-PB-WS Remote Call Station (Surface Mount) 6 x 6 x 4" Backbox Tamper-Proof Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe TLSP-PB-WS Remote Call Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-096 Specs | Output Impedance | Microphone: 600 W unbalanced (mic only) | | Frequency Response | Microphone: 40 Hz to 15 kHz ±1 dB
Speaker: 300 Hz to 4 kHz | | Current Drain | Microphone: 4 mA | | Output | Microphone: Line level (0 dB @ 1,000 Ω) | | Supply Voltage | Microphone: 12 VDC | | Power Rating | Speaker: 2 W | | Input | Speaker: 70 V constant | | Impedance | Speaker Voice Coil: 8 Ω | | Speaker Size | 3.0" (7.6 cm) | | Speaker Weight | 4.0 lb (1.8 kg) | | Dimensions (W x H x D) | Faceplate: 6.0 x 6.0" (15.2 x 15.2 cm)
Backbox: 6.0 x 6.0 x 4.0" (15.2 x 15.2 x 10.1 cm) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 12.0 x 9.0 x 9.0" |
