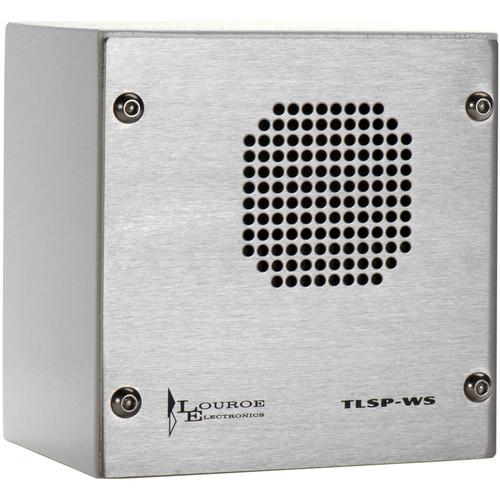

Product description The Louroe Electronics TLSP-S Vandal-Resistant 2-Way Speaker with Microphone is designed for correctional facilities or areas of high vandalism. When functioning as part of a Louroe Audio Monitoring System (sold separately), it provides 2-way talk / listen capability between the remote area (jail cells, etc.) and the Louroe Base Station (sold separately).The unit consists of an electret condenser microphone and a 3” (7.62cm) speaker fitted to a special tone path and mounted to an 11-gauge stainless steel faceplate. The tone path protects the microphone and speaker from vandalism.
The LE-086 Speaker is designed for surface mounting, and is suitable for use in parking structures, municipal buildings, juvenile detention centers, and any other area where vandalism is a concern. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped. - Designed for surface mounting
- Damage-resistant 11-gauge stainless steel faceplate
- 3" (7.62cm) speaker and microphone are mounted to a special tone path for protection against vandalism
- Tamper-proof mounting hardware secures the faceplate to the back box
- Can be mounted up to 1,000' (304.8m) from the Louroe Base Station (sold separately)
In the Box Louroe TLSP-S Vandal-Resistant 2-Way Speaker with Microphone Tamper-Proof Mounting Hardware Back Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe TLSP-S Vandal-Resistant 2-Way Speaker with Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-086 Specs | | | Type | Electret condenser | | Output | Line Level: 0 dB @ 1,000 Ω | | Output Impedance | 600 Ω unbalanced(microphone only) | | Frequency Response | 40 Hz to 15 kHz ± 1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | Wiring | Wire Type: West Penn 356 or equivalent
Wire Description: 4 conductor wires consisting of 2-conductor shielded wires, 20 gauge with 22-gauge drain (microphone connection) and 2-conductor unshielded wires, 18-gauge (speaker connection), all in the same jacket | | | | Power Rating | 2 W | | Input | 70 V constant | | Frequency Response | 300 Hz to 4 kHz | | Voice Coil | Impedance: 8 Ω | | Acoustic | 88 dB from 4' (1.22 m) @ 1 W input | | Speaker Size | 3.0" (76.2 mm) | | Dimensions | Back Box: 6.0 x 6.0 x 4.0" (15.2 x 15.2 x 10.1 cm)
Face Plate: 6.0 x 6.0" (152.4 x 152.4 mm) | | Weight | Net: 4.0 lb (1.8 kg) |
