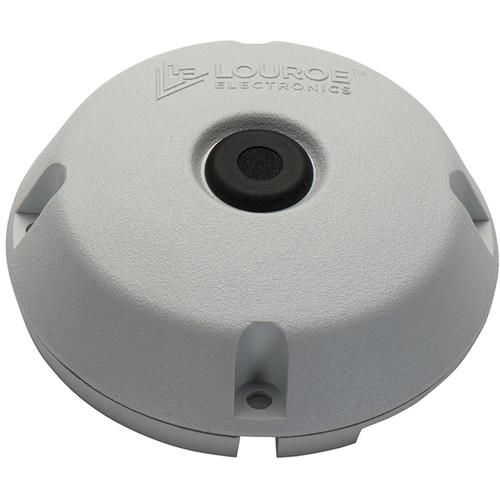

Product description The Verifact A Microphone from Louroe Electronics is an omni-directional, electret condenser microphone that is designed for ceiling or wall mounting.Housed in a high-impact ABS dome, this low-impedance microphone can pick-up sounds from within a coverage area of approximately 15' (4.57m). It comes with a built-in preamp with a sensitivity switch for lowering gain, and is suitable for use in convenience stores, warehouses, booking rooms, interrogation rooms, hospital observation rooms, parking structures, casino soft count, or anywhere CCTV cameras are installed. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone. This disclaimer must be affixed, in plain view, at all entrances to the premises where the microphones are installed. Wiring Requirements For Microphone Connection: Single-gang electrical box, not included
2-conductor 22-gauge shielded cable with a 24-gauge drain wire. - Microphone can pick up normal sounds from up to 15' (4.57m) away
- May be located up to 1,000' (304.8m) from base station
- Phantom powered from Louroe Base Station
- Microphone preamp contains a sensitivity switch for lowering gain
- Suitable for use in convenience stores, warehouses, booking rooms, interrogation rooms, hospital observation rooms, parking structures, casino soft count, or anywhere CCTV cameras are installed
UPC: 785583000707 In the Box Louroe Verifact A Microphone Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe Verifact A Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-070 Specs | | | Type | Electret condenser | | Output | Line level (0 dB @ 1 kΩ), unbalanced | | Frequency Response | 40 Hz to 15 kHz ±1 dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC, 500 mA | | Dimensions (Ø x H) | 4.0 x 1.5" (10.2 x 3.8 cm) | | | | Package Weight | 0.275 lb | | Box Dimensions (LxWxH) | 4.35 x 4.15 x 1.5" |
