User Manual for Louroe Verifact DV Microphone Click to enlarge the picture
Contents of the user manual for the Louroe Verifact DV Microphone
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe Verifact DV Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

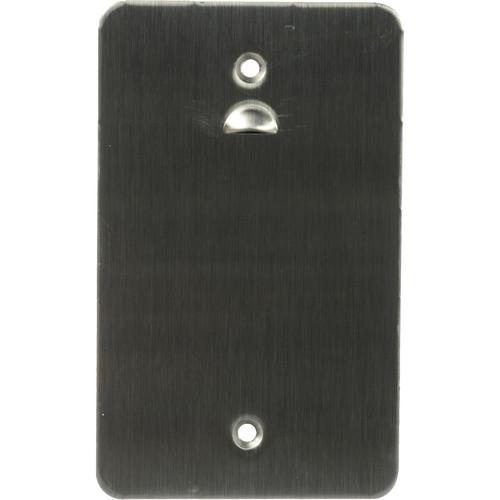

Product description The Verifact DV Microphone from Louroe Electronics is an omni-directional electret condenser microphone designed for areas with a high risk of vandalism. This microphone is to be installed onto a stainless-steel faceplate that fits into a single-gang electrical box (sold separately).
With a high sensitivity to low sound pressure, this low-impedance microphone can easily pick up sounds from within a 15’ (4.57m) radius. It comes with a built-in preamp with a sensitivity switch for lowering gain, and is suitable for use in convenience stores, warehouses, booking rooms, interrogation rooms, hospital observation rooms, parking structures, casino soft-count rooms, or anywhere CCTV cameras are installed. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone. This disclaimer must be affixed in plain view at all entrances to the premises where the microphones are installed.Wiring Requirements For Microphone Connection: Single-gang electrical box (not included)
2-conductor 22-gauge shielded cable with a 24-gauge drain wire. - High sensitivity to low sound pressure
- Microphone can pick up normal sounds up to 15' (4.57m) away
- May be located up to 1,000' (304.8m) from base station
- Phantom-powered from Louroe Base Station
- Microphone preamp contains a sensitivity switch for lowering gain
- Fits into single-gang electrical box (not included)
- Flush or surface mountable to a wall or ceiling
- Suitable for use in convenience stores, warehouses, booking rooms, interrogation rooms, hospital observation rooms, parking structures, casino soft count, or anywhere CCTV cameras are installed
UPC: 785583000691 In the Box Louroe Verifact DV Microphone Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe Verifact DV Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-069 Specs | | | Type | Electret condenser | | Output | Line level (0 dB @ 1 kΩ) | | Frequency Response | 40 Hz to 15 kHz ±1dB | | Current Drain | 4 mA | | Supply Voltage | 12 VDC | | Output Impedance | 600 Ω, unbalanced | | Dimensions (W x H) | Faceplate: 2.75 x 4.50" (6.99 x 11.43 cm) | | Back box | Single gang electrical box (not included) | | Weight | 4.50 oz (127.57 g) | | | | Package Weight | 0.355 lb | | Box Dimensions (LxWxH) | 5.7 x 3.1 x 1.95" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
