User Manual for Lowel Ambi Kit Click to enlarge the picture
Contents of the user manual for the Lowel Ambi Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Ambi Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

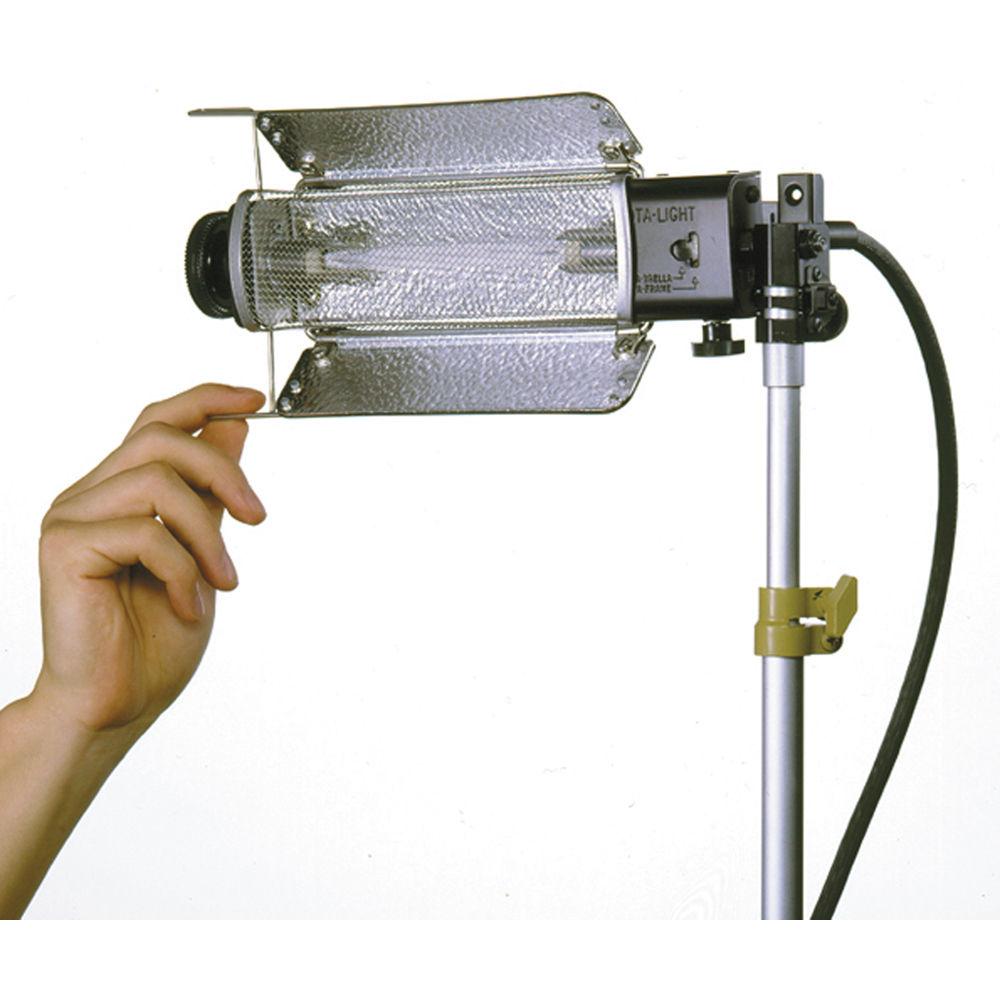

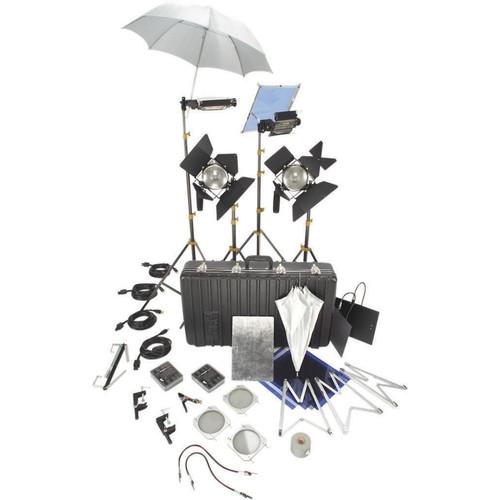

Product description This is a Lowel Ambi Kit, centered around two Omni-light focus floods, and two Tota-light floodlights. It includes barndoors, umbrellas, flags, scrims, gel frames, gels, mounts, clamps, gaffer tape, stands, and TO-84Z large hard kit case. Compact, rugged and versatile, the broad-throw Tota-light can be used with its umbrella or gel frame and diffusion as a soft key light, fill light, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-lights are also widely used for photographic copy work.

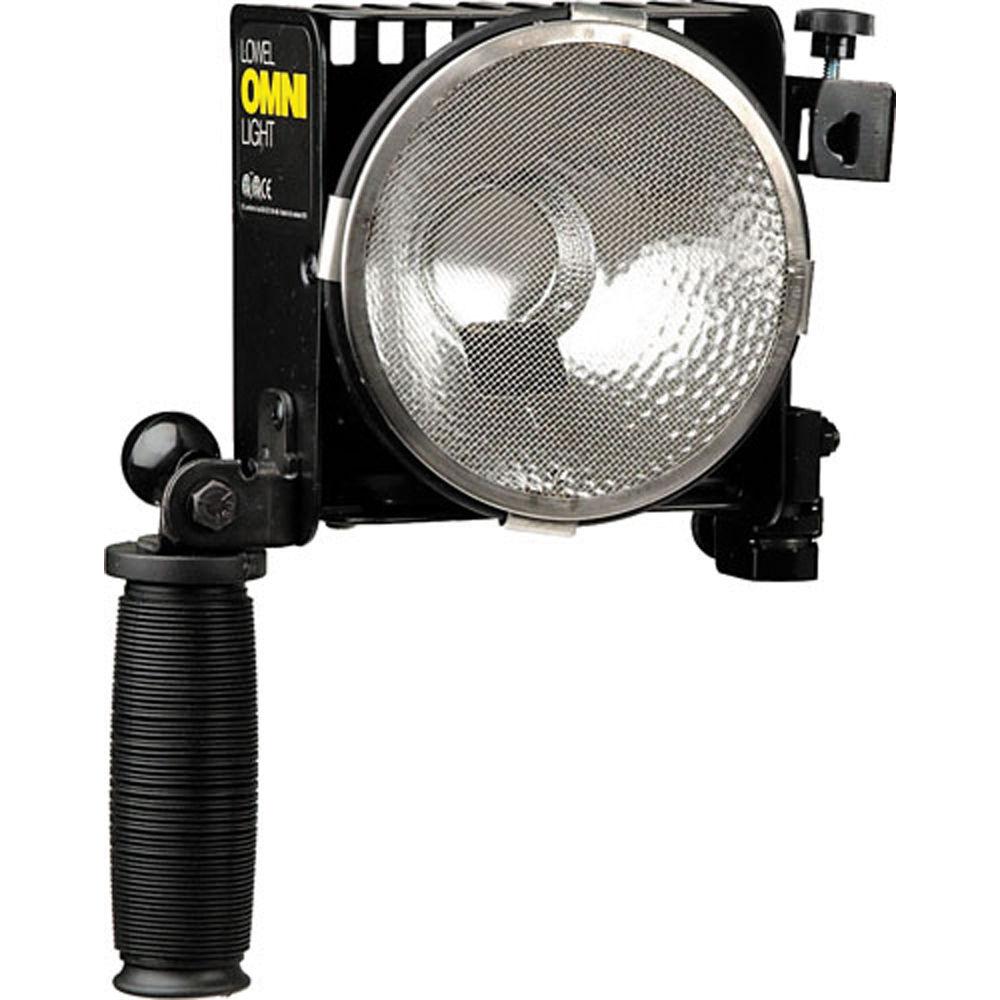

When fitted with an EMD 750W bulb, each Tota-light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10 ft (3 m). The wide focusing range of the Omni-light makes it a flexible key light or backlight. Add diffusion or an umbrella, and it's a soft fill source. Available with a host of accessories and built for heavy-duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an FTK 500W bulb each Omni-light will emit a beam of 75 footcandles at full flood, and 475 footcandles at full spot, from a distance of 10 ft (3 m). Although this kit is supplied for use with 120 AC voltage, it can function with 220-240 AC and 12-30 DC voltage, with the appropriate bulbs, adapter plugs or cables, and power supplies (available separately). - Use the included flags, barndoors, scrims, gels and umbrellas to control the shape, color, quality and intensity of the lights
- The kit case holds everything safely, including the light stands, for storage and transport

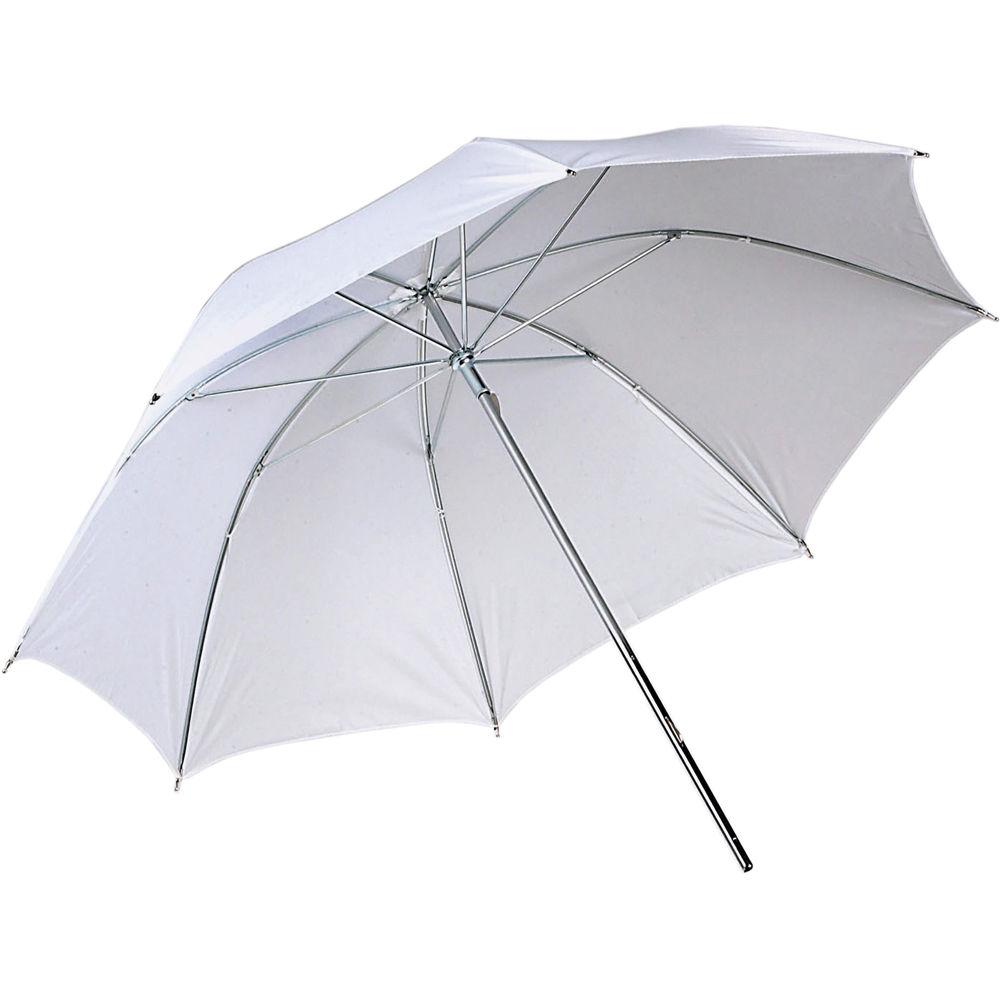

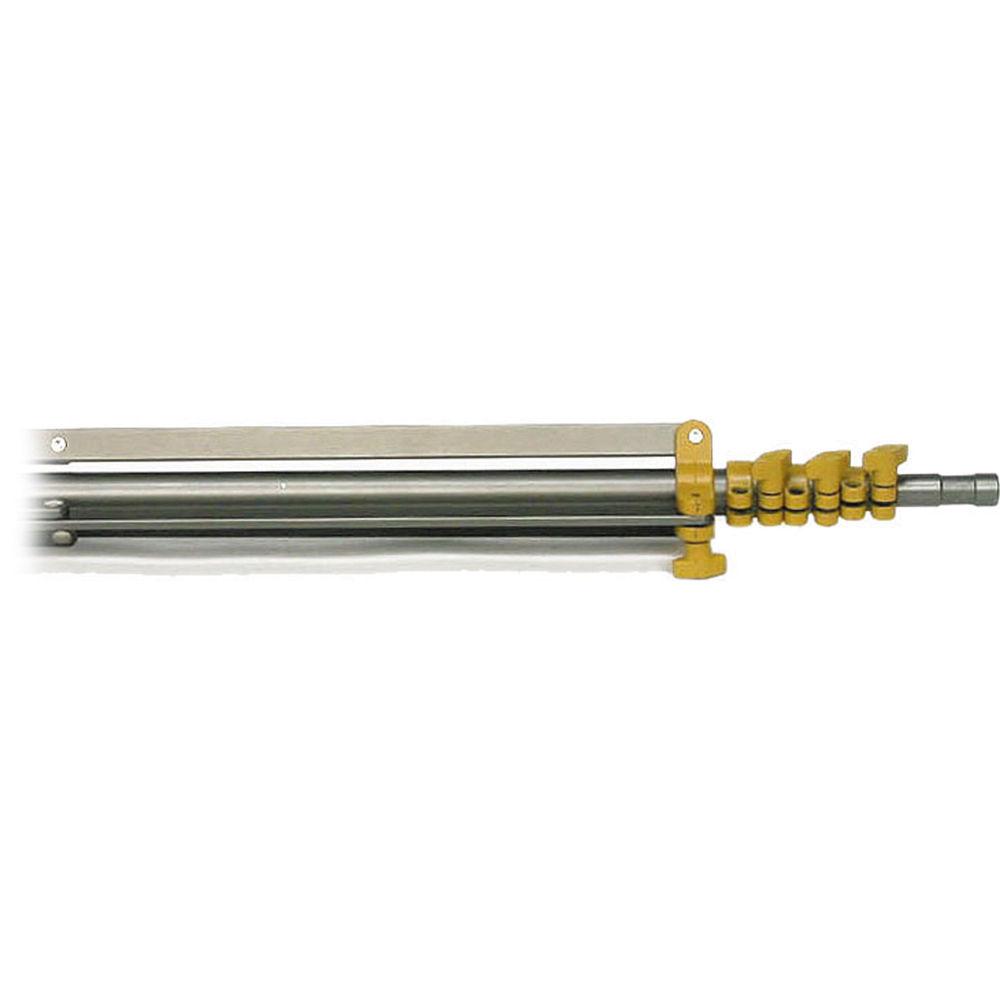

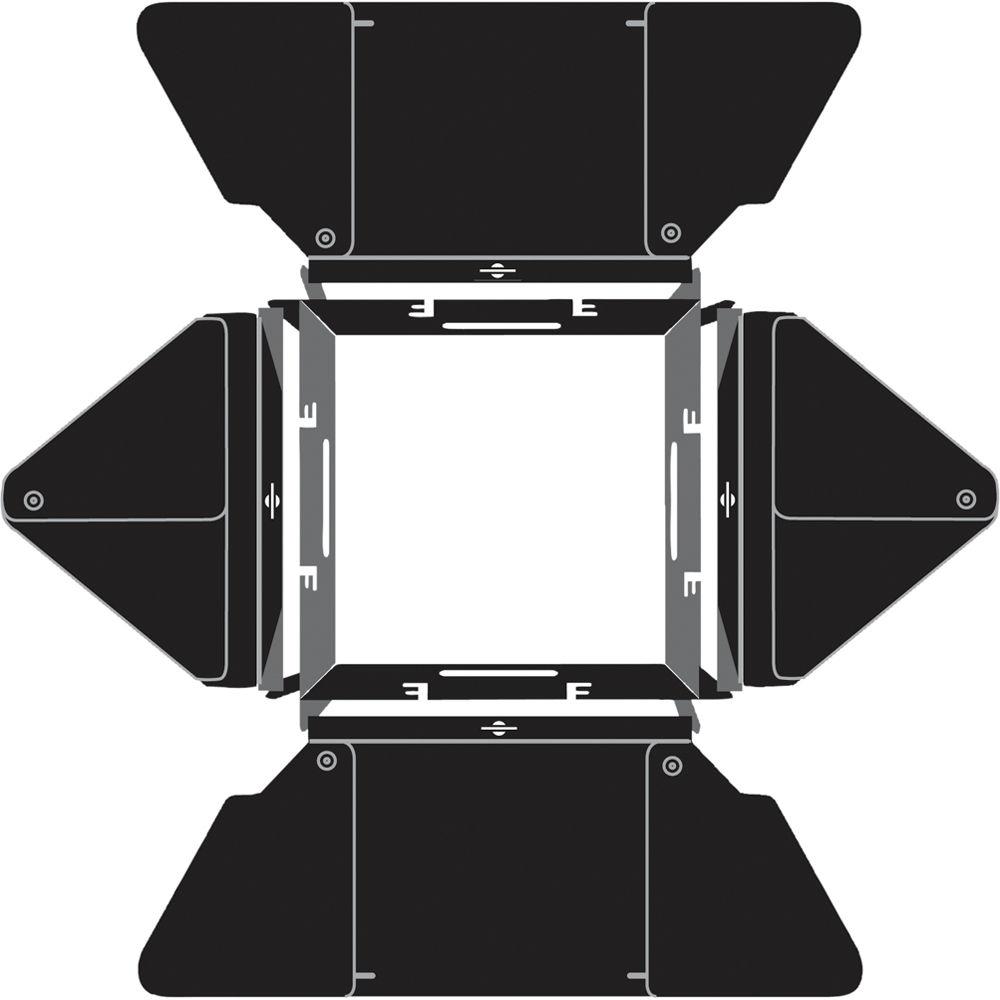

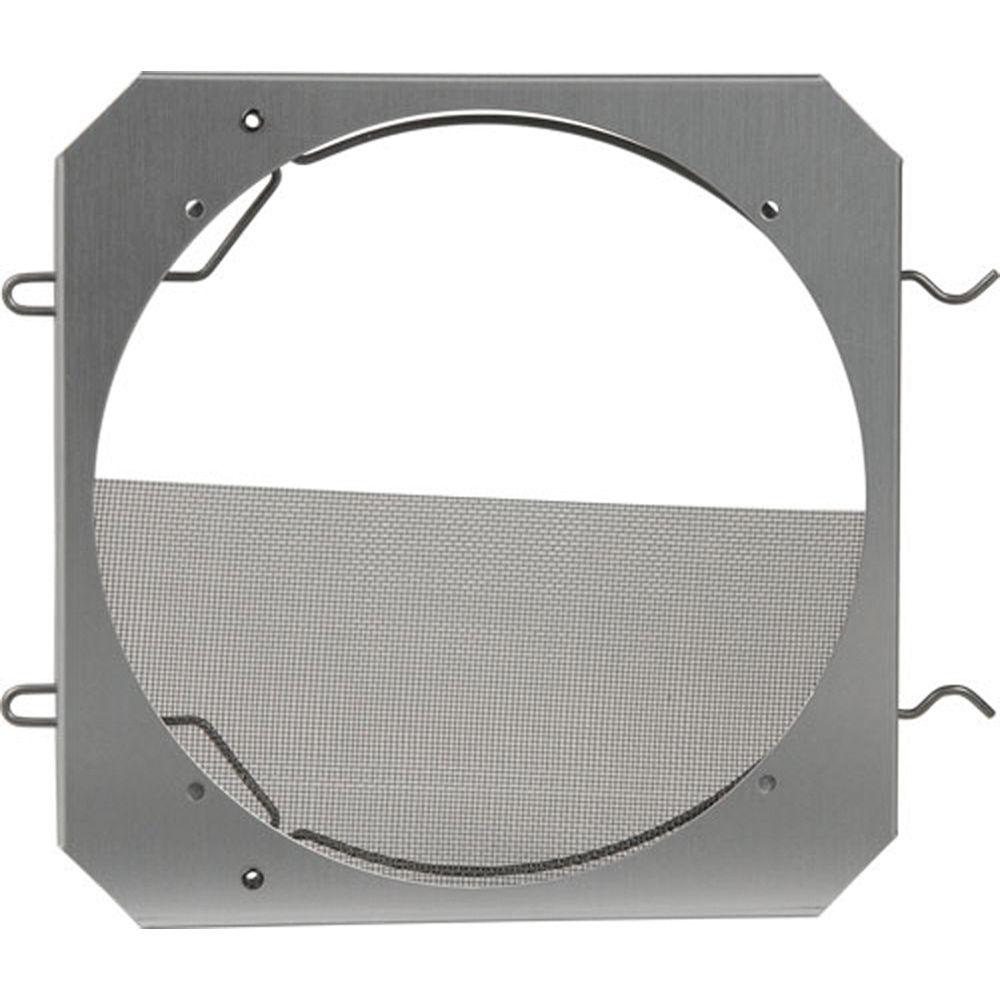

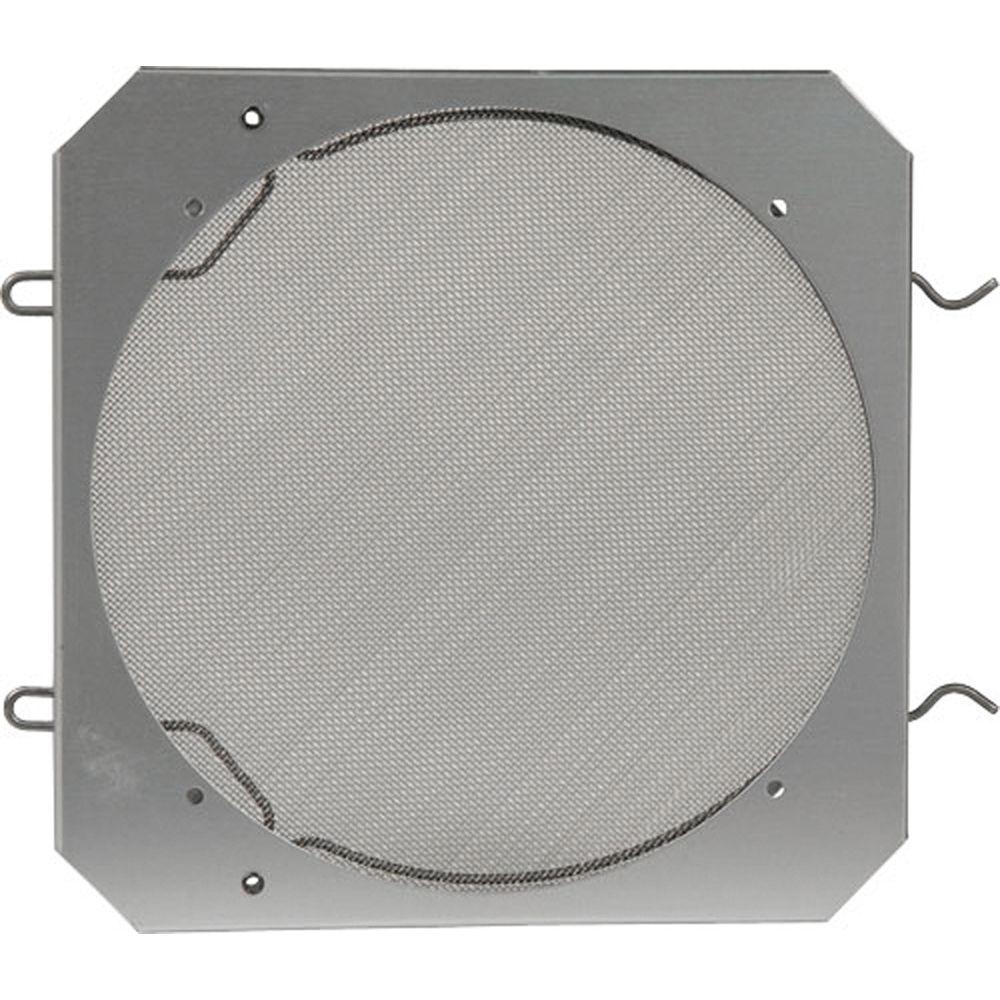

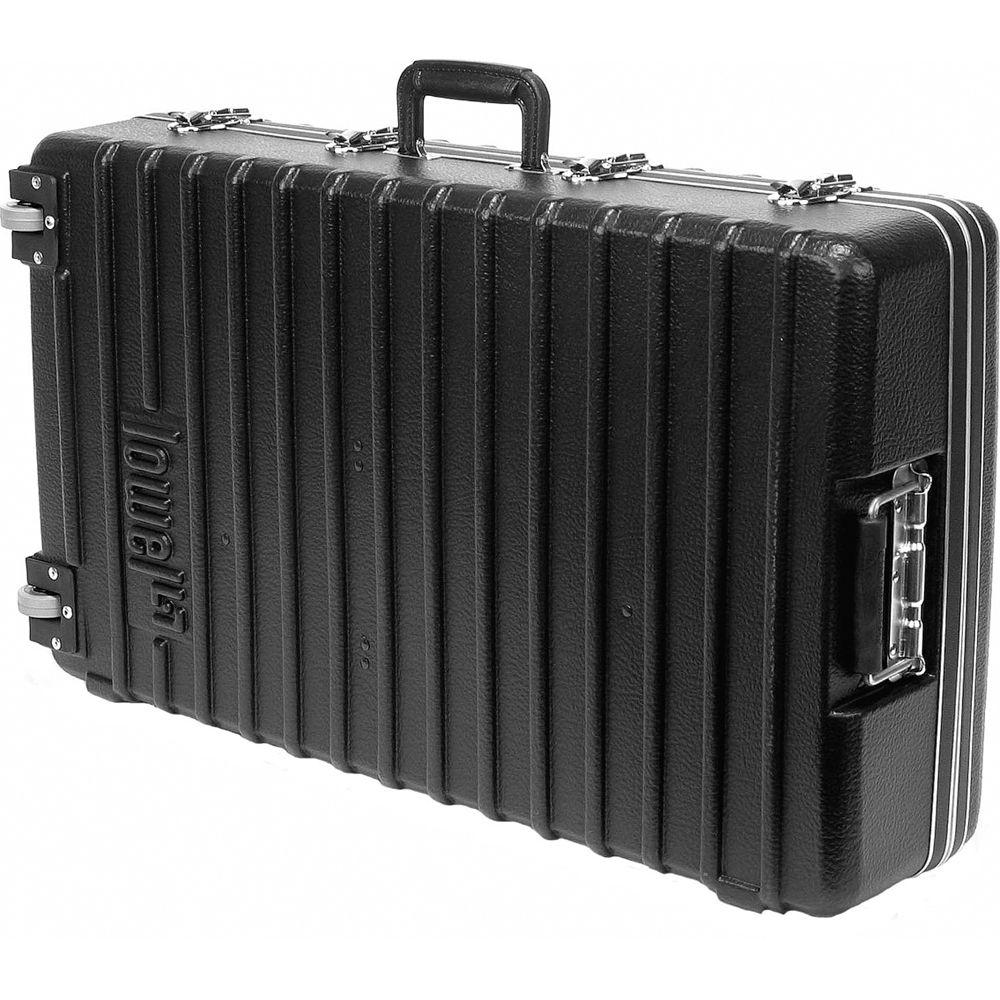

UPC: 841274008411 In the Box Lowel Ambi Kit 2 x Tota-Light Tungsten Flood Light (120-240 VAC) 2 x EMD Lamp - 750W/120V 2 x Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) 2 x FTK Lamp - 500 Watts/120 Volts 4 x Omni Light Stand (9') 2 x Complete 4-Leaf Barndoor for Omni Light 2 x Full Single Scrim for Omni-Light (5 1/8") 2 x Tota-Brella - Silver - 27" 4 x Tota/Omni Gel Frame for 10x12" Gels 2 x Tota/Omni Assorted Gels - Set of 5 (10 x 12") 2 x Tota-Flag (8 x 12") 2 x Flexi-Shaft - Pack of 2 2 x Tota-Clamp 2 x Lampak for Tota-Light or Omni-Light rfyfvzafseczucrqzbcaztszuerycb 5-1/8" Half Scrim for Omni-Light Tota-flector 8x12" Tota-Tatch rfyfvzafseczucrqzbcaztszuerycb Tota-Mount Pro Gaffer Tape (2" x 12 yd, Black) Molded Tota/Omni 84 Case - 29.5x17x7" (75x43.2x17.8cm) Two-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Ambi Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel TO-95Z Specs | Rating | Tota-light: 750 watts, 120-240VAC
Omni-light: 500 watts, 120-240VAC/12-30VDC | | Socket (Lampholder) | Tota-light: R7s double-ended
Omni-light: 2-pin | | Lens (Condenser) | Tota-light: Not applicable
Omni-light: Double parabolic peened reflector | | Reflector (Mirror) | Textured aluminum | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | 16' with inline switch, 120V grounded Edison plug | | Focusing | Tota-light: Not applicable
Omni-light: Continuously variable | | Weight | Tota-light: 2.25 lbs (1 kg)
Omni-light: 2.6 lbs (1.9 kg) | | Dimensions | Tota-light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Omni-light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Kit in Case: 29.5 x 17 x 7" (74.9 x 43.2 x 17.8 cm) | | Kit Weight | 43 lbs (19 kg) | | | | Package Weight | 47.77 lb | | Box Dimensions (LxWxH) | 32.0 x 20.0 x 10.4" |
