User Manual for Lowel Basically 3 Kit, 230V Click to enlarge the picture
Contents of the user manual for the Lowel Basically 3 Kit, 230V
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Basically 3 Kit, 230V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

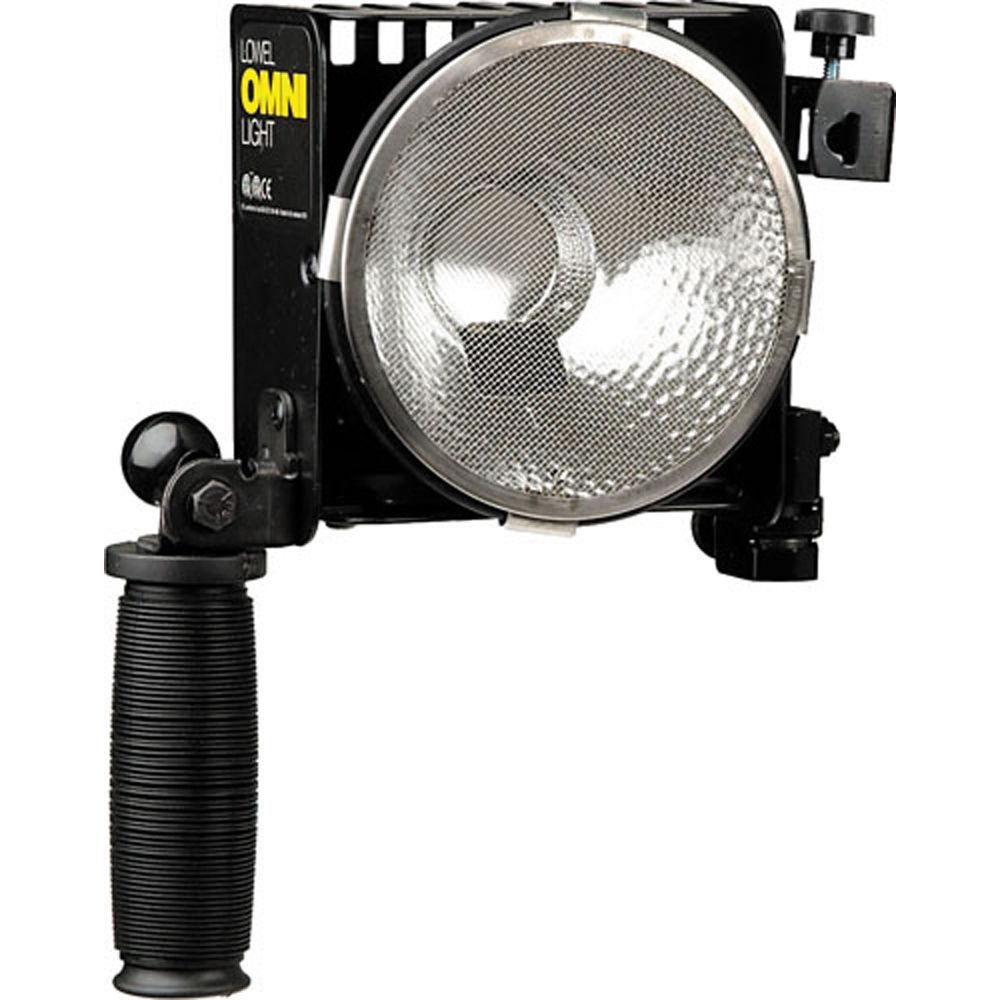

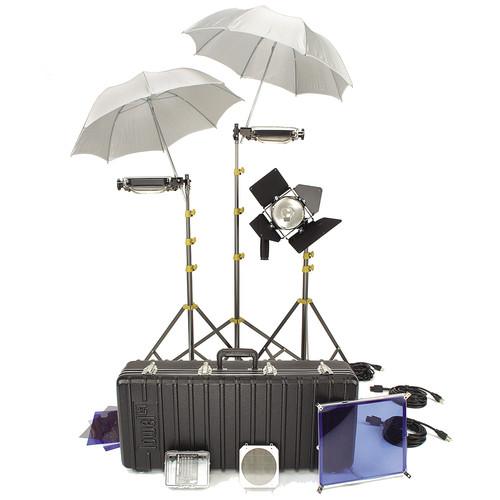

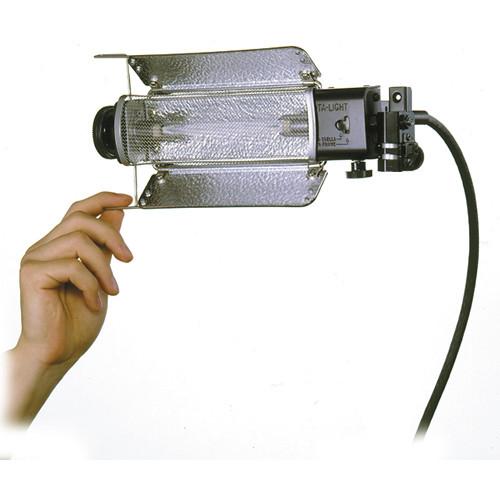

Product description This is a Lowel Basically 3 Kit, 230V. It combines two of the most popular fixtures in the Lowel line-up--the Tota-light floodlight, and the Omni-light focusing flood. This kit is equipped for 230V AC current.Compact, rugged and versatile, the broad-throw Tota-light can be used with its umbrella or gel frame and diffusion as a soft key light, fill light, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-lights are also widely used for photographic copy work.The wide focusing range of the Omni-light makes it a flexible key light or backlight. Add diffusion or an umbrella, and it's a soft fill source. Available with a host of accessories and built for heavy-duty long life, the popular Omni is the perfect companion to the Tota.Each Tota-light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3 m). When fitted with a 500W bulb and standard reflector, the Omni-light will emit a beam of 75 footcandles at full flood, and 475 footcandles at full spot, from a distance of 10' (3 m). - Multi-Use
-
- Each fixture can operate with 120-240VAC current, with the appropriate bulb and adapter plug
- The Omni-light can also operate with a 12V or 30V DC power source, with the appropriate bulb and cable--all available separately
- Light Shaping
- Use the gels, scrims, barndoors and umbrella to alter the color, shape and quality of the light

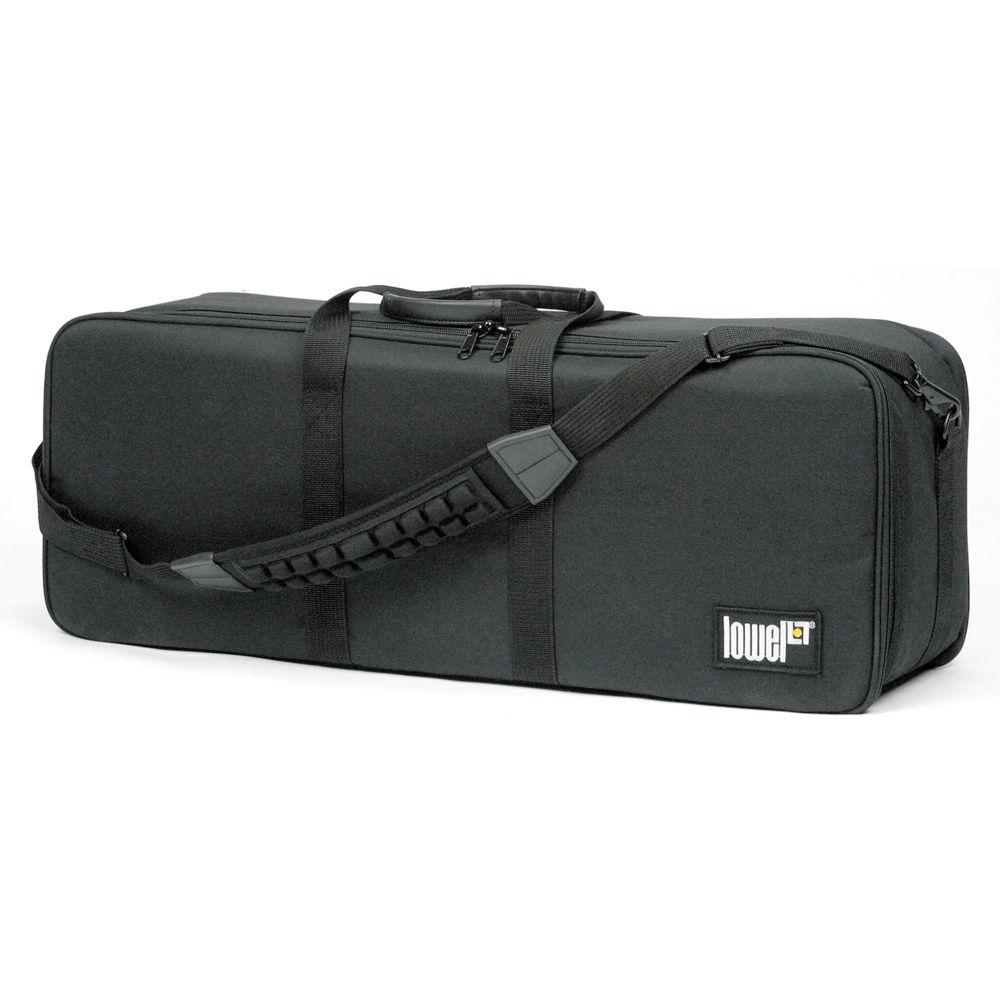

- Kit Case
- The kit case holds it all safely, including the light stands, for storage and transport

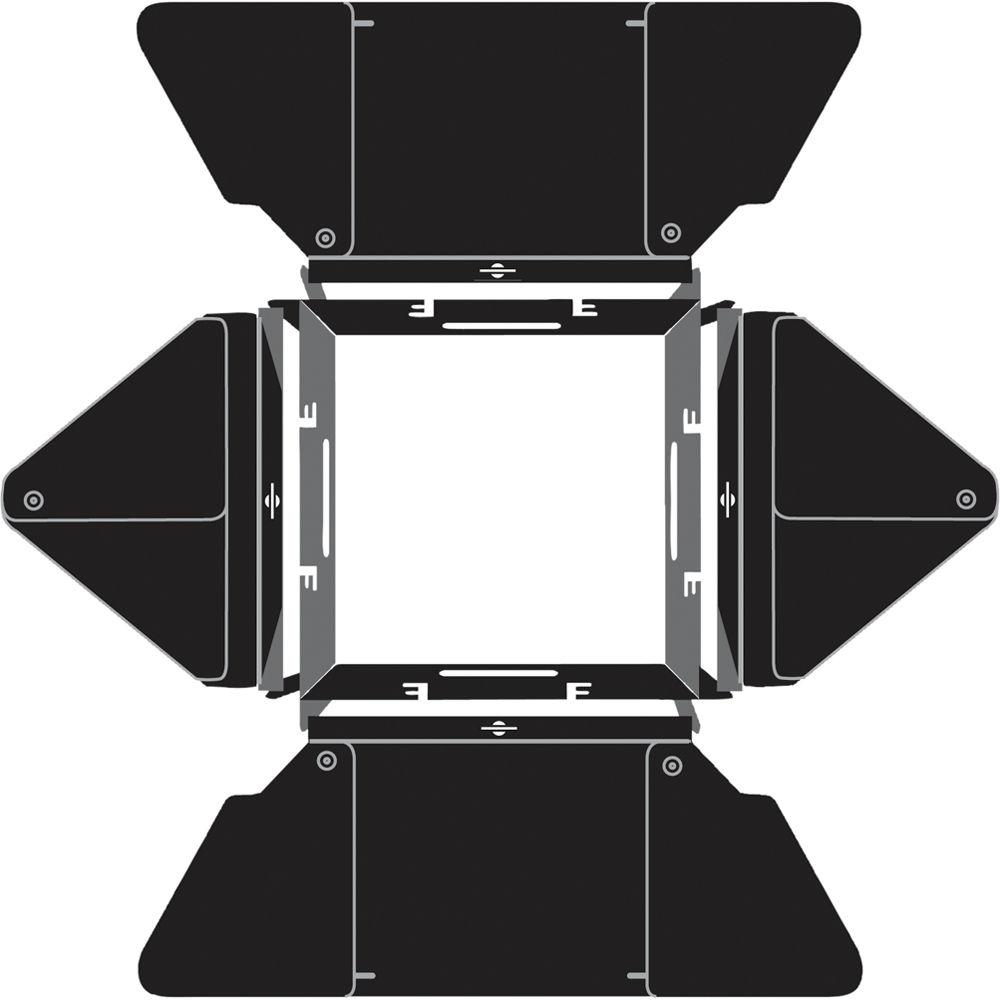

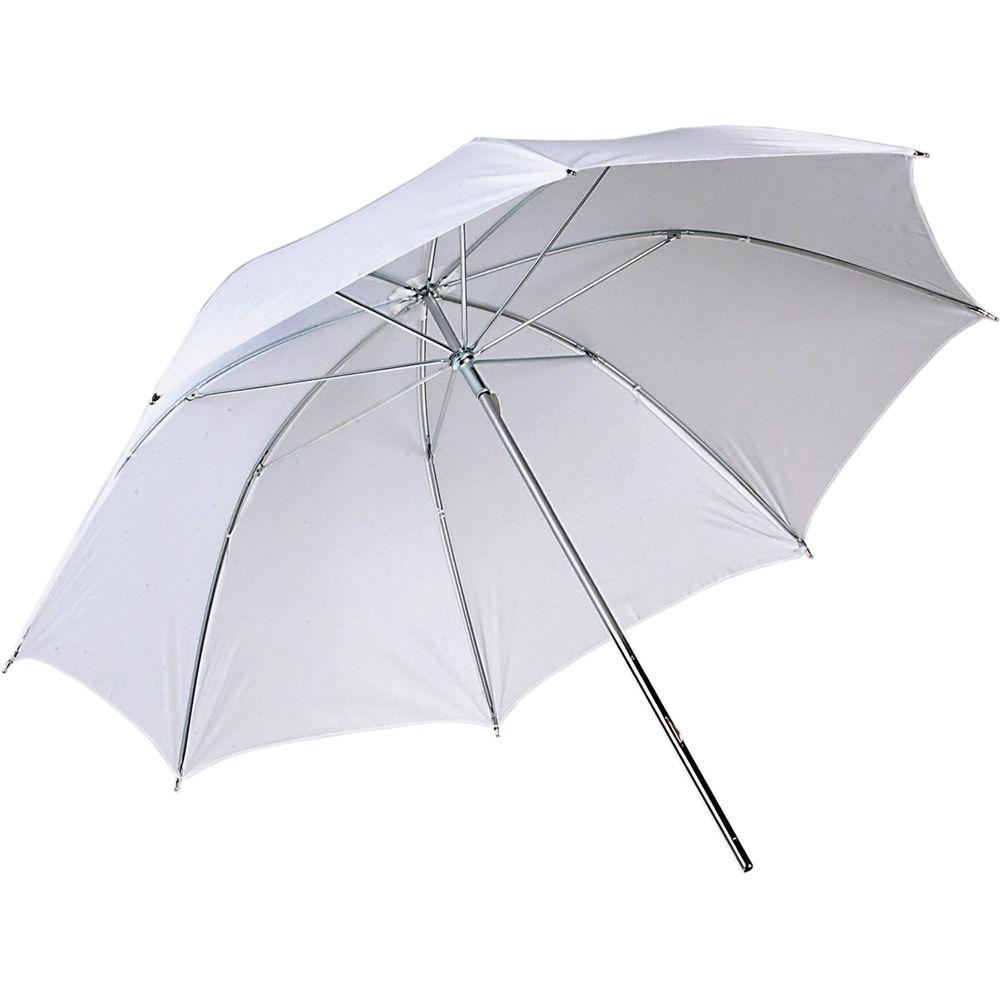

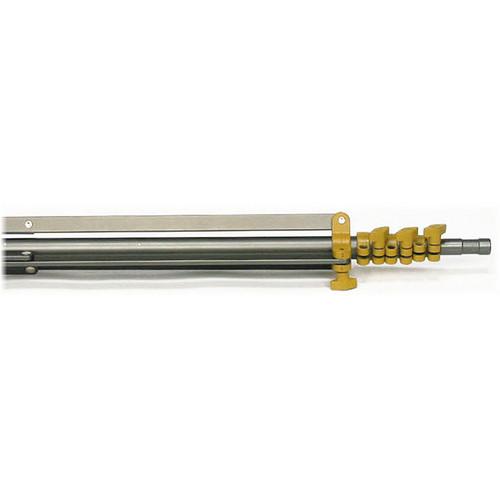

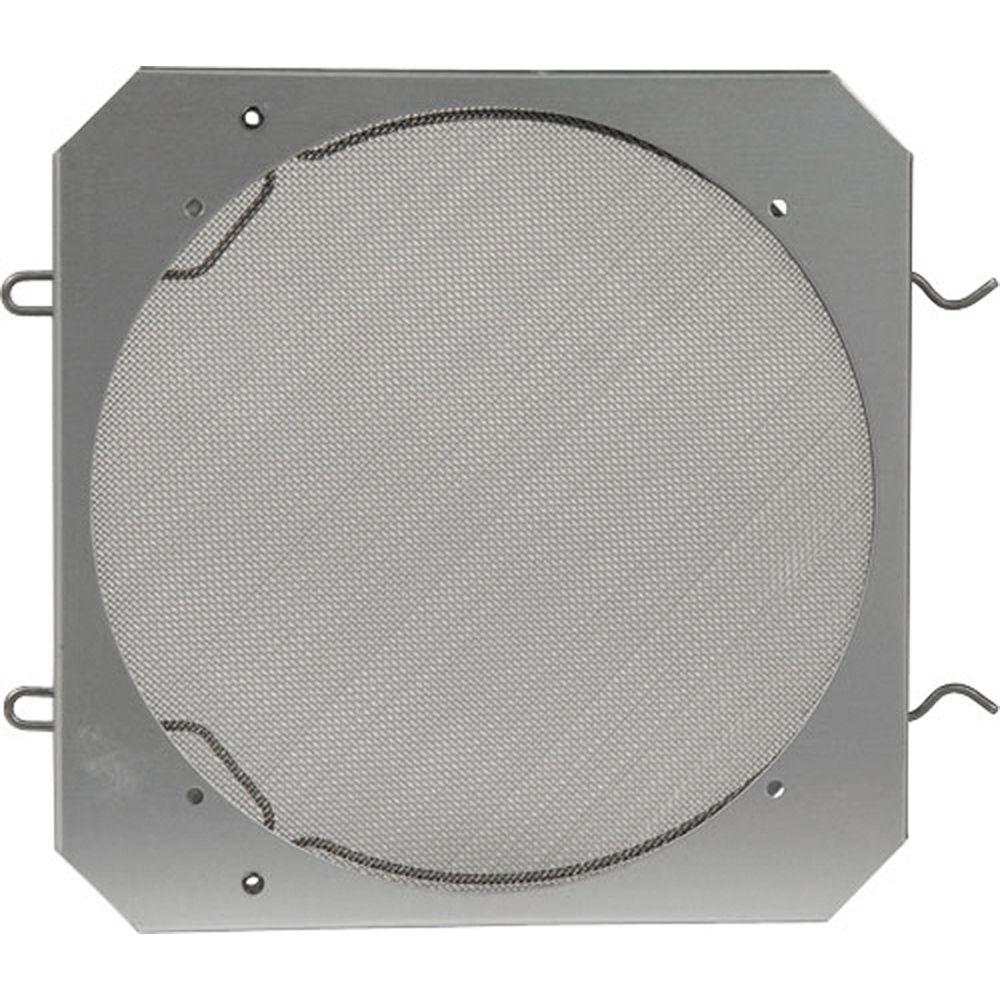

UPC: 841274010162 In the Box Lowel Basically 3 Kit, 230V 2 x Tota-Light Tungsten Flood Light (120-240 VAC) Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) 2 x EMF Lamp (800W, 220-240V) Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) JCD Lamp - 500W/240V 3 x Omni Light Stand (9') Complete 4-Leaf Barndoor for Omni Light Full Single Scrim for Omni-Light (5 1/8") 2 x White 27" Tota-Brella Tota/Omni Gel Frame for 10x12" Gels Lampak for Tota-Light or Omni-Light Tota/Omni Assorted Gels - Set of 5 (10 x 12") TO-83 Case Multi-system Hard Case zytddyyvxcrzctxyevwyswyfstdbuweddzarew Two-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Basically 3 Kit, 230V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel TO973ZE Specs | Rating | Tota-light: 750 watts/120-240VAC
Omni-light: 500 watts/120-240VAC/12-30VDC | | Socket (Lampholder) | Tota-light: R7s double-ended
Omni-light: 2-pin ceramic | | Lens (Condenser) | Not applicable | | Reflector (Mirror) | Tota-light: Peened aluminum
Omni-light: Double parabolic peened reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | 16' with inline switch, 120VAC grounded Edison plug | | Focusing | Tota-light: Not applicable
Omni-light: Continuously variable, side lever | | Weight | Tota-light: 2.25 lbs (1.02 kg)
Omni-light: 2.6 lbs (1.9 kg) | | Dimensions | Tota-light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Omni-light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Kit in Case: 29.5 x 13 x 7" (74.9 x 33 x 17.8 cm) | | Kit Weight | 30 lbs (13.6 kg) | | | | Package Weight | 33.85 lb | | Box Dimensions (LxWxH) | 31.5 x 19.5 x 8.5" |
