User Manual for Lowel Close Quarters Kit Click to enlarge the picture
Contents of the user manual for the Lowel Close Quarters Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Close Quarters Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

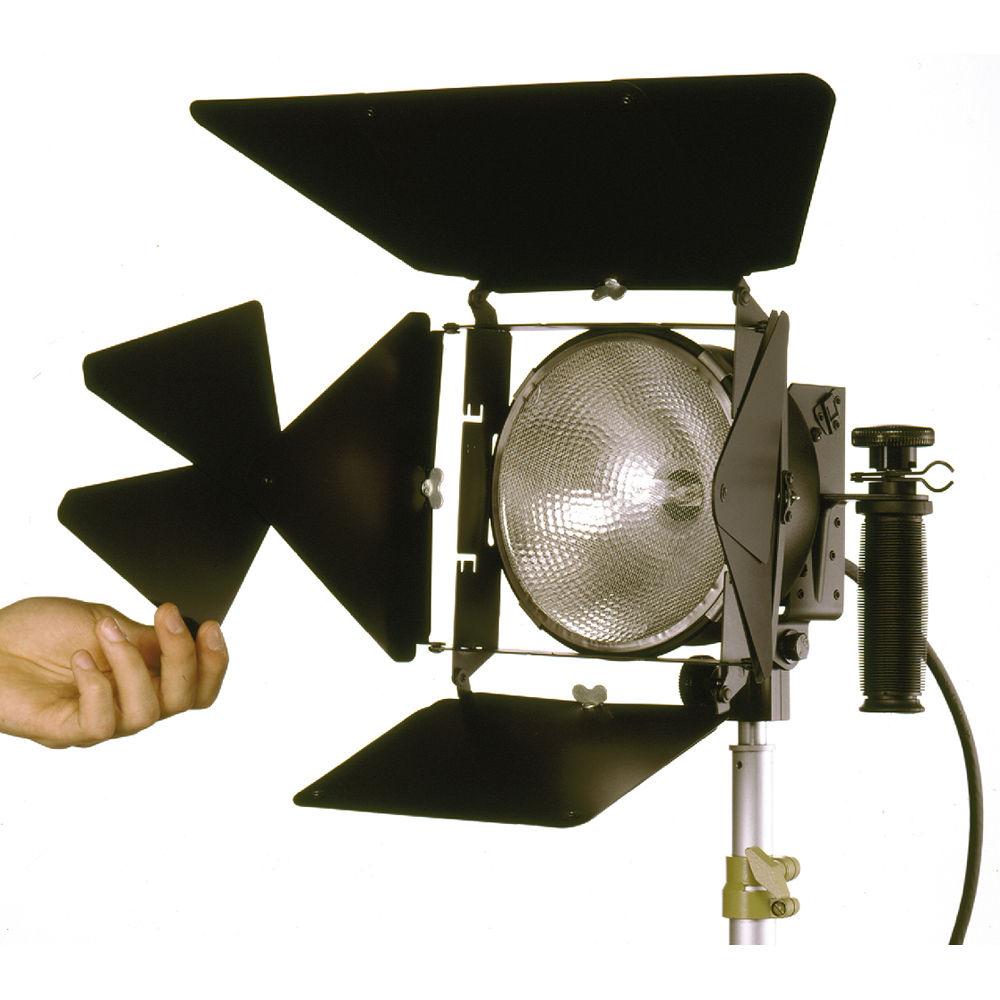

Product description This is the Lowel Close Quarters Kit with four DP Lights. The DP Light is a long-time Lowel workhorse. It makes a powerful key, backlight, or background light. Add an umbrella or diffusion for soft key or fill light. Swap to the super-spot reflector for long throws, or customize it with a variety of other accessories. The DP is built for a long, multi-use life.This is a 4-light kit complete with barndoors, gel frames, gels, scrims, large space clamp, light stands, and a case. The fixtures are supplied with a 120 VAC power cord. Change the cord or use a plug adapter to use the DP Light anywhere in the world with the appropriate bulb. When fitted with a 1000W, 120V bulb and the supplied reflector, this fixture will emit a beam of 88 footcandles at full flood and 711 footcandles at full spot from a distance of 10' (3m). - A true focusing knob moves the beam-angle from spot to flood
- A built-in, rubberized folding grip offers the user the capability to use the DP Light as a hand-held light
- The peened, parabolic reflector provides non-crossover beam with axial filament orientation for improved shadow and longer gel life
- The scrims, barndoors, and gels alter the quality, shape, intensity, and color of the lights

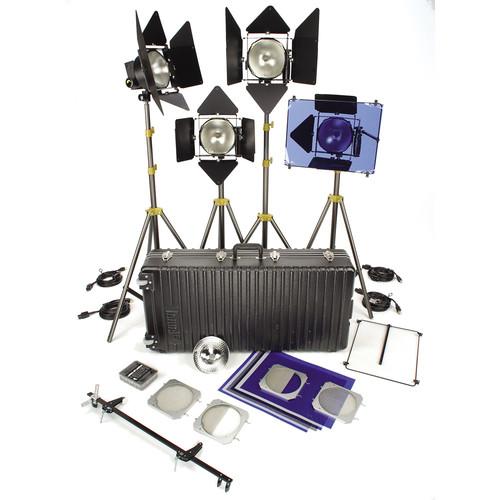

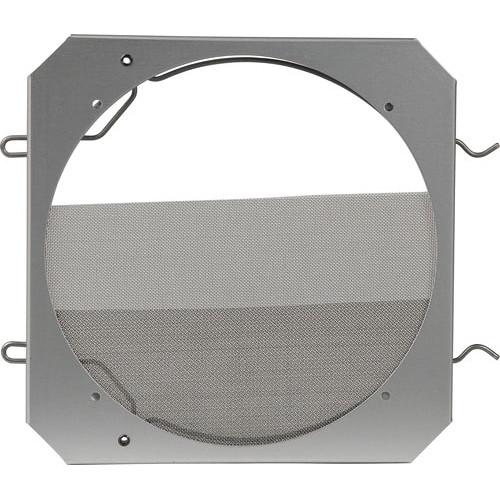

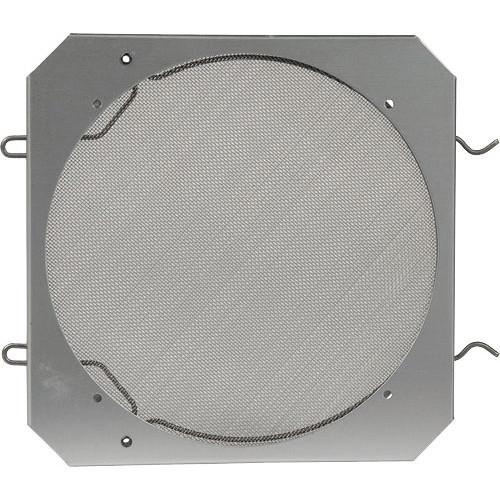

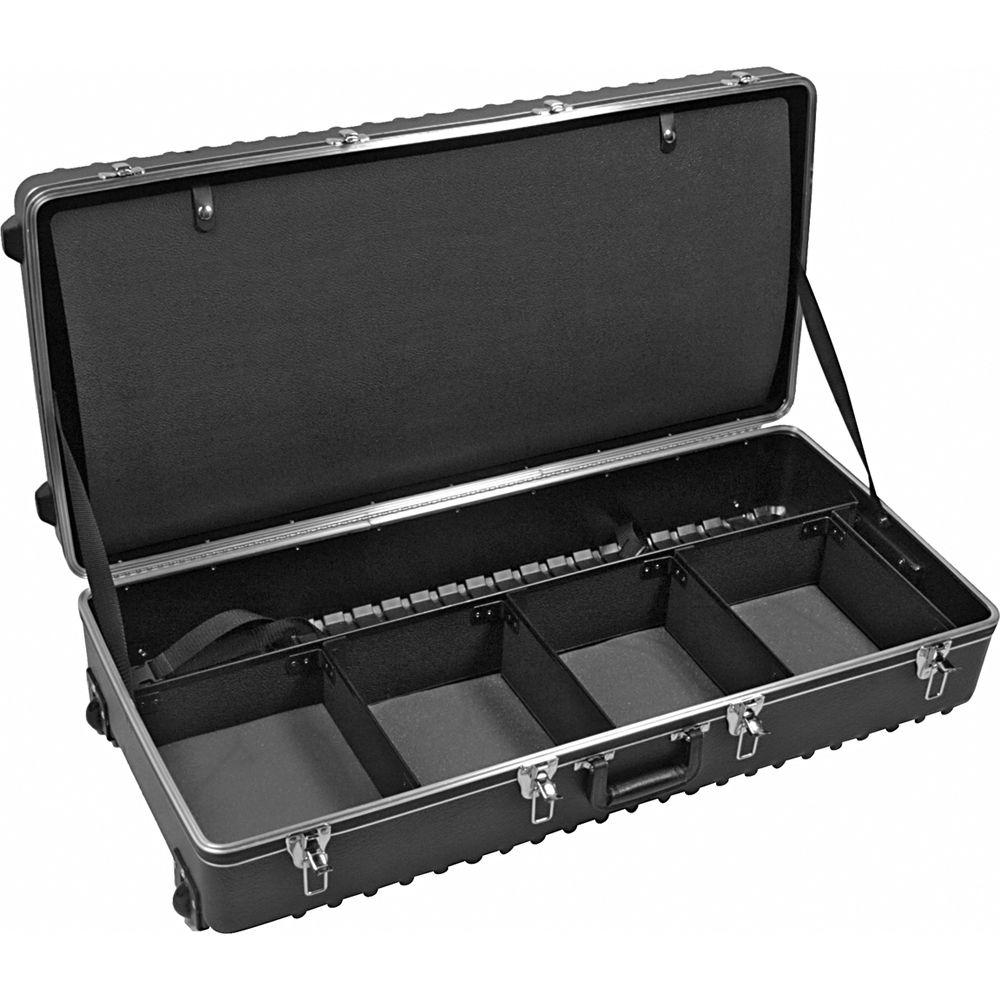

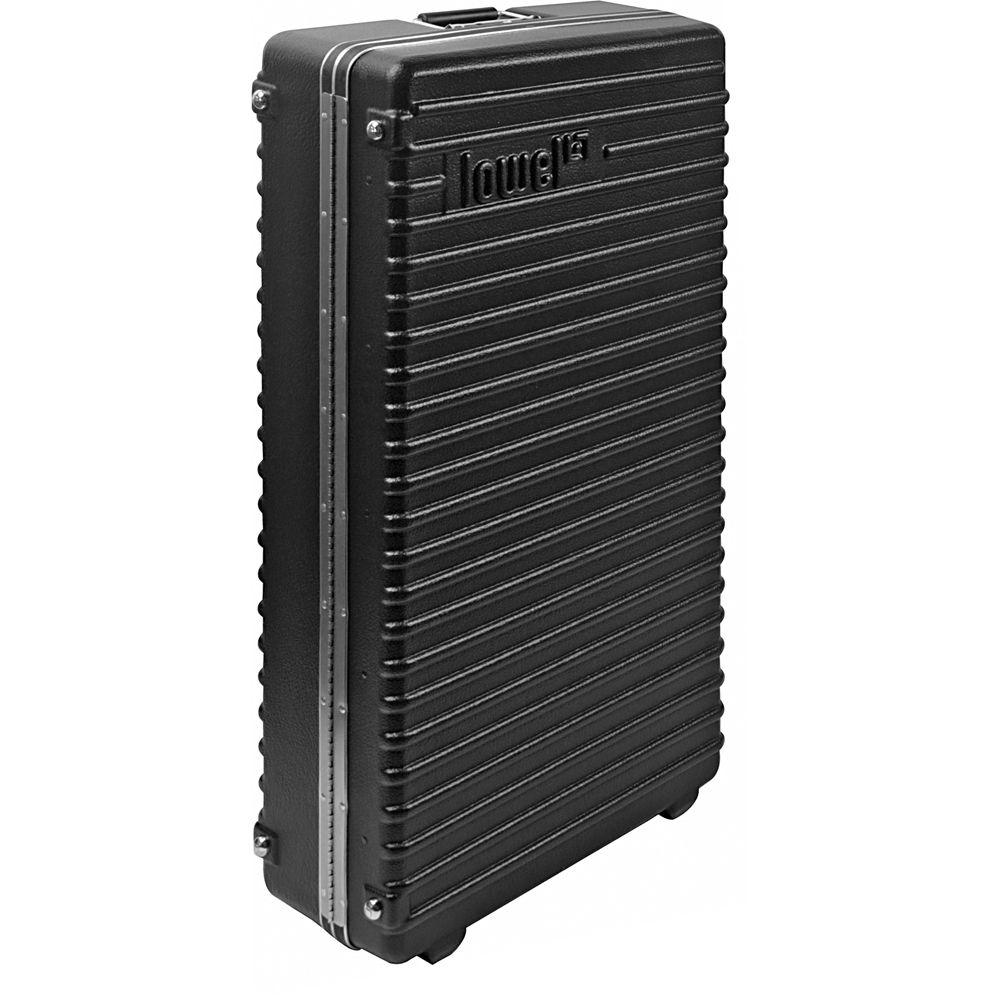

UPC: 841274002051 In the Box Lowel Close Quarters Kit 4 x DP Focus Flood Light (120-240 VAC) 4 x Complete 4-Leaf Barndoor Set for DP Light 4 x FEL Lamp - 1000 Watts/120 Volts 4 x KS Light Stand (9') #3 Super-Spot Reflector for DP Light 2 x 5-1/4" Full Scrim for DP Light 5-1/4" Half Scrim for DP Light 5-1/4" Graduated Scrim for DP Light 2 x DP Frame for DP Light Day Blue Gel for DP Light (4-Pack) Mixed Gels for DP Light - Set of 4 Lampak for DP Light Multi Case SC-10 Space-Clamp (Large) Limited 2-Year Warranty on Fixtures Limited 5-Year Warranty on Stands Limited 1-Year Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Close Quarters Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DP Light Specs | Rating | Each Fixture: 1000 W maximum | | Socket (Lampholder) | G9.5 2-pin metal-ceramic | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Peened parabolic | | Mounting | 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' / 4.9 m, #16/3, 120 V, 3-prong Edison plug | | Focusing | Continuously variable | | Weight | Each Fixture: 3.6 lb / 1.6 kg | | Dimensions | Each Fixture: 8.75 x 7 x 8.25" / 22.2 x 17.8 x 21 cm
Kit in Case: 37.5 x 17.75 x 9" / 95.3 x 45.1 x 22.9 cm | | Kit Weight | 57 lb / 25.9 kg | | | | Package Weight | 62.4 lb | | Box Dimensions (LxWxH) | 40.3 x 20.4 x 9.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
