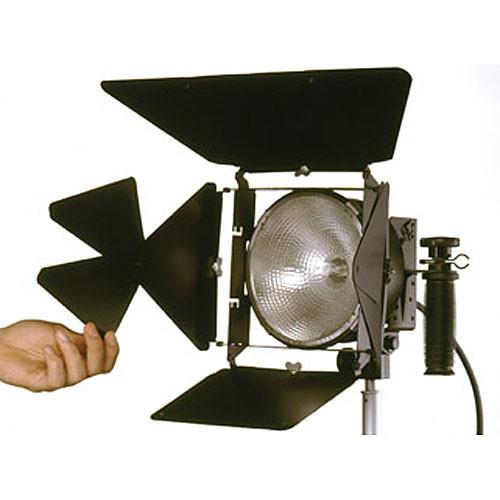

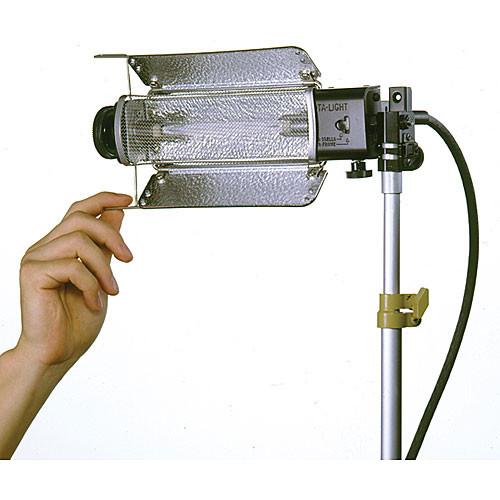

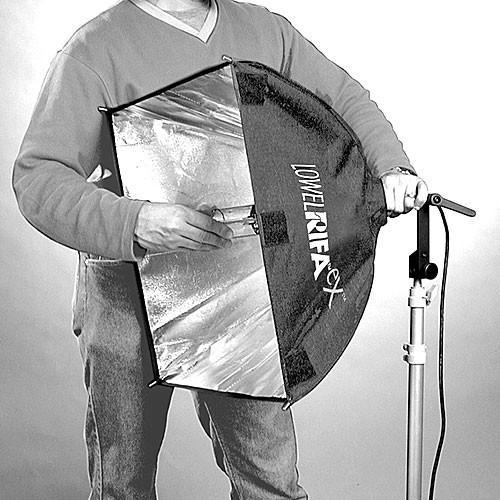

Product description This is a Lowel DP Core 98 Kit with three lights. The DP Light focusing flood is a long-time Lowel workhorse. It's a powerful key, backlight or background light. Add an umbrella or diffusion for soft key or fill light. Swap to the super-spot reflector for long throws, or customize it with a variety of other accessories. The DP is built for a long multi-use life.Compact, lightweight, and self-contained, the Rifa-Lite EX88 uses a simple umbrella design to achieve its quick and easy setup and strike capabilities. Optional socket adapters allow the use of different wattage bulbs, including fluorescent. Compact, rugged and versatile, the broad-throw Tota-light is a Lowel favorite. It can be used with its umbrella or gel-frame and diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota-lights are also widely used for photographic copy work. - Rifa eX 88 Softbox Light

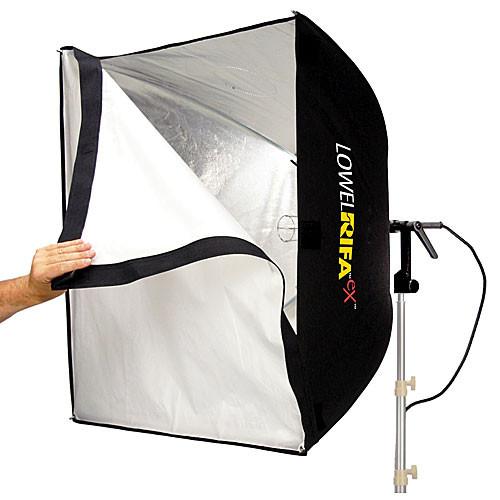

- The woven-glass fabric, heat-resistant front diffuser of the Rifa eX88 is 32 x 32" (81 x 81 cm), and provides illumination with soft shadows
- Light Shapers
- The umbrella, barndoors and gels alter the quality, shape, intensity and color of the lights

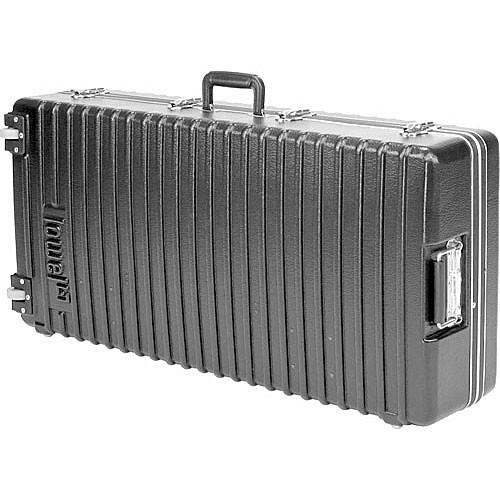

- Multi Kit Case
- Large, wheeled case has ample room for all the kit components

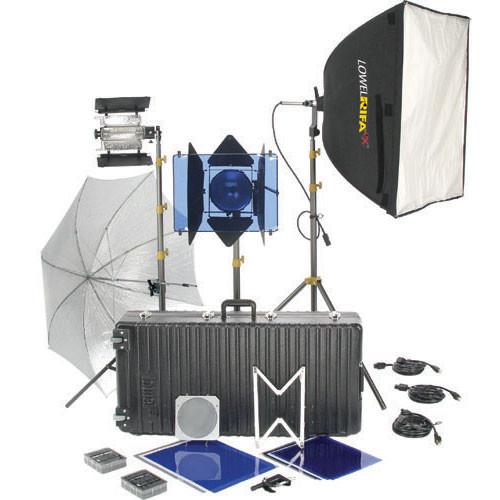

UPC: 841274002167 In the Box Lowel DP Core 98 Kit DP Focus Flood Light (120-240 VAC) 2 x FEL Lamp - 1000 Watts/120 Volts Complete 4-Leaf Barndoor Set for DP Light LC88EX Rifa-Lite eX88 1000 Watt Softbox Light (120-240VAC) Tota-Light Tungsten Flood Light (120-240 VAC) EMD Lamp - 750W/120V 3 x KS Jr. Light Stand (7.6') Tota/Omni Gel Frame for 10x12" Gels White 27" Tota-Brella Lobo Tota/Omni Assorted Gels - Set of 5 (10 x 12") Tota-Clamp Diffused Glass for DP Light 2 x Tota-Shade (One Leaf) DP Frame for DP Light Lampak for DP or Tota Light Lampak for DP Light Multi Case Two-Year Manufacturer's Warranty on Fixtures Five-Year Manufacturer's Warranty on Stands One-Year Manufacturer's Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DP Core 98 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DPR-98Z Specs | Rating | DP Light, Rifa-Lite EX88: 1000 watts
Tota-light: 750 watts | | Socket (Lampholder) | DP Light, Rifa-Lite EX88: 2-pin
Tota-light: R7s | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | DP Light: Peened parabolic
Rifa-Lite EX88: Silver interior softbox
Tota-light: Not applicable | | Mounting | 5/8" stand or stud | | Yoke | Not Applicable | | Cable | DP Light: 16' #16/3
Rifa-Lite EX88: 4' captive cable
Tota-light: 16' with inline switch | | Focusing | DP Light: Continuously variable
Rifa-Lite EX88, Tota-light: Not applicable | | Weight | DP Light: 3.6 lbs (1.6 kg)
Rifa-Lite EX88: 2.5 lbs (1.1 kg)
Tota-light: 2.25 lbs (1.02 kg) | | Dimensions | DP Light: 8.75 x 7 x 8.25" (22.2 x 17.8 x 21 cm)
Rifa-Lite EX88: Collapsed length 34" (86 cm)
Tota-light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Kit in Case: 37.5 x 17.75 x 9" (95.25 x 45 x 22.9 cm) (95.3 x 45.1 x 22.9 cm) | | Kit Weight | 49 lbs (22.3 kg) | | | | Package Weight | 52.3 lb | | Box Dimensions (LxWxH) | 40.0 x 20.0 x 10.0" |
