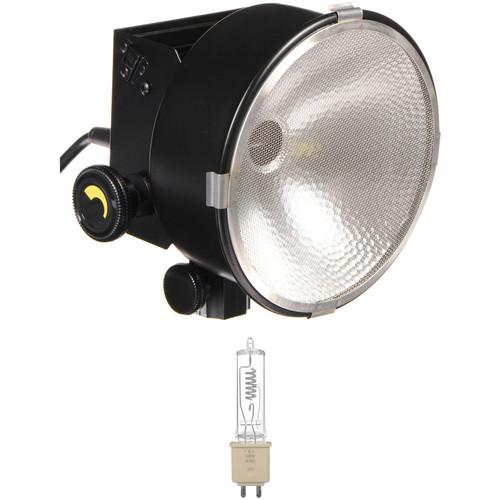

Product description The Lowel DP-Light is a powerful workhorse. It's a powerful key, backlight, or background light. Add an umbrella or diffusion for soft key or fill light. Swap to the super-spot reflector for long throws, or customize it with a variety of other accessories. The DP is built for a long, multi-use life. This fixture is supplied with a 120 volt AC power cord. Change the cord, or use a plug adapter to use the DP-Light anywhere in the world with the appropriate bulb. When fitted with its FEL 1000 watt, 120 volt bulb and the supplied reflector, this fixture will emit a beam of 88 footcandles at full flood and 711 footcandles at full spot from a distance of 10' (3m). With an FEP 1000W/240V: 77 fc / 627 fc. Other bulbs and plug adapters are available. - Lowel DP Focus Flood Light (120-240 VAC) The Lowel DP-Light is a powerful workhorse to be used as a backlight or background light. Add an umbrella or diffusion for soft key or fill light. Swap to the super-spot reflector for long throws, or customize it with a variety of other accessories. The DP is built for a long, multi-use life. This high intensity focusing flood light is supplied with a 120 VAC power cord. Change the cord or use a plug adapter to use the DP-Light anywhere in the world with the appropriate bulb. When fitted with an (optional) FEL 1000-watt, 120-volt bulb and the supplied reflector, this fixture will emit a beam of 88 footcandles at full flood and 711 footcandles at full spot from a distance of 10' (3m). Other bulbs and plug adapters are available.
- Focusing
- Incorporates a true focusing knob that moves the beam-angle from spot to flood.
- Hand-Held Capability
- A built-in, rubberized folding grip offers the user the capability to use the DP-light as a hand-held light.
- Parabolic Reflector
- The peened, parabolic reflector provides non-crossover beam with axial filiament orientation for improved shadow and gel life.
UPC: 841274001535 - Ushio FEL Lamp (1,000W/120V) This Ushio FEL Lamp (1,000W/120V) is a tungsten halogen bulb with a G9.5 base that is compatible with light fixtures with at least a 1,000W capacity. It has a color temperature of 3,200K and an average life of 375 hours. UPC: 048777133187
In the Box - DP Focus Flood Light (120-240 VAC) fqxrcaeavtdtfvbrzwxxuyxw
- Protective Screen
- #1 Reflector
- 120 VAC Power Cord
- Limited 2-Year Warranty
- Ushio - FEL Lamp (1,000W/120V)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DP Focus Flood Light, Bulb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel DP Focus Flood Light (120-240 VAC)
| Rating | 1000 W maximum | | Socket (Lampholder) | G9.5 2-pin | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Peened parabolic | | Mounting | Fits on standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' #16/3, line switch, with grounded Edison plug | | Focusing | Continuously variable | | Weight | 3.6 lb / 1.6 kg | | Dimensions | 8.75 x 7 x 8.25" / 22.2 x 17.8 x 21 cm | | | | Box Dimensions (LxWxH) | 10.3 x 8.4 x 6.5" | - Ushio FEL Lamp (1,000W/120V)
| Base Type | G9.5 | | ANSI Code | FEL | | Wattage | 1000 W | | Voltage | 120 V | | Lumens | 27,500 | | Burning Position | Any | | Color Temperature | 3200K | | Bulb Finish | Clear | | Average Life | 375 Hours | | Maximum Overall Length (MOL) | 4.09" / 104 mm | | Light Center Length (LCL) | 2.37" / 60.3 mm | | Maximum Overall Diameter (MOD) | 0.748" / 19 mm | | | | Box Dimensions (LxWxH) | 5.3 x 1.65 x 1.6" |
