User Manual for Lowel DP Super Remote Kit Click to enlarge the picture
Contents of the user manual for the Lowel DP Super Remote Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel DP Super Remote Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

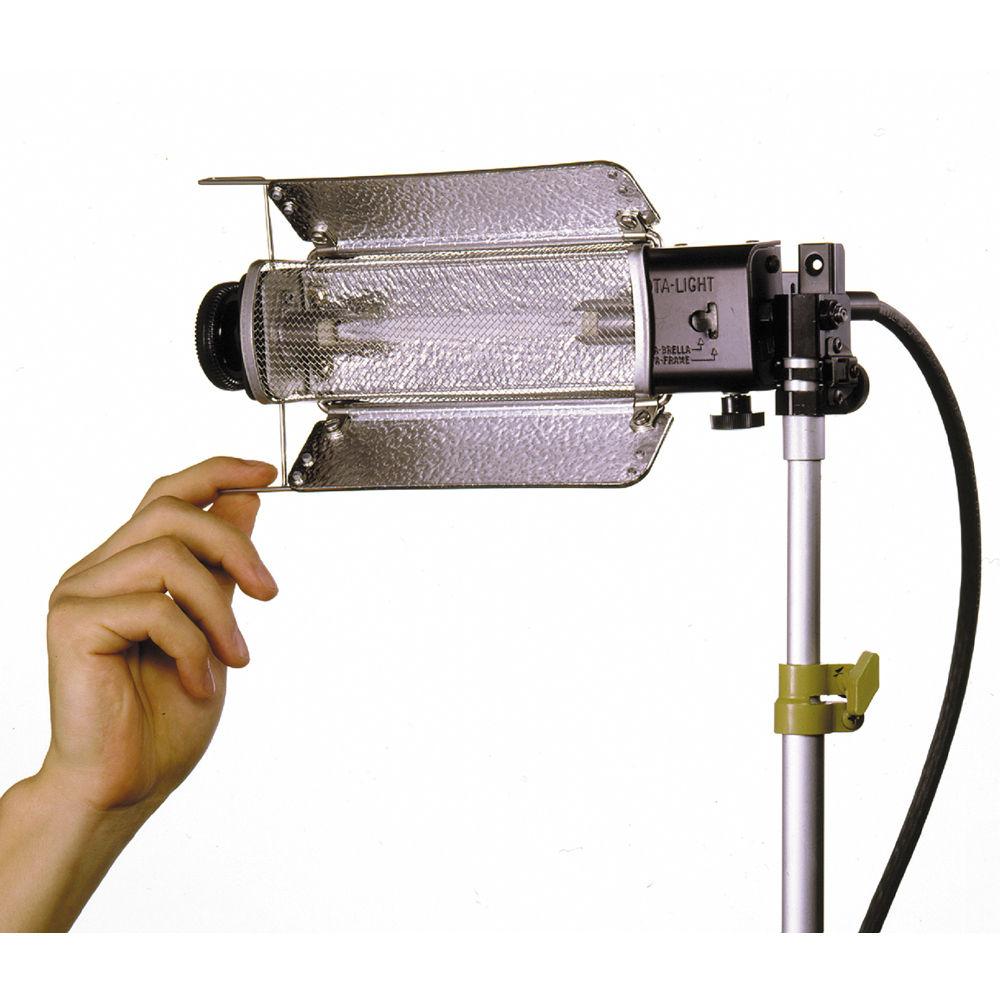

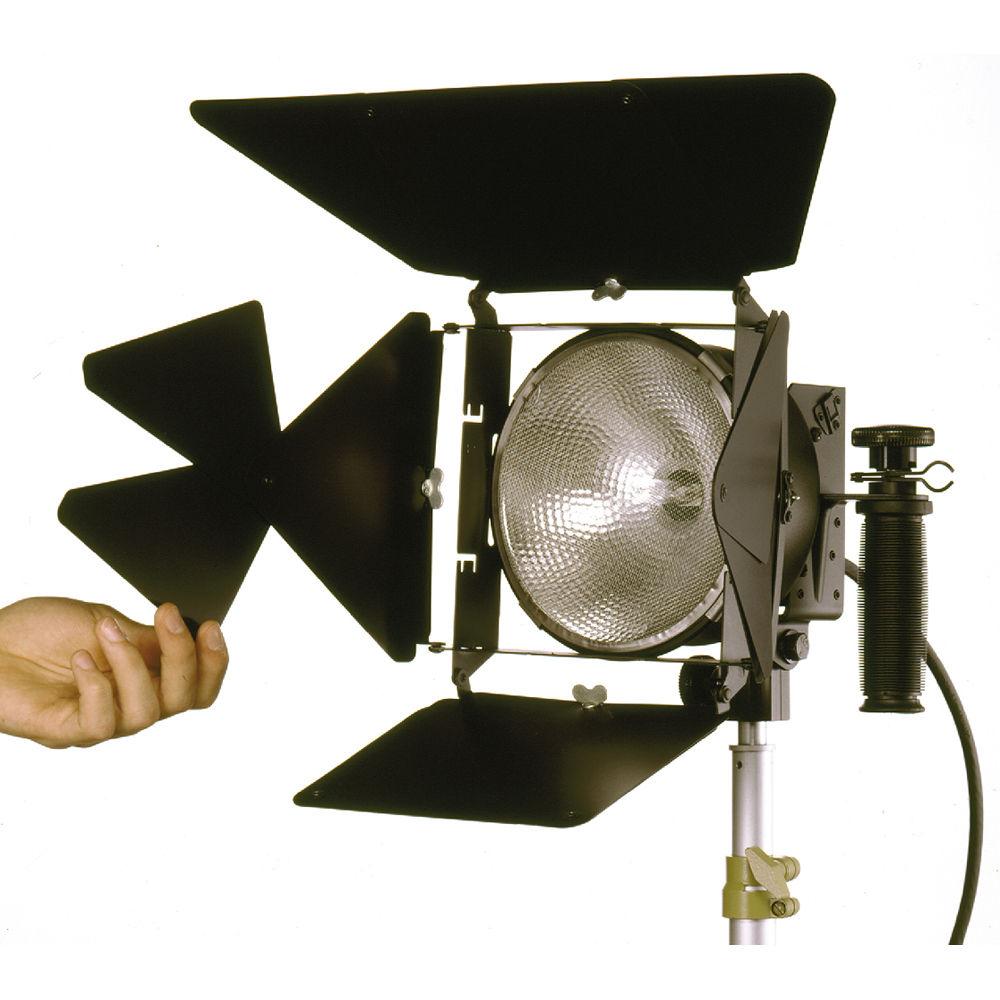

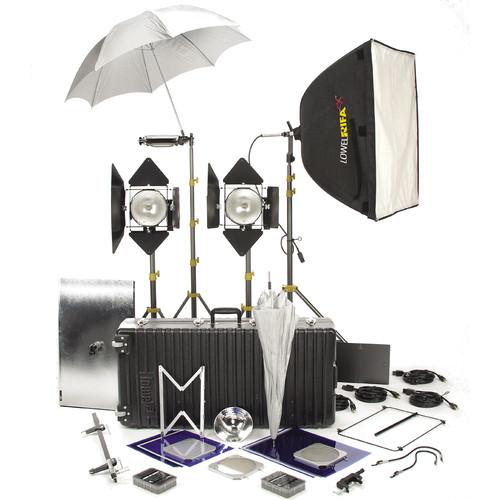

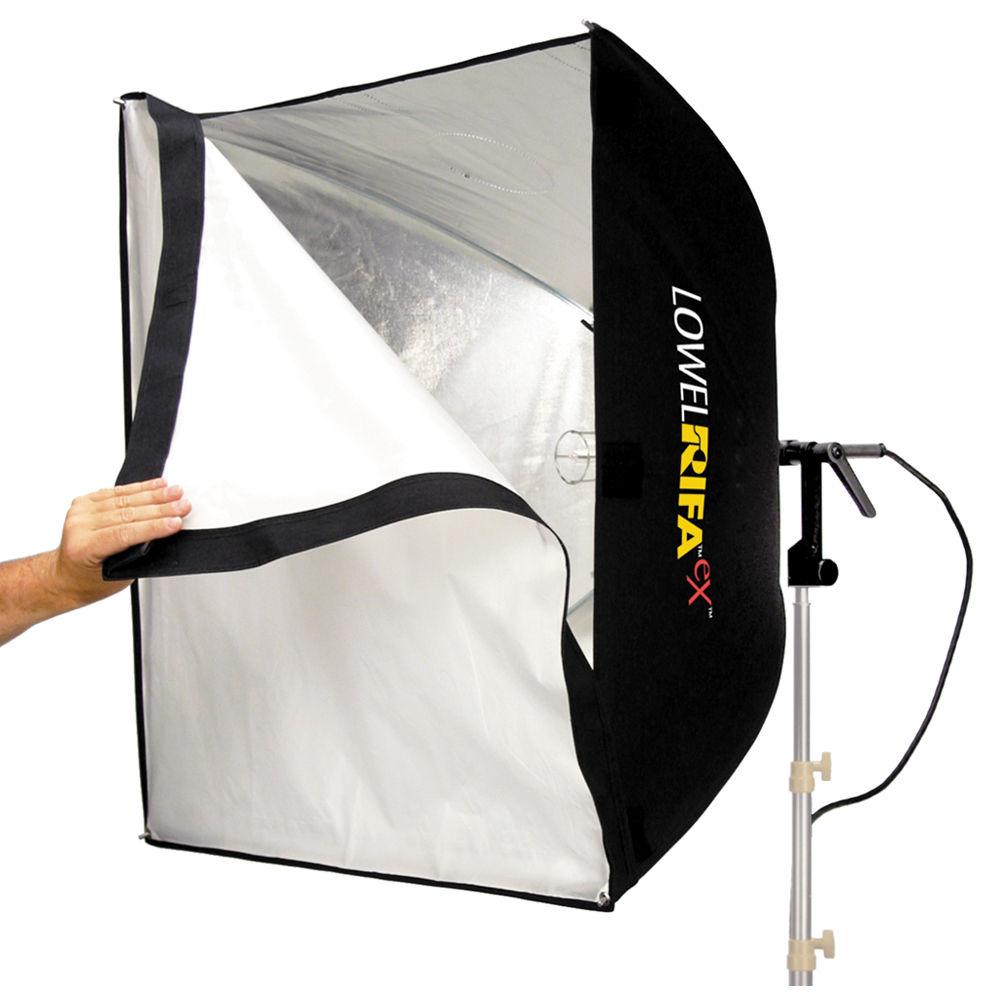

Product description This is a well-equipped Lowel DP Super Remote Kit. It provides two DP focusing floodlights, a Tota-light broad-throw floodlight, and the Rifa-Lite 88 softbox light. It includes 120V bulbs (other voltages, wattages and plug adapters are available separately), gel frames, gels, mounting accessories, stands and a kit case to hold it all. The DP Light is a long-time Lowel workhorse. It's a powerful key, backlight or background light. Add an umbrella or diffusion for soft key or fill light. Swap to the super-spot reflector for long throws, or customize it with a variety of other accessories. The DP is built for a long multi-use life.Compact, lightweight, & self-contained, the Rifa-Lite 88 uses a simple umbrella design to achieve its quick and easy setup and strike capabilities. A 32 x 32" (81 x 81 cm) woven glass fabric, heat-resistant front diffuser provides sufficient illumination, with soft shadows. Compact, rugged and versatile, the broad throw Tota-light can be used with its umbrella or gel-frame and diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. - Includes many light shaping accessories to customize the light output.

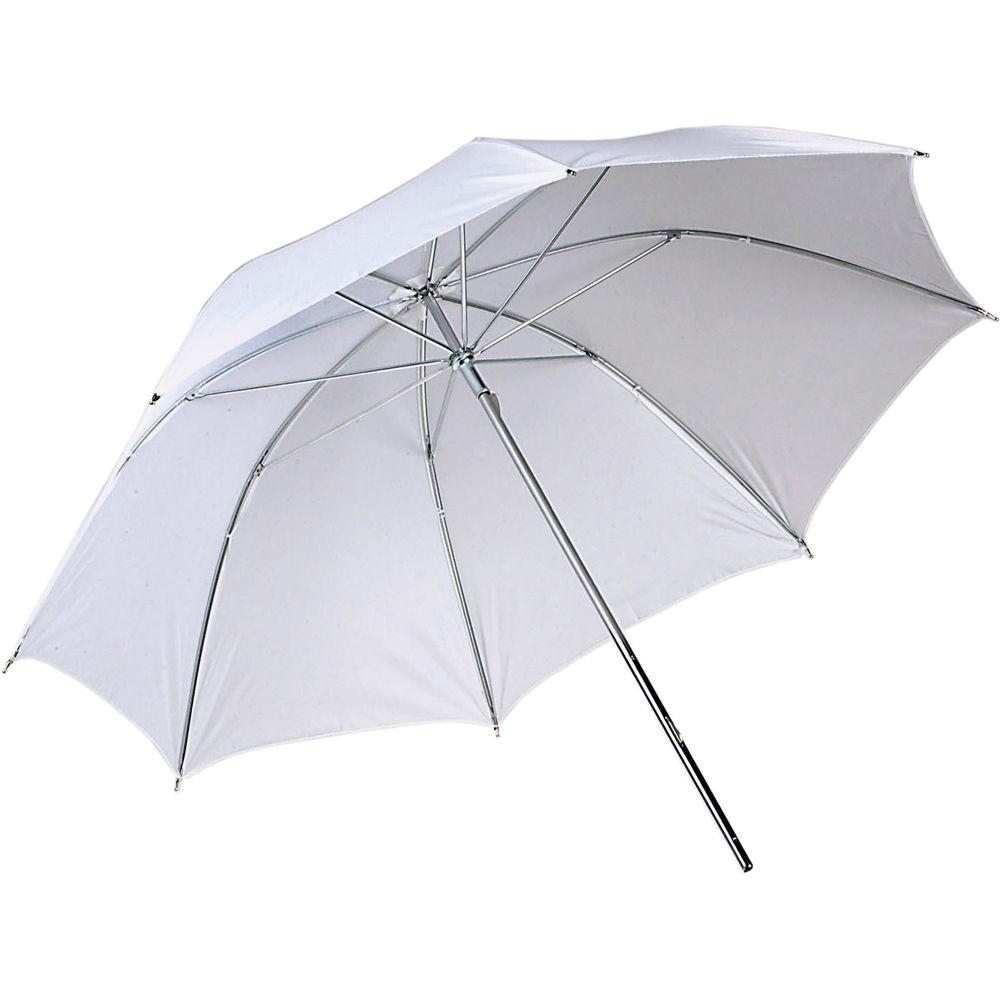

- Use the umbrella and gels to adjust the color and quality of the light.
- Use the barndoors, spot reflector, flex shaft and flag to adjust the shape of the light.

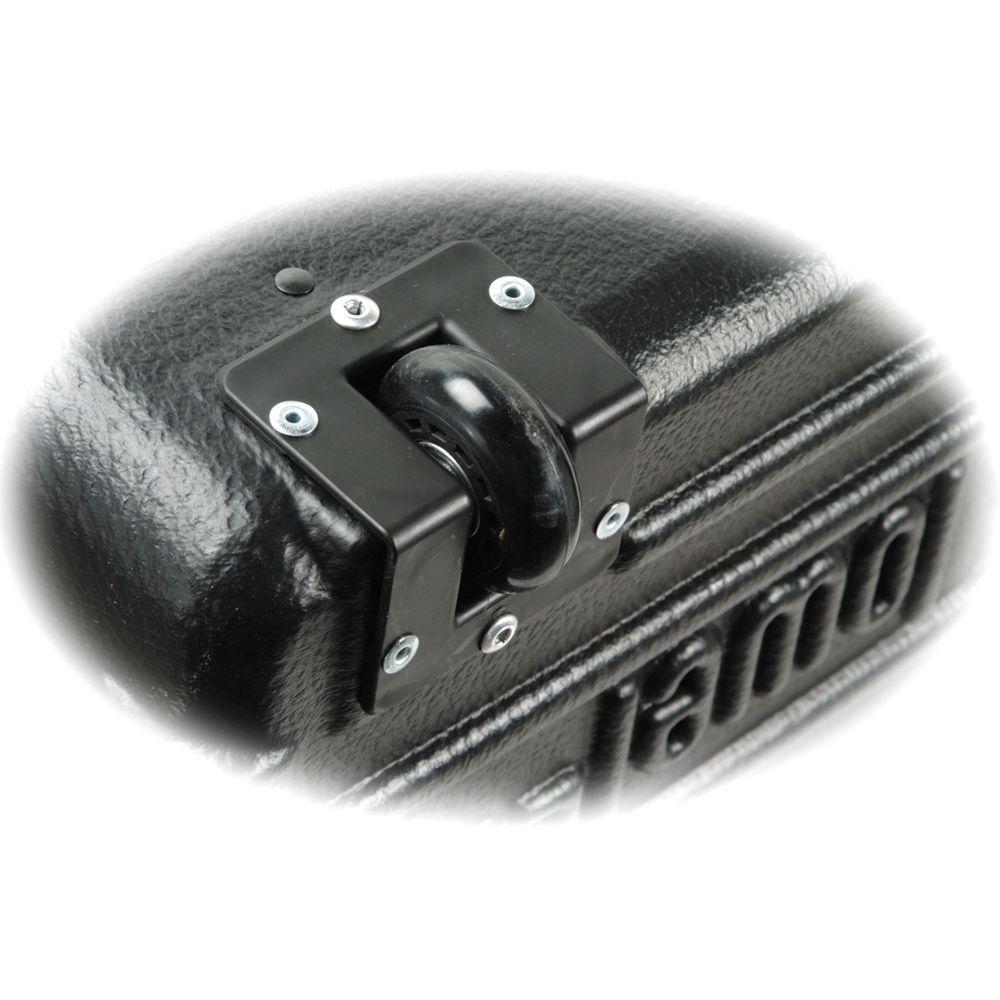

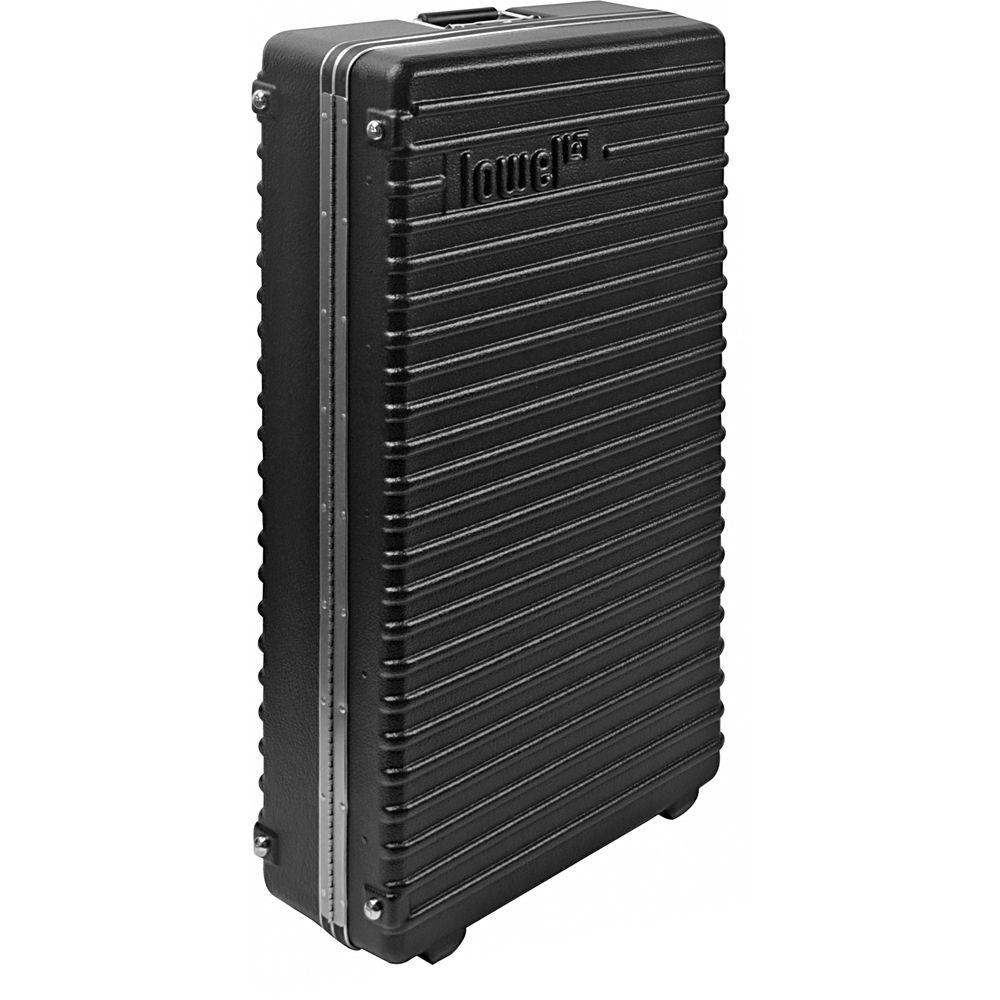

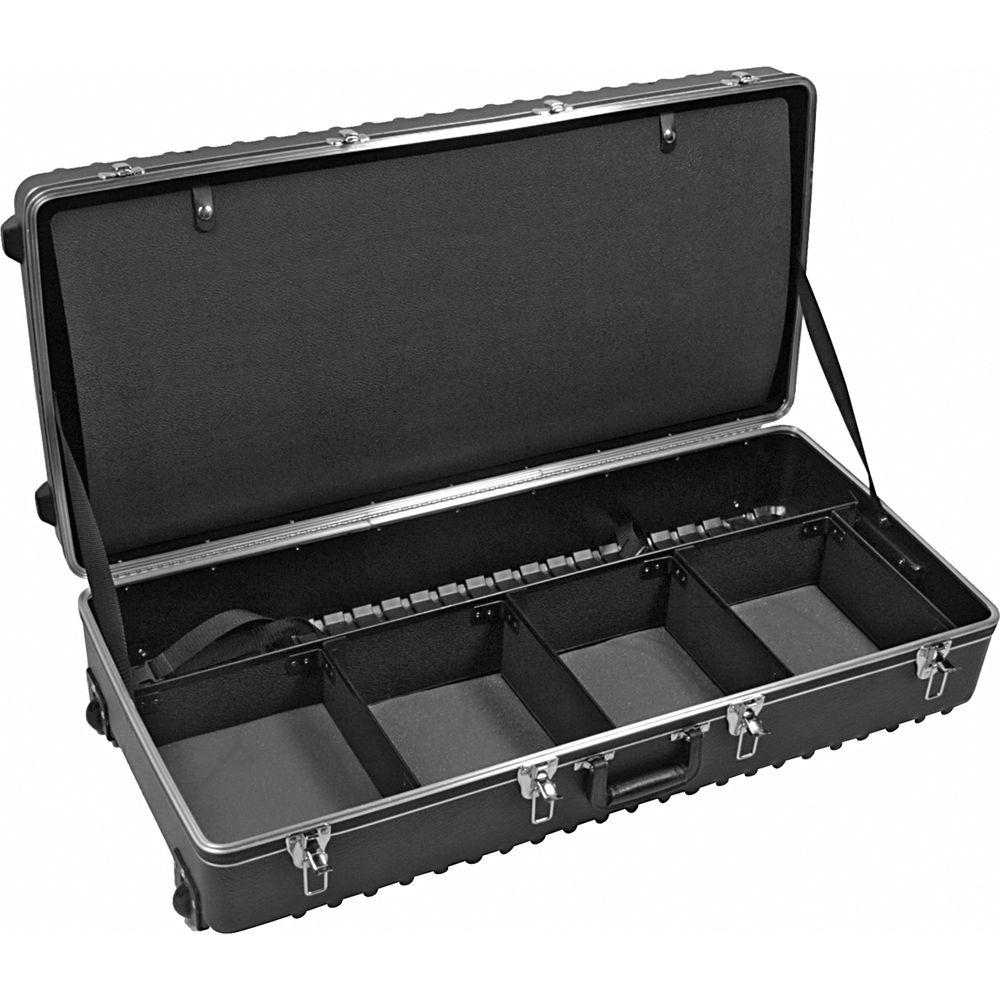

- All kit items, including stands, fit into the kit case.
- Bulbs of other wattages and voltages are available options.

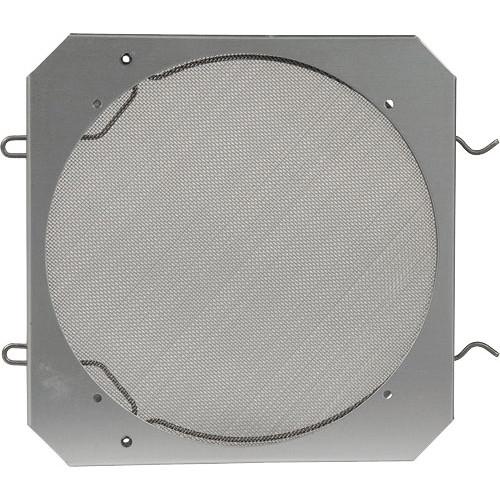

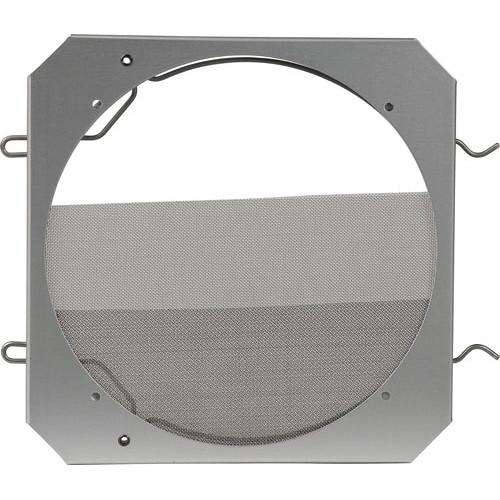

UPC: 841274002006 In the Box Lowel DP Super Remote Kit 2 x DP Focus Flood Light (120-240 VAC) ucucydxr 2 x Complete 4-Leaf Barndoor Set for DP Light 3 x FEL Lamp - 1000 Watts/120 Volts Tota-Light Tungsten Flood Light (120-240 VAC) EMD Lamp - 750W/120V LC88EX Rifa-Lite eX88 1000 Watt Softbox Light (120-240VAC) #3 Super-Spot Reflector for DP Light Diffused Glass for DP Light 5-1/4" Full Scrim for DP Light 5-1/4" Graduated Scrim for DP Light 2 x DP Brella, Silver - 41" DP Frame for DP Light Lightflector/Tilter Mixed Gels for DP Light - Set of 4 Tota-Flag (8 x 12") Tota/Omni Gel Frame for 10x12" Gels Tota/Omni Assorted Gels - Set of 5 (10 x 12") Flexi-Shaft - Pack of 2 Tota-Clamp KS Light Stand (9') 3 x KS Jr. Light Stand (7.6') Lampak for DP Light Lampak for DP or Tota Light Multi Case SC-10 Space-Clamp (Large) Two-Year Manufacturer's Warranty on Fixtures Five-Year Manufacturer's Warranty on Stands One-Year Manufacturer's Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DP Super Remote Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DP Light Specs | Rating | Each DP Light: 1000 watts
Rifa-Lite 88: 1000 watts
Tota-Light: 750 watts | | Socket (Lampholder) | Each DP Light, Rifa-Lite 88 : G9.5 2-pin metal-ceramic
Tota-Light: R7s double-ended | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Each DP Light: Peened parabolic
Rifa-Lite 88: Silver interior softbox
Tota-Light: Peened aluminum | | Mounting | Fits on standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | Each DP Light: 16' #16/3
Rifa-Lite 88: 4' captive cable
Tota-Light: 16' with inline switch
All: 120VAC grounded Edison cable | | Focusing | Each DP Light: Continuously variable
Rifa-Lite 88, Tota-Light: Not Applicable | | Weight | Each DP Light: 3.6 lbs (1.6 kg)
Rifa-Lite 88: 2.5 lbs (1.1 kg)
Tota-Light: 2.25 lbs (1 kg) | | Dimensions | Each DP Light: 8.75 x 7 x 8.25" (22.2 x 17.8 x 21 cm)
Rifa-Lite: Collapsed length 34" (86 cm)
Tota-Light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Kit in Case: 37.5 x 17.75 x 9" (95.25 x 45 x 22.86 cm) | | Kit Weight | 62 lbs (28.2 kg) | | | | Package Weight | 64.0 lb | | Box Dimensions (LxWxH) | 40.0 x 20.0 x 9.5" |
