User Manual for Lowel DV Core 250 with TO-83 Case Click to enlarge the picture
Contents of the user manual for the Lowel DV Core 250 with TO-83
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel DV Core 250 with TO-83 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

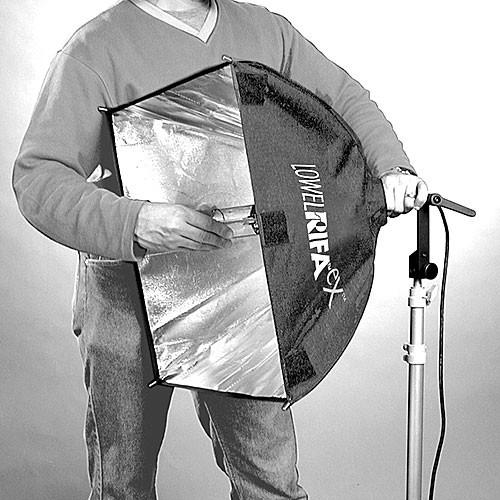

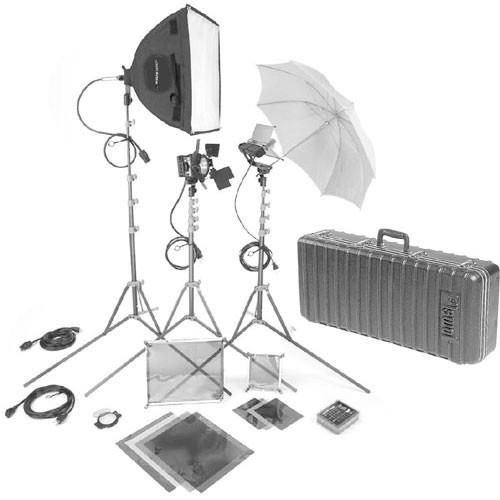

Product description This is a Lowel DV Core 250 with TO-83 Case , a 1000 total watt, three tungsten-light kit. It includes light stands, umbrella, gels, barndoors, bulbs, and a case. The Rifa EX44 is a compact, self-contained, 16 x 16", 250W, collapsible, tungsten/halogen softlight. It has a quick-change socket which allows optional sockets for fluorescent bulbs to be used. Its quick-change power cord easily converts for use with professional DC battery belts. With its high intensity #2 reflector and prismatic glass, the tiny, focusable Pro-Light is more efficient than a Fresnel of equal wattage, yet it gives an even light with Fresnel-like shadow quality. Powerful enough to light a small room yet small enough to fit in a large pocket, the V-Light can be used as a broad key-light, a fill-light (with an umbrella or diffusion gel), a backlight, or a background light. - Rifa-Lite
-

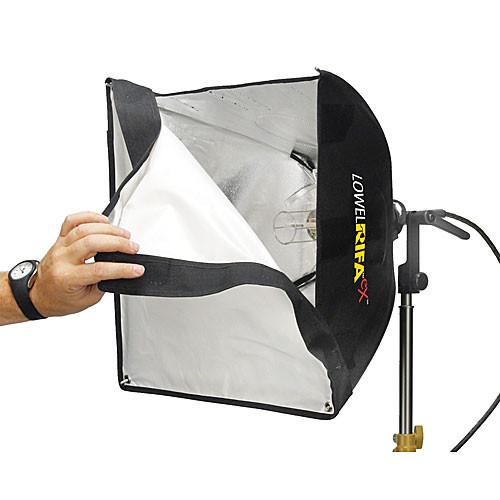

- Bathe almost anything, from talking heads to small table-top stills, in soft light with the Rifa EX44 softlight
- The Rifa Lite EX44 design is like an umbrella, allowing set-up in 60 seconds or less
- The Rifa EX44 softbox light has a 16 x 16" (41 x 41cm) front diffuser

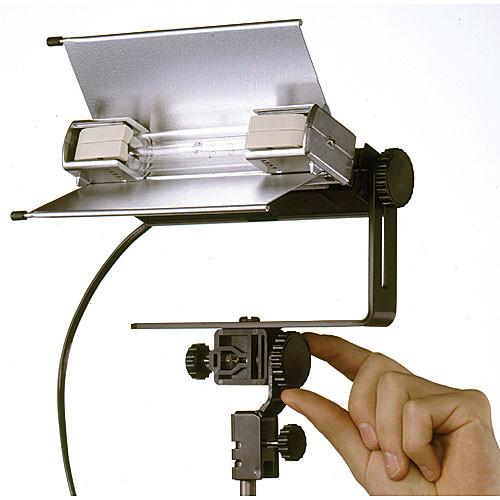

- V-Light
-
- Produces an extremely wide angle, broad, smooth light

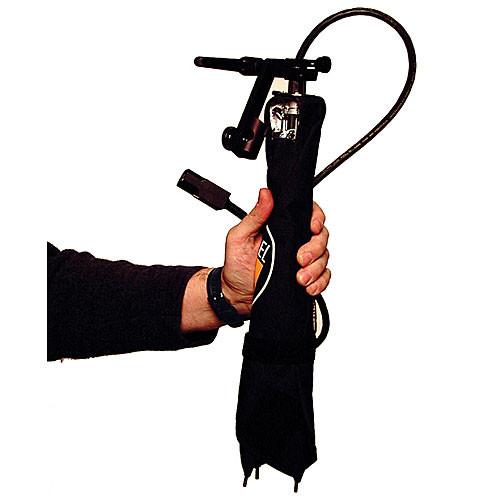

- Closes completely compact for easy storage

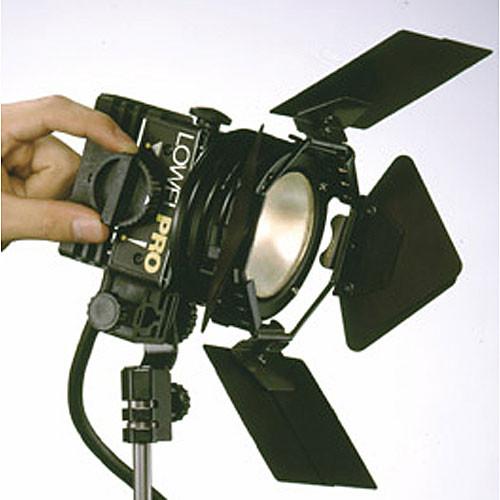

- Pro-Light
-
- The Pro-Light can be used as a low-level key or accent light, fill light (with diffusion), or backlight
- A DC adapter cable and bulb may be ordered separately for use as a video camera-mounted light
- Light Shapers
- Use the barndoors, umbrella, and gels to alter the shape, quality, and color of the light emitted from the fixtures
- Compact Light Stands
- The Lowel light stands fold to less than 2' (61cm), and rise to a maximum of almost 8' (2.4m)

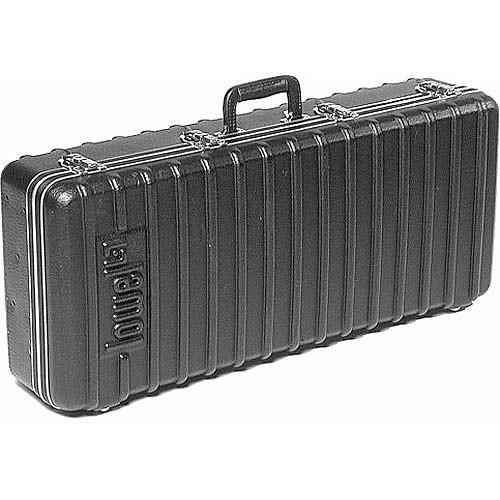

- Kit Case
- The TO-83 kit case holds everything, including the light stands
UPC: 841274002600 In the Box Lowel DV Core 250 with TO-83 Case ViP Pro-Light (120 VAC / 12 VDC) 2 x FVL Lamp - 200 Watts/120 Volts Complete Four Leaf Barndoor Set for Pro, i-Light V-Light 500 Watt Tungsten Flood Light (120-240VAC) GDA Lamp - 500 Watts/120 Volts LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) 2 x Uni-Stand (7.9') Uni TO Dual Light Stand (7') Tota/Omni Gel Frame for 10x12" Gels White 27" Tota-Brella Pro/i-light Gel Frame Pro & i Clear Safety Glass ytwrrxrwcrequbdzecxaqswafvqaxwtxwwxct Swing-In Accessory Holder Lampak for VP Light TO-83 Case Multi-system Hard Case ytwrrxrwcrequbdzecxaqswafvqaxwtxwwxct iP Gel set Assorted Gels Limited 2-Year Warranty on Fixtures Limited 5-Year Warranty on Stands Limited 1-Year Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DV Core 250 with TO-83 Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DVC-913 Specs | Rating | Rifa-Lite EX44: 200 W
V-Light: 500 W
Pro-Light: 250 W | | Socket (Lampholder) | Rifa-Lite EX44: R7s 2-pin
Pro-Light: 2-pin
V-Light: R7s double-ended | | Lens (Condenser) | Rifa-Lite EX44, V-Light: Not Applicable
Pro-Light: Prismatic glass | | Reflector (Mirror) | Rifa-Lite EX44: Silver interior softbox
V-Light: Not Applicable
Pro-Light: High intensity #2 reflector | | Mounting | 5/8" stand or stud | | Yoke | Not Applicable | | Cable | Rifa-Lite EX44, Pro-Light: 4' / 1.2 m captive cable
V-Light: 16' / 4.9 m #18/2 | | Focusing | Rifa-Lite EX44, V-Light: Not Applicable
Pro-Light: Continuously variable | | Weight | Rifa-Lite EX44: 2.1 lb / 1 kg
V-Light: 1.5 lb / .68 kg
Pro-Light: 2 lb / 0.9 kg | | Dimensions | Rifa-Lite EX44: Collapsed length 17" / 86 cm
Pro-Light: 4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm
V-Light: 7.3 x 7.3 x 1.3" / 18.5 x 18.5 x 3.3 cm (size closed)
Kit in Case: 29.5 x 13 x 7" / 74.9 x 33 x 17.8 cm | | Kit Weight | 28 lb / 12.8 kg | | | | Package Weight | 32.46 lb | | Box Dimensions (LxWxH) | 31.0 x 18.0 x 8.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
