User Manual for Lowel DV Creator 1 Kit Click to enlarge the picture
Contents of the user manual for the Lowel DV Creator 1 Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel DV Creator 1 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

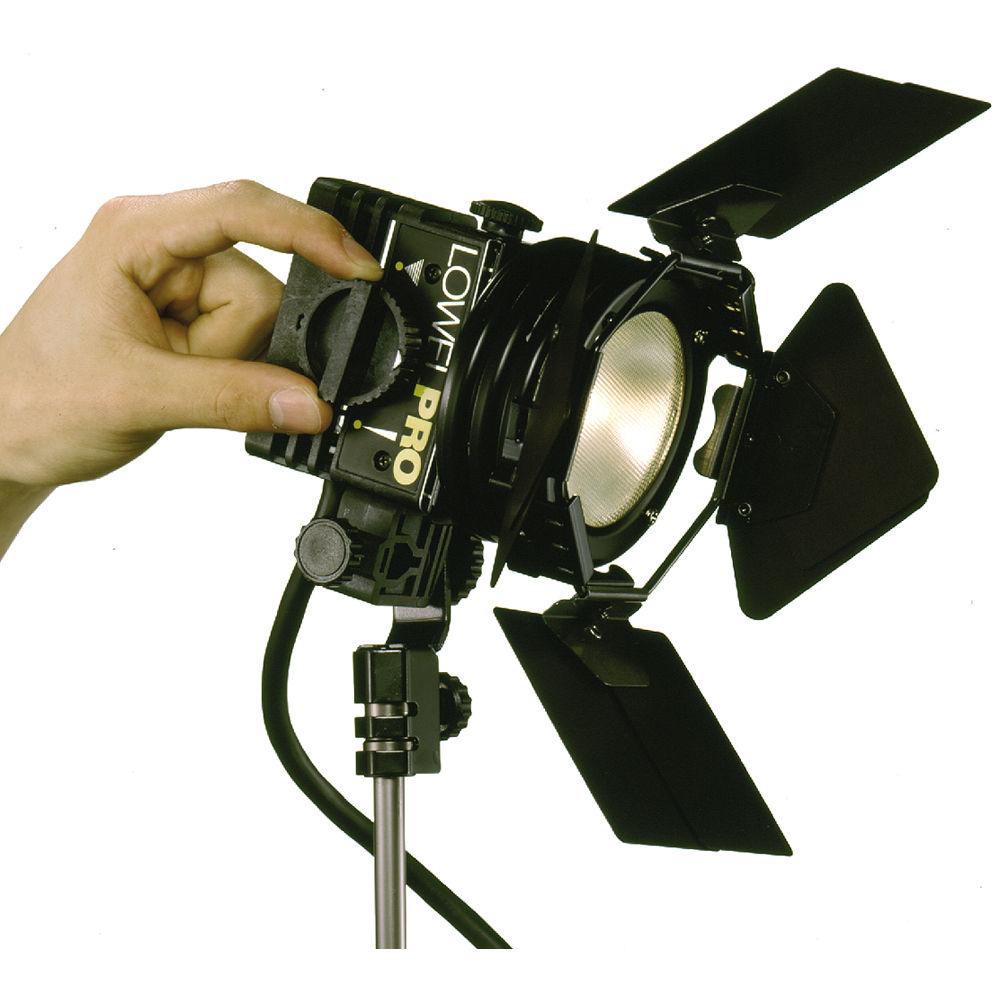

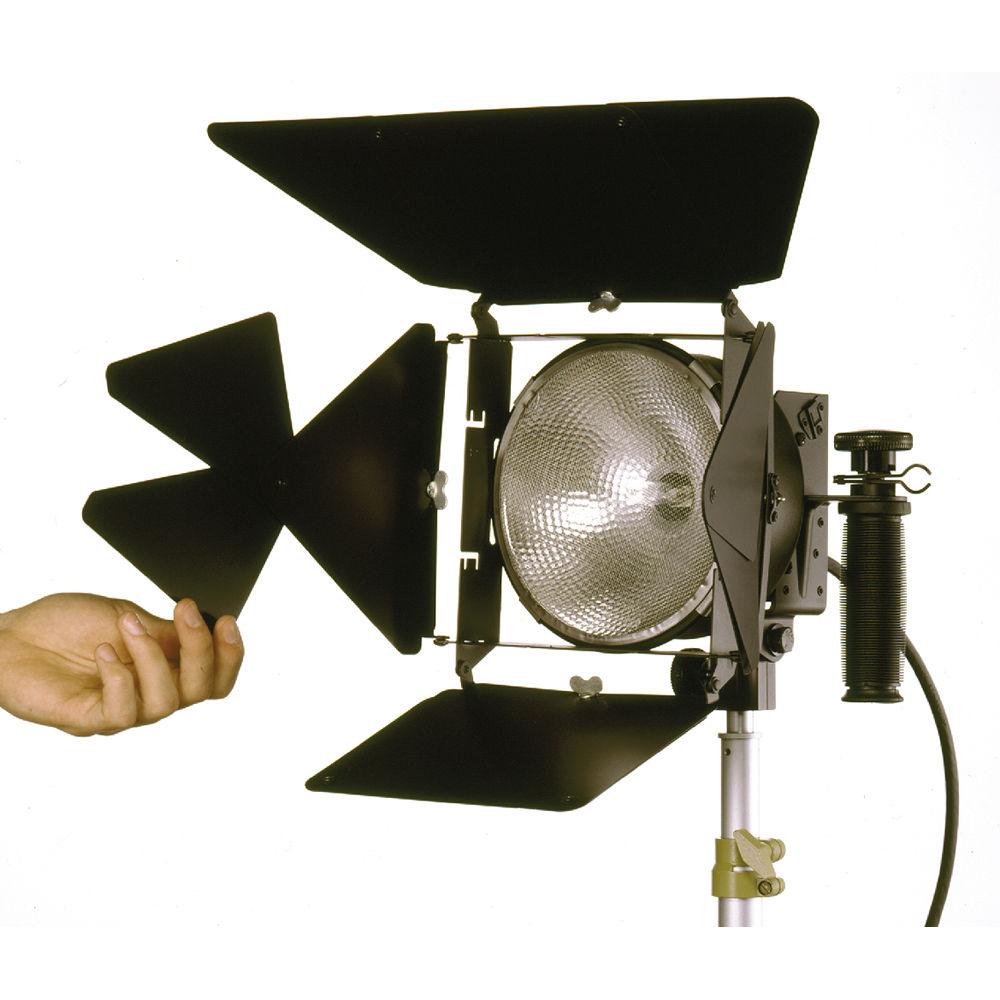

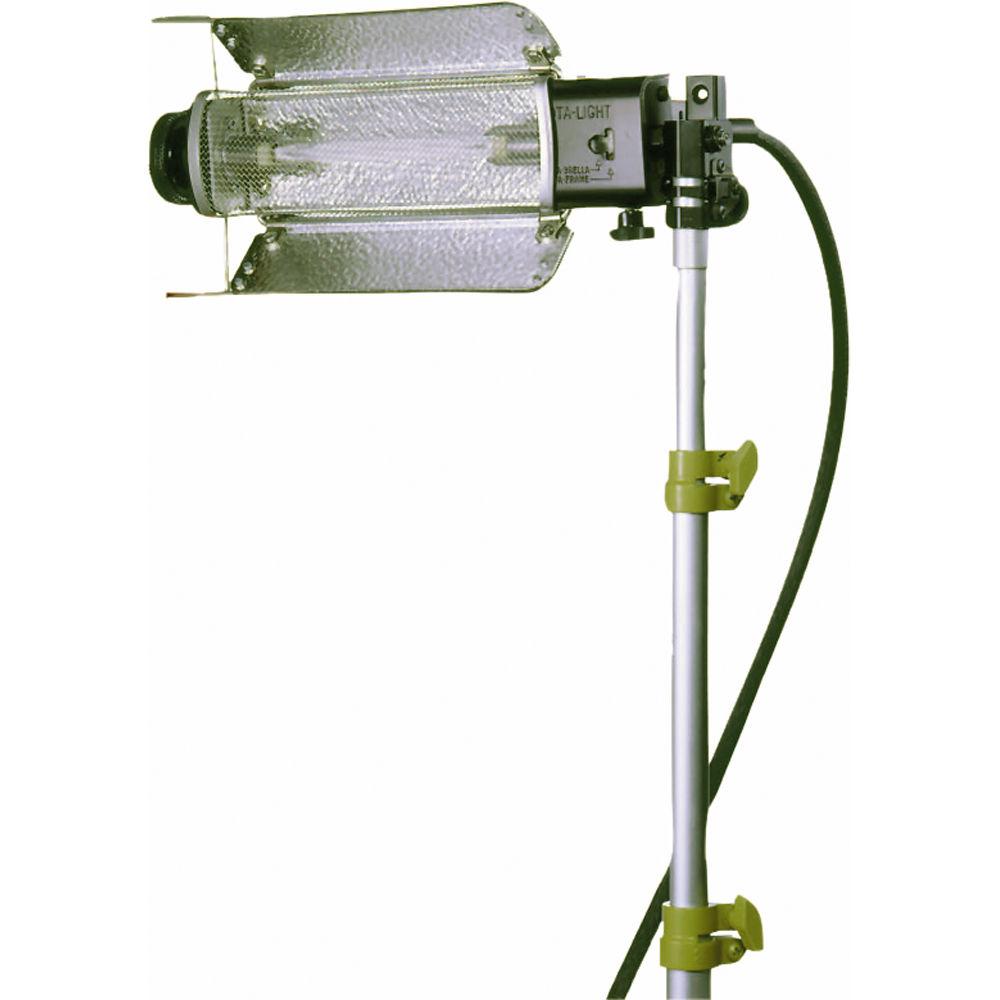

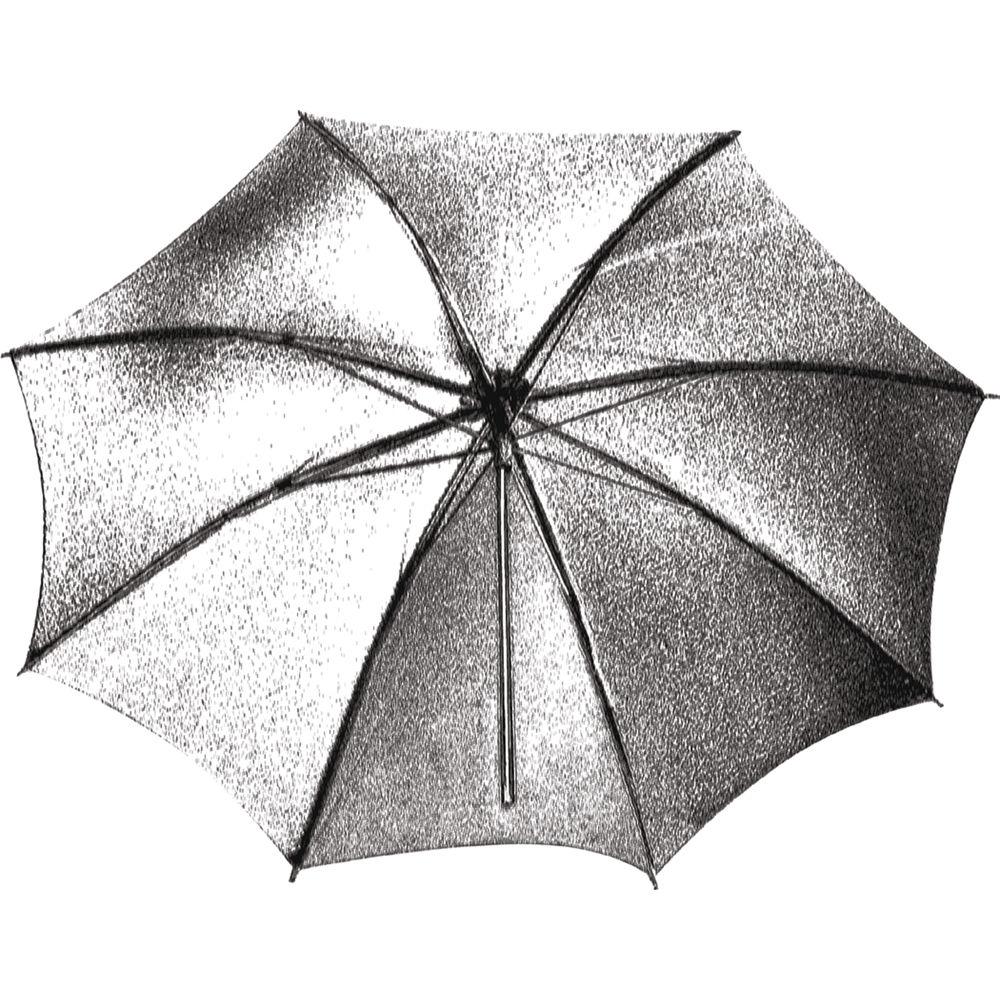

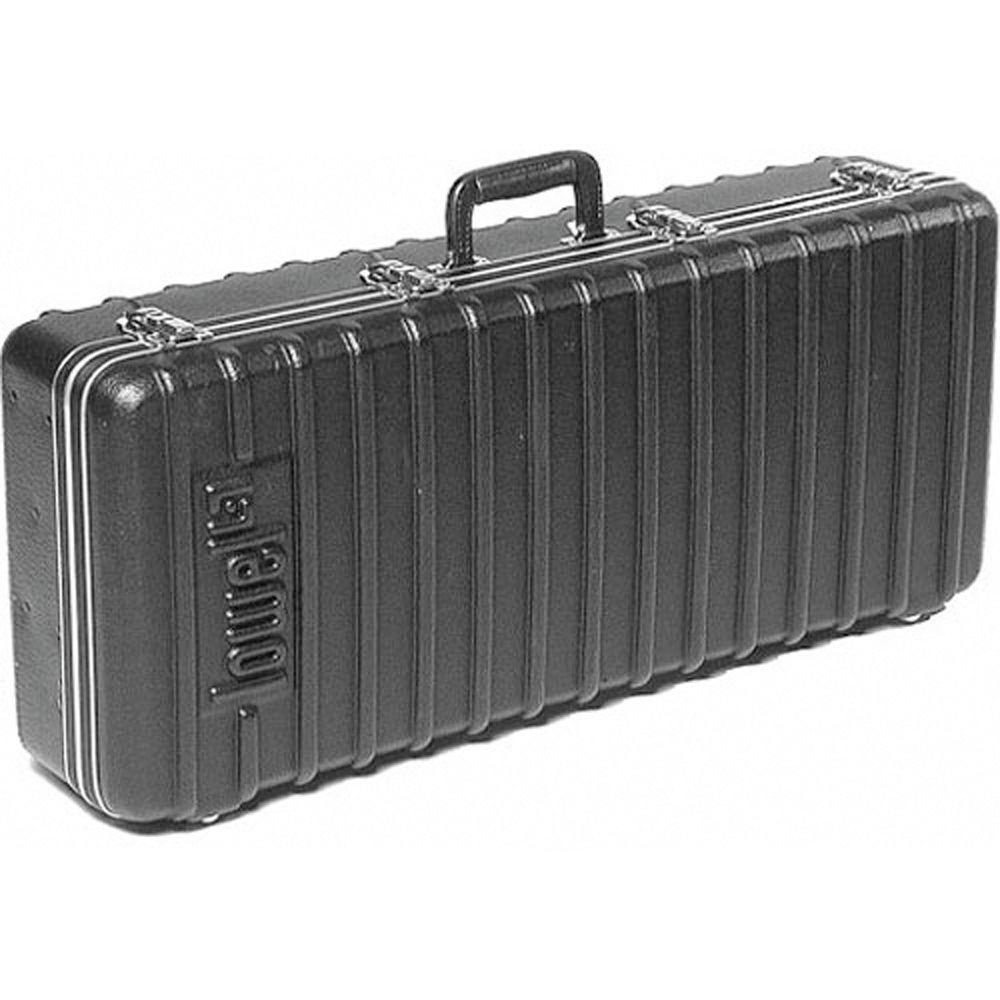

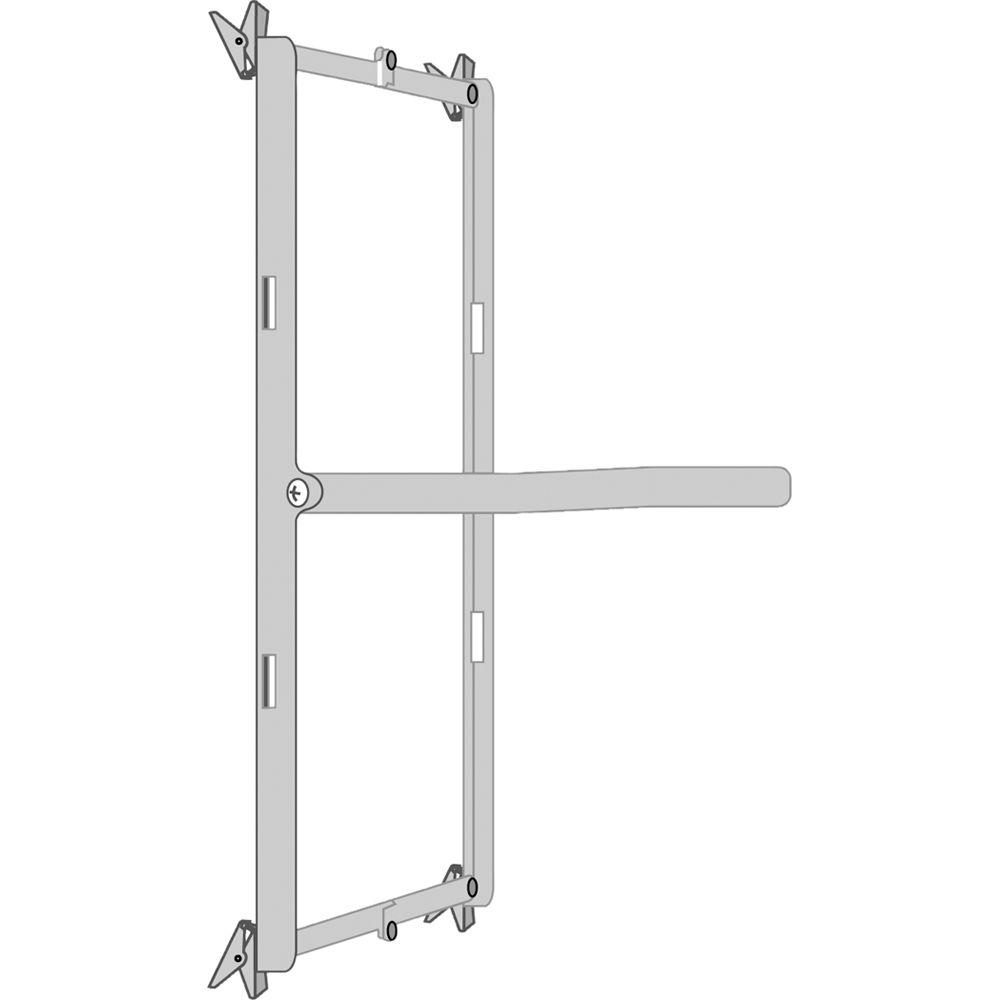

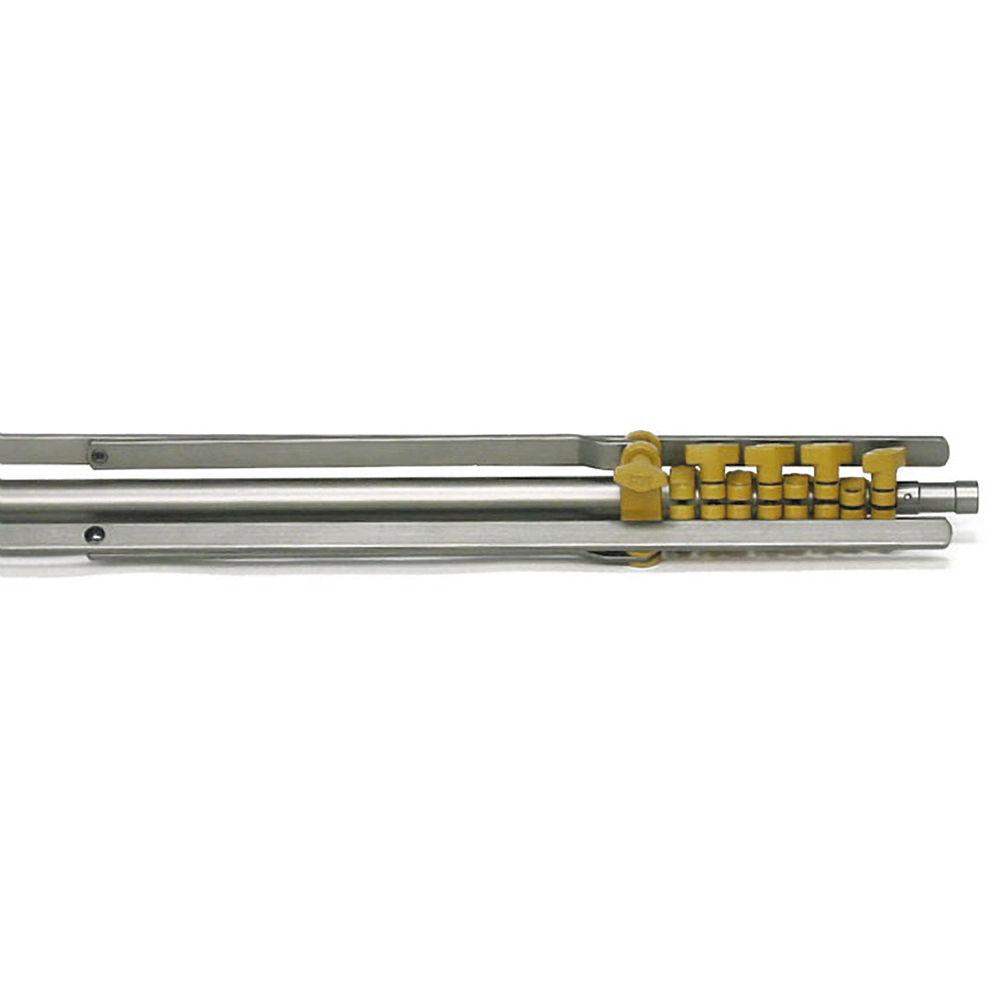

Product description This is a Lowel DV Creator 1 Kit. This three-light kit combines Lowel's most popular tungsten-halogen fixtures with barndoors, an umbrella, gel frame, gels, flex arm, light stands, and a GO-83 hard kit case. With its high-intensity #2 reflector and prismatic glass, the tiny focusable Pro-light is more efficient than a mini-Fresnel of equal wattage, yet it gives an exquisite even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight. The wide focusing range of the Omni-light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Compact, rugged and versatile, the broad throw Tota-light can be used with its umbrella or gel-frame and diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota-lights are also widely used for photographic copy work.Although this kit comes supplied for 120 volt AC use, it may be fitted for use with other voltages, with the appropriate bulbs and plug adapters -- sold separately. - The Pro-Light's versatility can be increased by adding a DC adapter cable and swapping its bulb for use as a camera-top fixture
- Use the included light modification devices to alter the color, intensity, quality and shape of the light
- The kit case holds everything, including the light stands
UPC: 049383190014 In the Box Lowel DV Creator 1 Kit ViP Pro-Light (120 VAC / 12 VDC) Complete Four Leaf Barndoor Set for Pro, i-Light FVL Lamp - 200 Watts/120 Volts Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) Complete 4-Leaf Barndoor for Omni Light FTK Lamp - 500 Watts/120 Volts Tota-Light Tungsten Flood Light (120-240 VAC) EMD Lamp - 750W/120V Tota/Omni Gel Frame for 10x12" Gels Tota/Omni Assorted Gels - Set of 5 (10 x 12") Flexi-Shaft - Pack of 2 Tota-Flag (8 x 12") Tota-Brella - Silver - 27" Lampak for Tota-Light or Omni-Light TO-83 Case Multi-system Hard Case eyybzaqtxwuawefeqcysr 3 x Uni TO Dual Light Stand (7') Two-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DV Creator 1 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DV-9013Z Specs | Rating | Pro-light: 250 watts
Omni-light: 500 watts
Tota-light: 750 watts | | Socket (Lampholder) | Pro-light: 2-pin pro socket
Omni-light: 2-pin
Tota-light: R7s Double-ended | | Lens (Condenser) | Pro-light: Prismatic glass
Omni-light, Tota-light: Not Applicable | | Reflector (Mirror) | Pro-light: High intensity #2 reflector
Omni-light: Double parabolic peened reflector
Tota-light: Dual Gull Wing reflector doors | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | Omni-light, Tota-light: 16' Detachable, 120VAC grounded Edison plug
Pro-light: 4' captive, 12' extension, 120VAC grounded Edison plug | | Focusing | Pro-light, Omni-light: Continuously variable
Tota-light: Not Applicable | | Weight | Pro-light: 2 lbs (0.9 kg)
Omni-light: 2.6 lbs (1.9 kg)
Tota-light: 2.25 lbs (1 kg) | | Dimensions | Pro-light: 4.6 x 5 x 3.7" (11.7 x 12.7 x 9.4 cm)
Omni-light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Tota-light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Kit in Case: 29.5 x 13 x 7" (74.9 x 33 x 17.8 cm) | | Kit Weight | 29.5 lbs (13.4 kg) | | Kit Dimensions | 23.75 x 13.5 x 7" (60.3 x 34.3 x 17.8 cm) | | | | Package Weight | 34.6 lb | | Box Dimensions (LxWxH) | 31.5 x 18.9 x 8.4" |
