User Manual for Lowel DV Creator 44 Kit, TO-83 Case Click to enlarge the picture
Contents of the user manual for the Lowel DV Creator 44 Kit, TO-83
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel DV Creator 44 Kit, TO-83 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

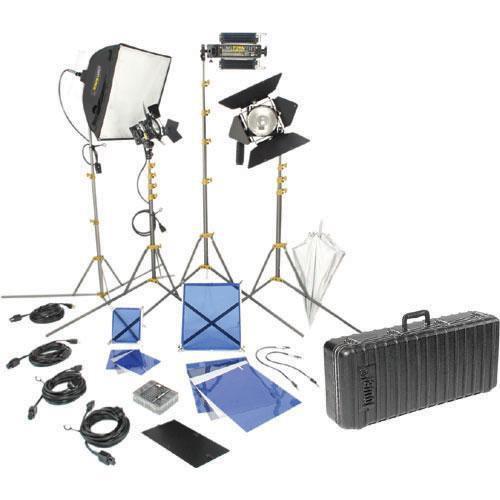

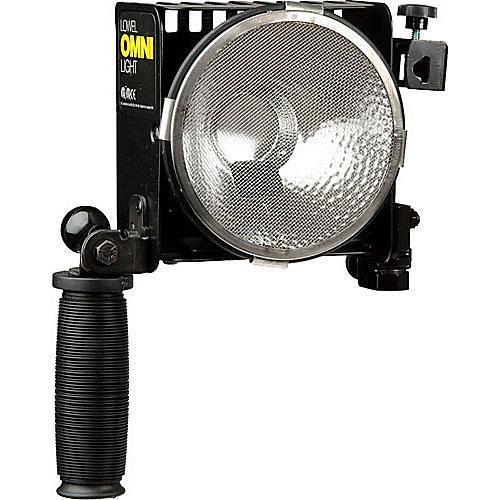

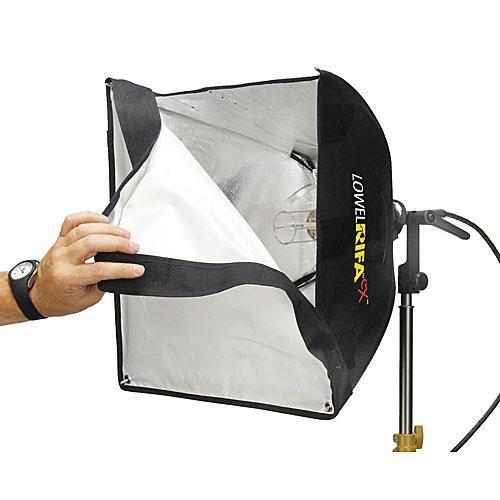

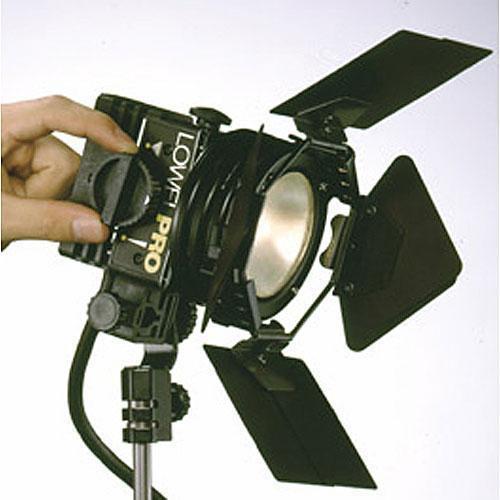

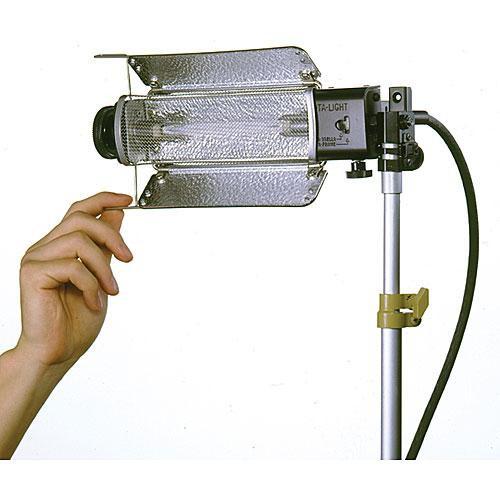

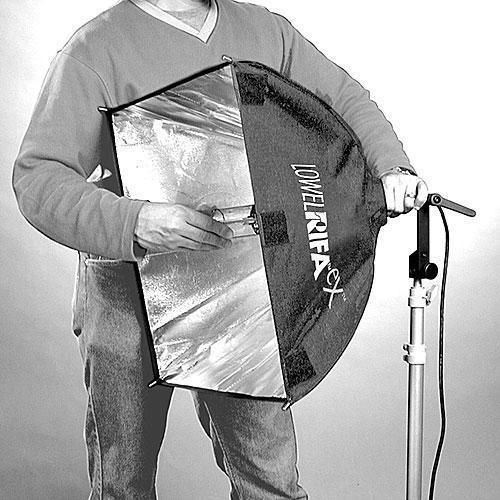

Product description The Lowel DV Creator 44 Kit, TO-83 Case offers four different types of light fixtures for a variety of lighting situations. It includes a softbox light, two focus floods, and one floodlight. Also included are barndoors, stands and a TO-83 Hard Kit Case. The unique umbrella-like Rifa EX44 16 x 16" softlight allows set-up in 60 seconds or less. Bathe almost anything in luxurious soft light, from talking heads to table-top stills. Its quick change power cord easily converts for use with professional battery belts, allowing it to work at 12V, 14V and 30VDC. It's the perfect complement to today's compact, light-sensitive digital cameras and film stocks. With its high intensity #2 reflector & prismatic glass, the tiny focusable Pro-light is more efficient than a Fresnel of equal wattage, yet it gives an exquisite even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight. The wide focusing range of the Omni-light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. It's also capable of functioning with your 12-30V DC supply. Compact, rugged and versatile, the broad-throw Tota-light can be used with its umbrella or gel-frame and diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-lights are also widely used for photographic copy work. -
- The Rifa EX accepts many different wattages and types of bulbs, when you purchase the appropriate socket adapter, available separately
- Accessory exchange lampheads allow use of daylight fluorescent screw-threaded lamps
- The Pro-light's versatility can be increased by adding a DC adapter cable and swapping its bulb for use as a camera-top fixture
- Use the included light modification devices to alter the color, intensity, quality and shape of the light

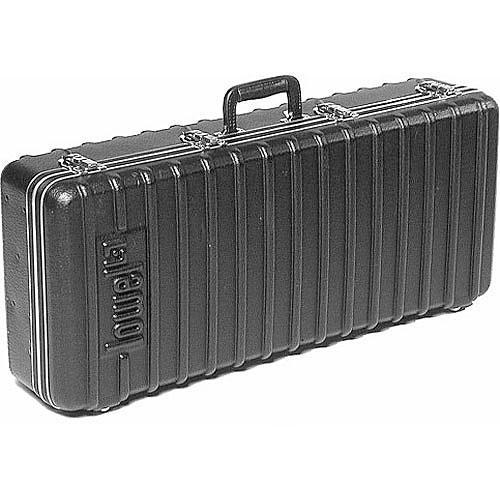

- The TO-83 kit case holds everything
UPC: 049383159103 In the Box Lowel DV Creator 44 Kit, TO-83 Case Rifa-lite 44 for 230 Volt Use Pro-light for 230 Volt Use Omni-light for 230 Volt Use Tota-light for 230 Volt Use GLF Lamp (235W/230-240V for LC44 Rifa-Lite) Complete Four Leaf Barndoor Set for Pro, i-Light EMF Lamp - 800 watts/240 volts JCD230V300WC Lamp - 300W/230V Complete 4-Leaf Barndoor for Omni Light 4 x Uni TO Dual Light Stand (7') Tota/Omni Gel Frame for 10x12" Gels Tota/Omni Assorted Gels - Set of 5 (10 x 12") IP-L Assorted Gels (5-Pack) Pro/i-light Gel Frame 2 x Flexi-Shaft - Pack of 2 LOTF Tota-Brella - Silver - 27" Lampak for Tota-Light or Omni-Light surtzdzurrcfcxryydfxzsxwz Lampak for VP Light LOCTO83 1-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DV Creator 44 Kit, TO-83 Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DV9023ZE Specs | Rating | Rifa-Lite EX44, Pro-Light: 250 Watts
Omni-Light: 500 Watts
Tota-Light: 750 Watts | | Socket (Lampholder) | Rifa-Lite EX44, Omni-Light: 2-Pin
Tota-Light: R7s Double ended
Pro-Light:2- Pin Pro Socket | | Lens (Condenser) | Rifa-Lite EX44, Tota-Light, Omni-Light: Not Applicable
Pro-Light: Prismatic Glass | | Reflector (Mirror) | Rifa-Lite EX44: Silver interior softbox
Omni-Light: Double parabolic peened reflector
Tota-Light: Dual Gull Wing reflector doors
Pro-Light: High intensity #2 reflector | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | Rifa-Lite EX44, Pro-Light: 4' Captive cable, 12' extension cable
Omni-Light, Tota-Light: 16' With in-line switch | | Focusing | Rifa-Lite EX44, Tota-Light: Not Applicable
Omni-Light, Pro-Light: Continuously variable | | Weight | Rifa-Lite EX44: 2.1 lbs (1 kg)
Omni-Light: 2.6 lbs (1.9 kg)
Tota-Light: 2.25 lbs (1 kg)
Pro-Light: 2 lbs (0.9 kg) | | Dimensions | Rifa-Lite EX44: Collapsed length 17" (86 cm)
Omni-Light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Tota-Light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Pro-Light: 4.6 x 5 x 3.7" (11.7 x 12.7 x 9.4 cm)
Kit in Case: 29.5 x 17 x 7" (74.9 x 43.2 x 17.8 cm) | | Kit Weight | 35 lbs (15.9 kg) | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 25.0 x 15.0 x 6.0" |
