User Manual for Lowel DV Creator 44 Kit with LB-35 Case Click to enlarge the picture
Contents of the user manual for the Lowel DV Creator 44 Kit with
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel DV Creator 44 Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

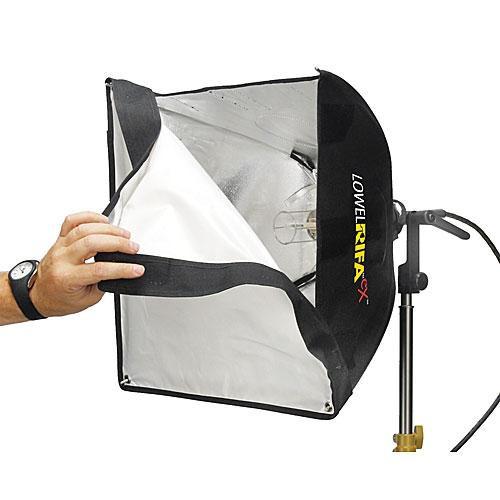

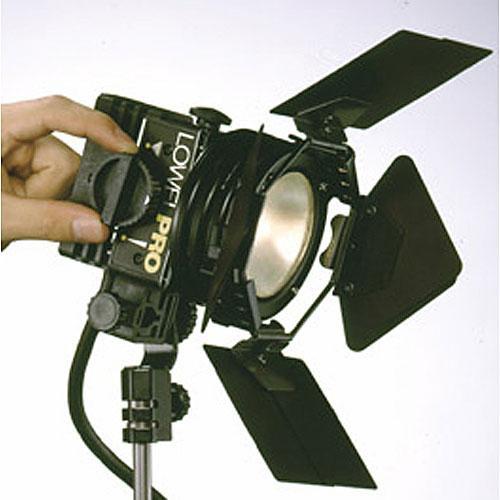

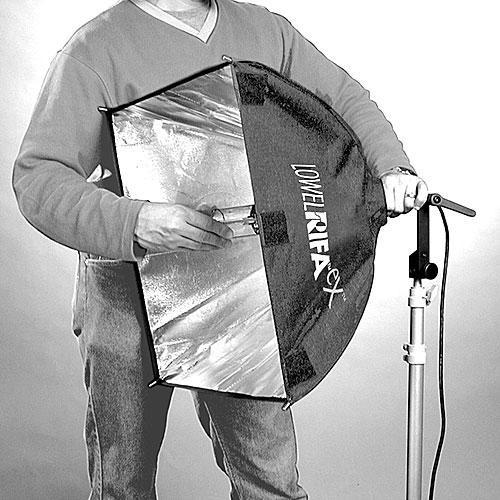

Product description The Lowel DV Creator 44 Kit with LB-35 Case offers four different types of light fixtures for a variety of lighting situations. This is a kit supplied with 120 VAC bulbs, gel frames, gels, stands, and an LB-35 Soft Kit Case. The unique, umbrella-like Rifa EX44 16 x 16" softlight allows set-up in 60 seconds or less. Bathe almost anything in soft light, from talking heads to table-top stills. Its quick-change power cord easily converts for use with professional battery belts, allowing it to work at 12, 14 and 30 VDC in addition to 120 VAC and 230 VAC. It's the perfect complement to today's compact, light-sensitive, digital cameras, and film stocks.With its high intensity #2 reflector and prismatic glass, the tiny, focusable Pro-Light is more efficient than a Fresnel of equal wattage, yet it gives an even light with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight. The wide focusing range of the Omni-Light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Compact, rugged, and versatile, the broad-throw Tota-Light can be used with its umbrella or gel-frame and diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-Lights are also widely used for photographic copy work. - Any of the fixtures in this kit can be converted to 230-240 volts use by ordering the appropriate bulbs, cable, and plug adapter
- The Pro-Light, Omni-Light and Rifa eX44 may be used with 12V or 30V battery packs
- The Pro-Light may be converted to on-camera use
- The face of the Rifa-Lite eX44 measures 16 x 16" (40 x 40 cm)
Accessory exchange lampheads allow use of daylight fluorescent screw-threaded lamps - The EX series of Rifa-Lites enables you to change out the fixture's socket, to make use of cooler-running fluorescent bulbs (bulbs available separately)

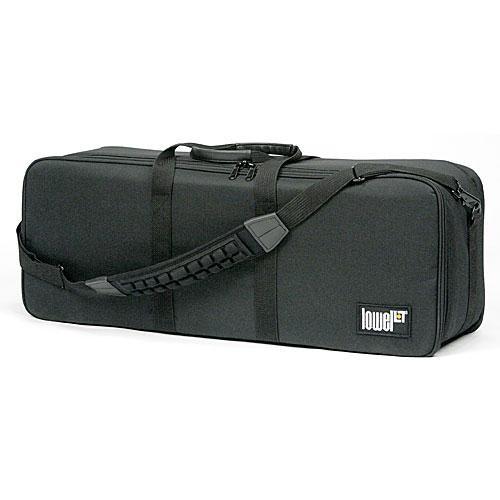

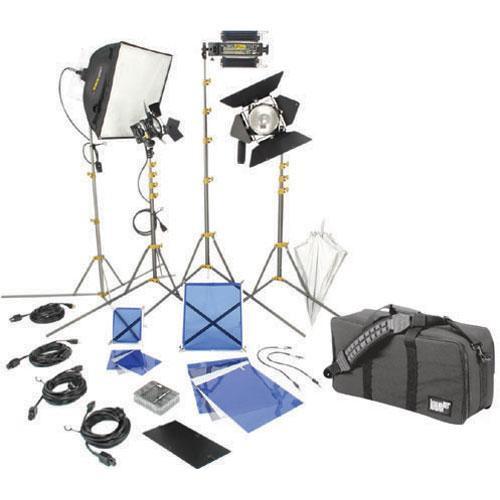

UPC: 841274002525 In the Box Lowel DV Creator 44 Kit with LB-35 Case LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) ViP Pro-Light (120 VAC / 12 VDC) Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) Tota-Light Tungsten Flood Light (120-240 VAC) 2 x FVL Lamp - 200 Watts/120 Volts EMD Lamp - 750W/120V FTK Lamp - 500 Watts/120 Volts Complete Four Leaf Barndoor Set for Pro, i-Light Complete 4-Leaf Barndoor for Omni Light 4 x Uni TO Dual Light Stand (7') 2 x Tota/Omni Gel Frame for 10x12" Gels Tota/Omni Assorted Gels - Set of 5 (10 x 12") IP-L Assorted Gels (5-Pack) Pro/i-light Gel Frame zvbcqrfadrvvf 2 x Flexi-Shaft - Pack of 2 Tota-Brella - Silver - 27" Lampak for Tota-Light or Omni-Light zvbcqrfadrvvf Lampak for VP Light LB-35 Large Litebag Soft Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DV Creator 44 Kit with LB-35 Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DV-902LBZ Specs | Rating | Rifa-Lite EX44, Pro-Light: 250 W
Omni-Light: 500 W
Tota-Light: 750 W | | Socket (Lampholder) | Rifa-Lite EX44, Omni-Light: 2-pin
Pro-Light: 2-pin pro socket
Tota-Light: R7s Double-ended | | Lens (Condenser) | Pro-Light: Prismatic glass
Rifa-Lite EX44, Tota-Light, Omni-Light: Not Applicable | | Reflector (Mirror) | Pro-Light: High intensity #2 reflector
Omni-Light: Double parabolic peened reflector
Tota-Light: Dual Gull Wing reflector doors
Rifa-Lite EX44: Silver interior softbox | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | Rifa-Lite EX44, Pro-Light: 4' / 1.2 m captive cable, 12' / 3.7 m extension cable, inline switch
Omni-Light, Tota-Light: 16' / 4.9 m with inline switch | | Focusing | Pro-Light, Omni-Light: Continuously variable
Rifa-Lite EX44, Tota-Light: Not Applicable | | Weight | Rifa-Lite EX44: 2.1 lb / 1 kg
Pro-Light: 2 lb / 0.9 kg
Omni-Light: 2.6 lb / 1.9 kg
Tota-Light: 2.25 lb / 1 kg | | Dimensions | Rifa-Lite EX44: 17" / 86 cm (collapsed length)
Pro-Light: 4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm
Omni-Light: 8 x 5.5 x 3" / 20 x 14 x 7.6 cm
Tota-Light: 2 x 3 x 11" / 5 x 7.6 x 27.9 cm (size closed)
Kit in Case: 30.5 x 11.5 x 8.5" / 77.5 x 29.2 x 21.6 cm | | Kit Weight | 28 lb / 12.7 kg | | | | Package Weight | 35.2 lb | | Box Dimensions (LxWxH) | 33.9 x 19.0 x 8.0" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
