User Manual for Lowel DV Creator 55 Kit, TO-84Z Case Click to enlarge the picture
Contents of the user manual for the Lowel DV Creator 55 Kit, TO-84Z
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel DV Creator 55 Kit, TO-84Z contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

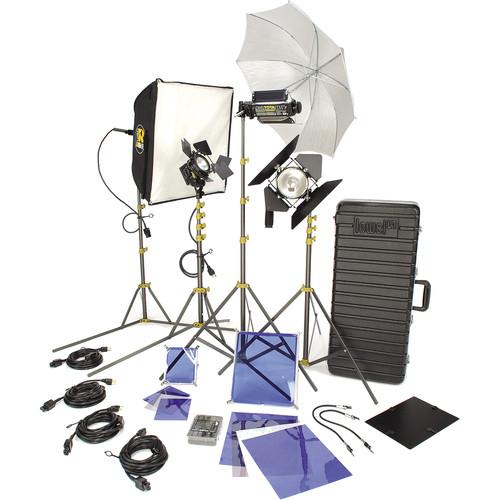

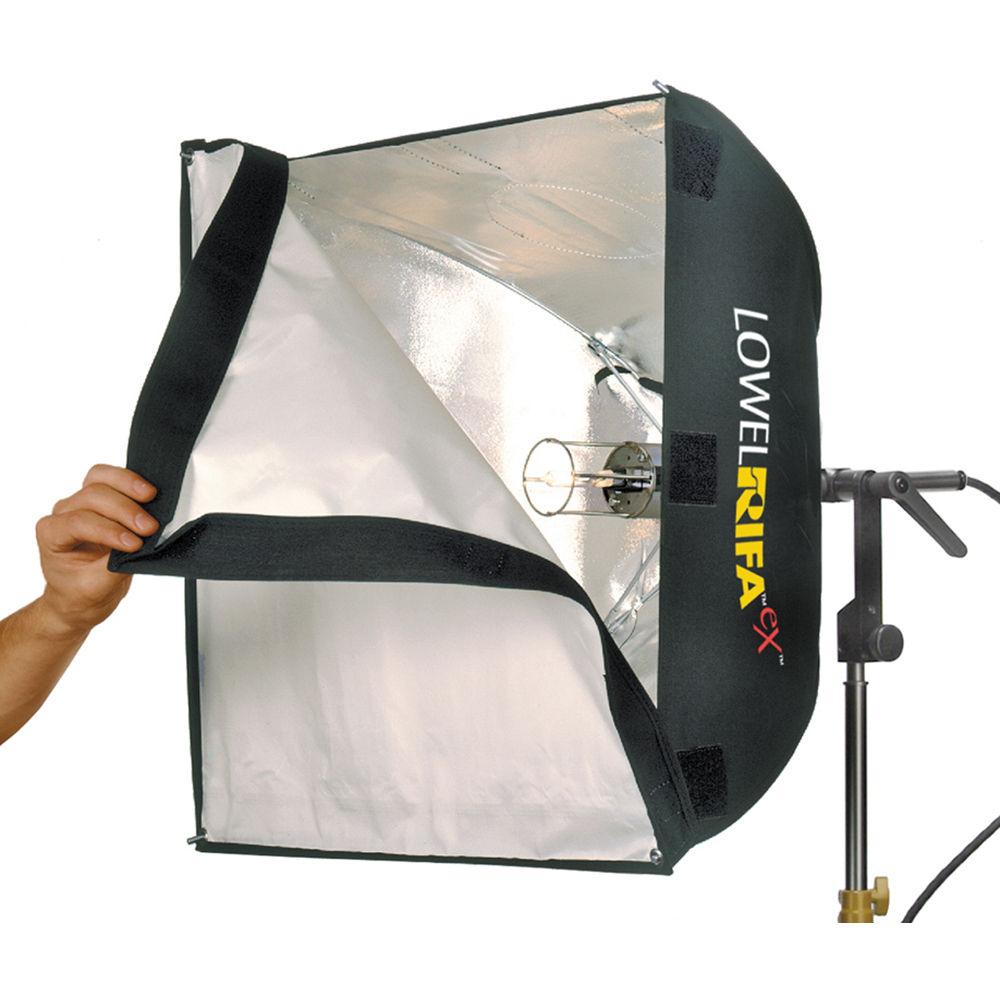

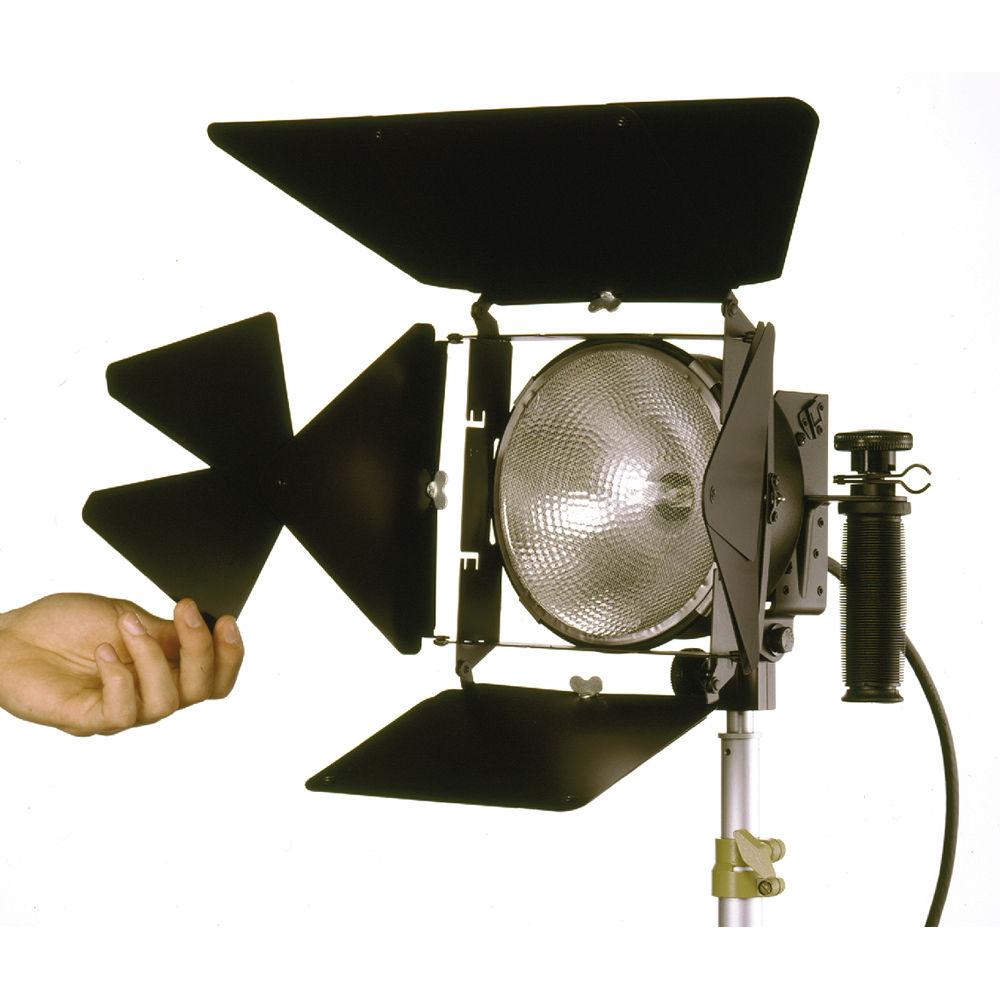

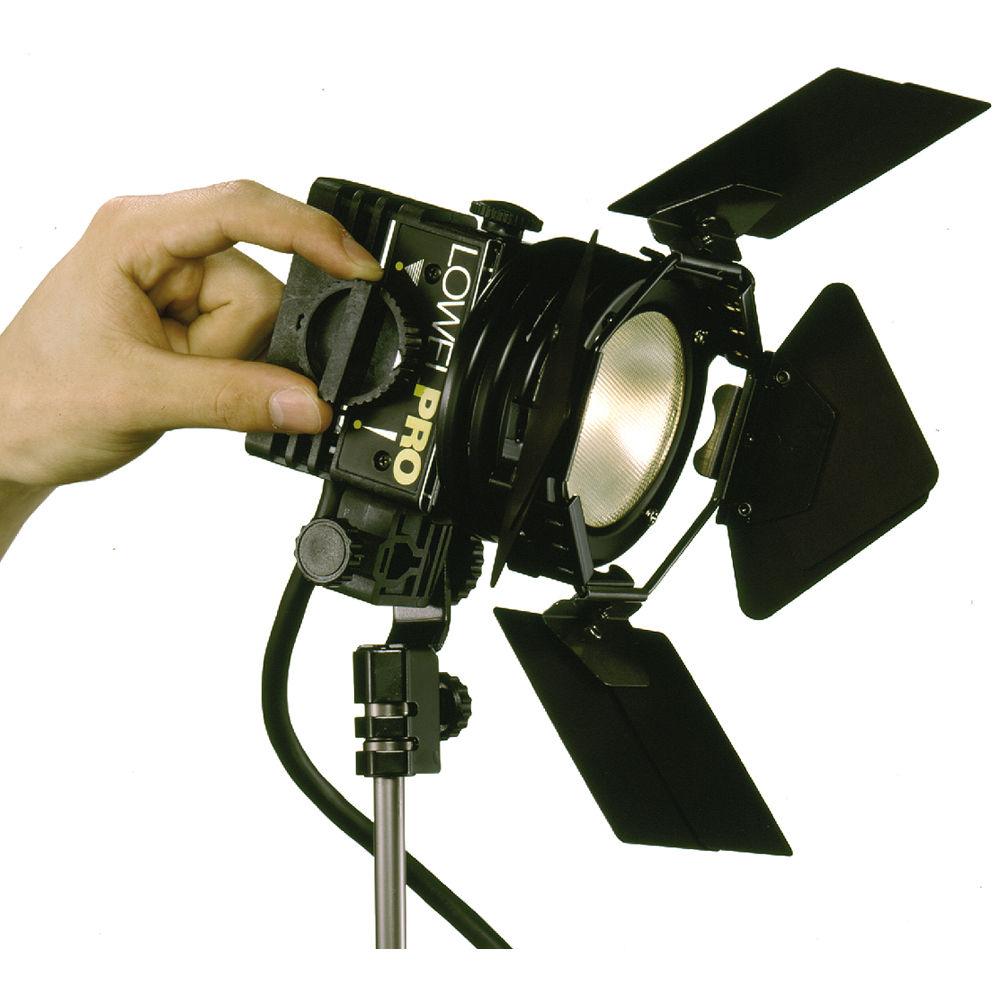

Product description This is a Lowel DV Creator 55 Kit, TO-84Z Case four-light kit. It features one of each of the most popular fixtures in the Lowel line, plenty of light modification accessories for any lighting scheme, and a TO-84Z hard carrying case.The Rifa-Lite EX 55 is a self-contained, 21 x 21", 500W, collapsible, tungsten/halogen softlight that uses the unique umbrella-like Rifa design allowing set-up in 60 seconds or less. It has a changeable socket to allow use of other types of bulbs, including fluorescent. Bathe almost anything in luxurious soft light, from talking heads to table-top stills. Its quick-change power cord can be converted for use with professional battery belts as well. It's the perfect complement to today's compact, light-sensitive, digital cameras and film stocks.With its high intensity #2 reflector & prismatic glass, the tiny focusable Pro-light is more efficient than a Fresnel of equal wattage, yet it gives an exquisite even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight.The wide focusing range of the Omni-light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source.Compact, rugged and versatile, the broad-throw Tota-light can be used with its umbrella or gel-frame and diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-lights are also widely used for photographic copy work. Note: This product operates on 230V, and may not be used in the USA. It's designed for use overseas. - The unique umbrella-like Rifa EX44 16 x 16" softlight allows set-up in 60 seconds or less and has a changeable socket for use with different bulbs
- Any of the fixtures in this kit can be converted to 230-240V use by ordering the appropriate bulbs, cable, and plug adapter
- The Pro-light, Omni-light and Rifa EX 44 may be used with 12V or 30V battery packs--the Pro-light can be converted to on-camera use
- Use the included light modification devices to alter the color, intensity, quality and shape of the light
- The kit case holds all the components for storage and transport

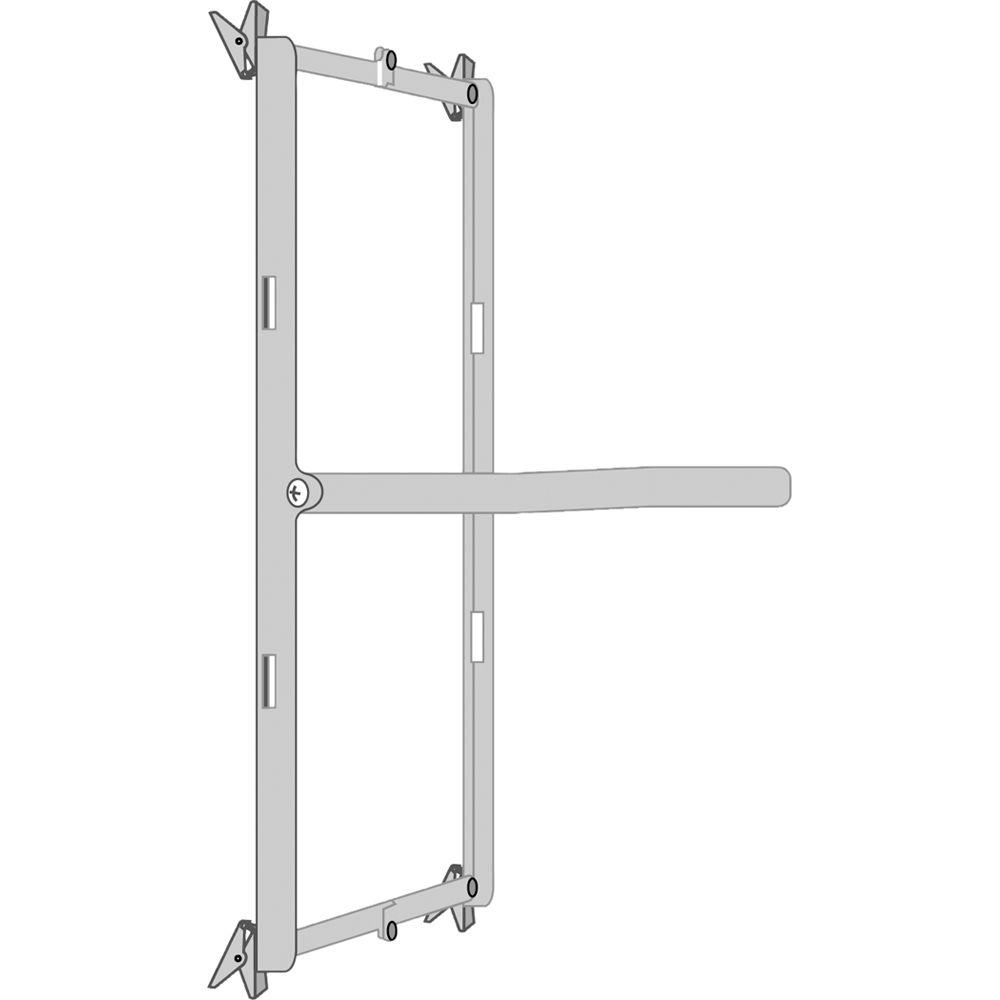

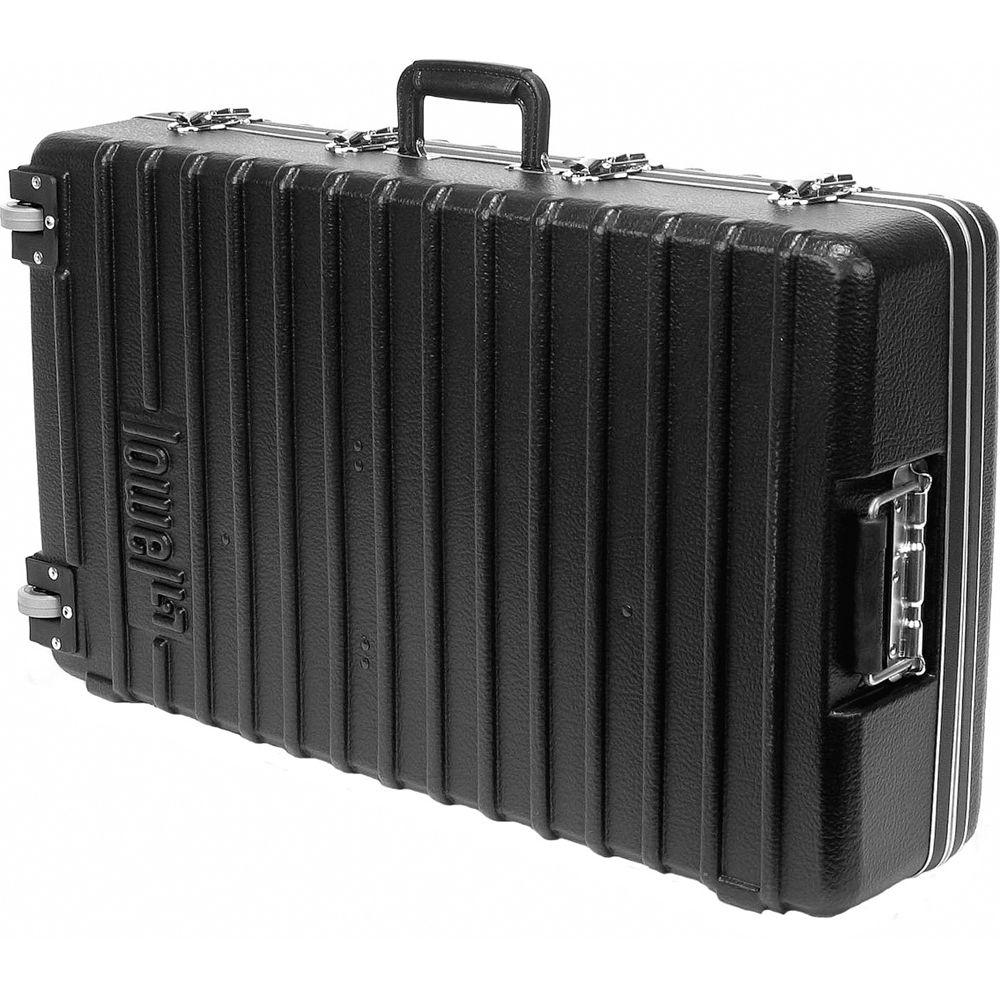

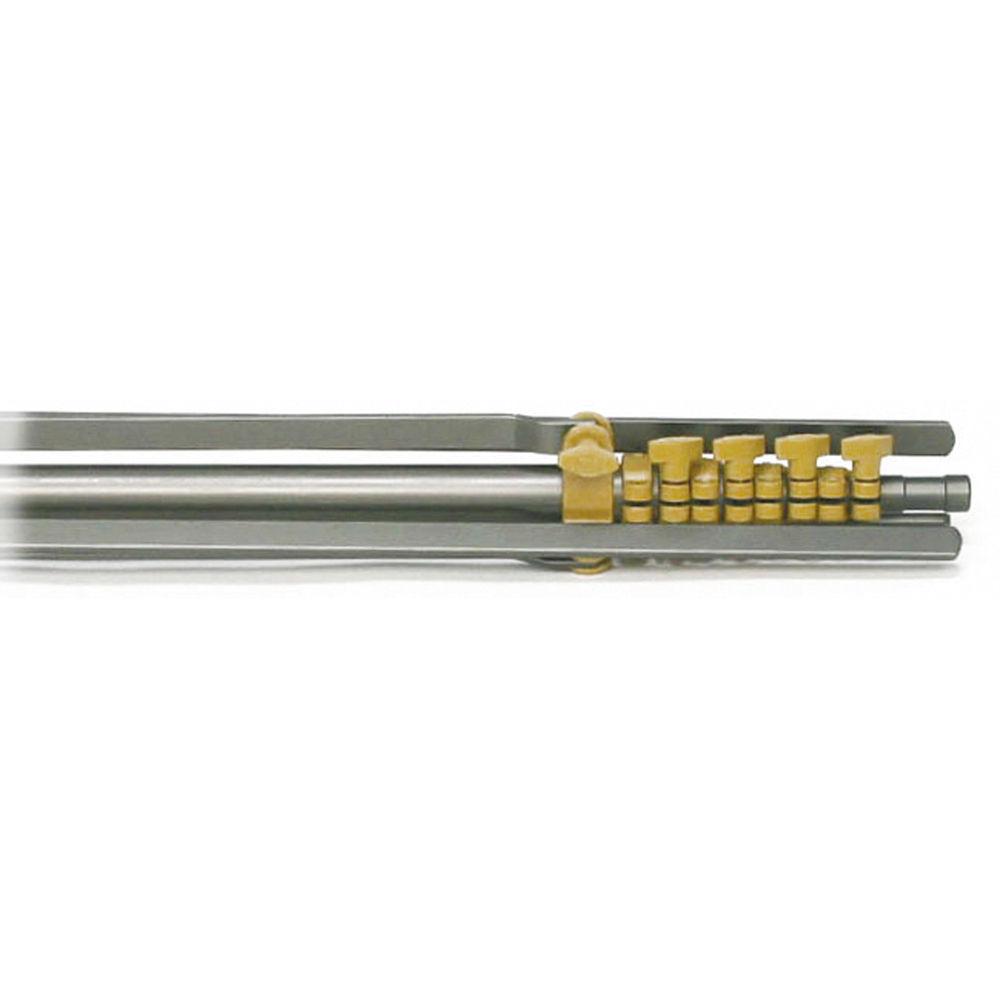

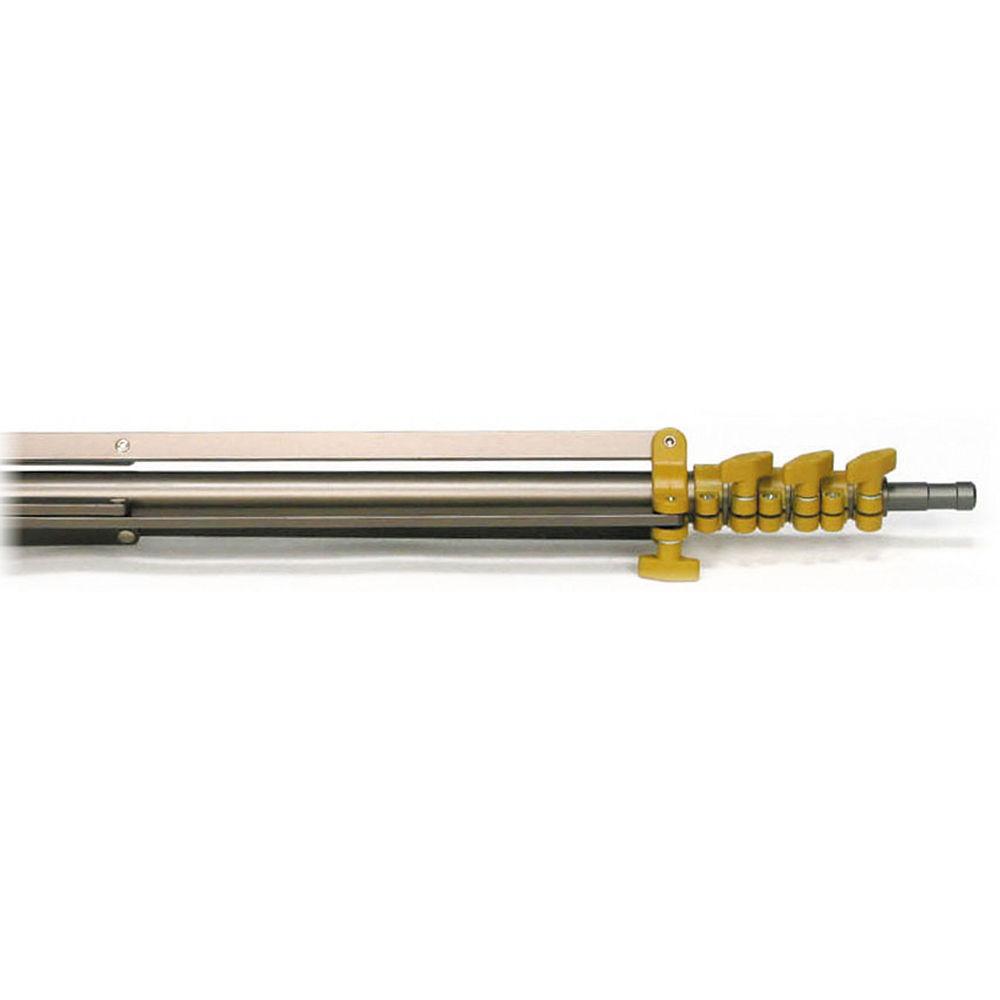

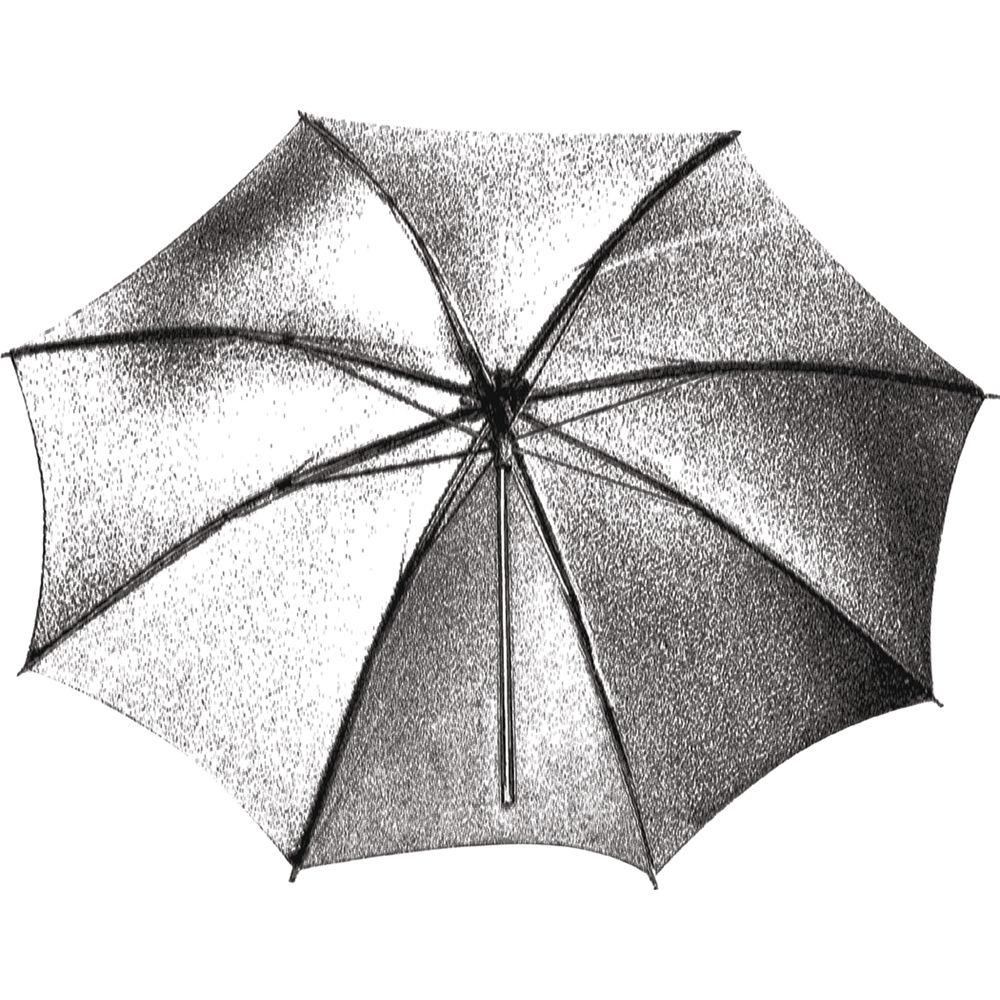

UPC: 841274010797 In the Box Lowel DV Creator 55 Kit, TO-84Z Case Rifa Lite EX55 for 220-230VAC Pro-light for 220-230VAC Omni-light for 220-230VAC Tota-light for 220-230VAC Complete Four Leaf Barndoor Set for Pro, i-Light dzaywtsywxrtcbuwrwtfawtzwusetryzvavu Complete 4-Leaf Barndoor for Omni Light Tota/Omni Gel Frame for 10x12" Gels Tota/Omni Assorted Gels - Set of 5 (10 x 12") KS Jr. Light Stand (7.6') 3 x Uni TO Dual Light Stand (7') Tota-Flag (8 x 12") Pro/i-light Gel Frame IP-L Assorted Gels (5-Pack) Tota-Brella - Silver - 27" dzaywtsywxrtcbuwrwtfawtzwusetryzvavu Flexi-Shaft - Pack of 2 EMF Lamp (800W/240V) GLF Lamp - 235W/230-240V for LC44 Rifa-Lite JCV Lamp (500W/240V) JCD Lamp (500W/240V) Lampak for DP or Tota Light dzaywtsywxrtcbuwrwtfawtzwusetryzvavu Lampak for Tota-Light or Omni-Light Molded Tota/Omni 84 Case - 29.5x17x7" (75x43.2x17.8cm) Two-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DV Creator 55 Kit, TO-84Z Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DV-9034ZE Specs | Rating | Rifa-lite 55, Omni-light: 500 watts
Tota-light: 750 watts
Pro-light: 250 watts | | Socket (Lampholder) | Rifa-lite 55, Omni-light: 2-pin
Tota-light: Double-ended
Pro-light: Pro socket | | Lens (Condenser) | Rifa-lite 55, Tota-light, Omni-light: Not Applicable
Pro-light: Prismatic glass | | Reflector (Mirror) | Rifa-lite 55: Silver interior softbox
Omni-light: Double parabolic peened reflector

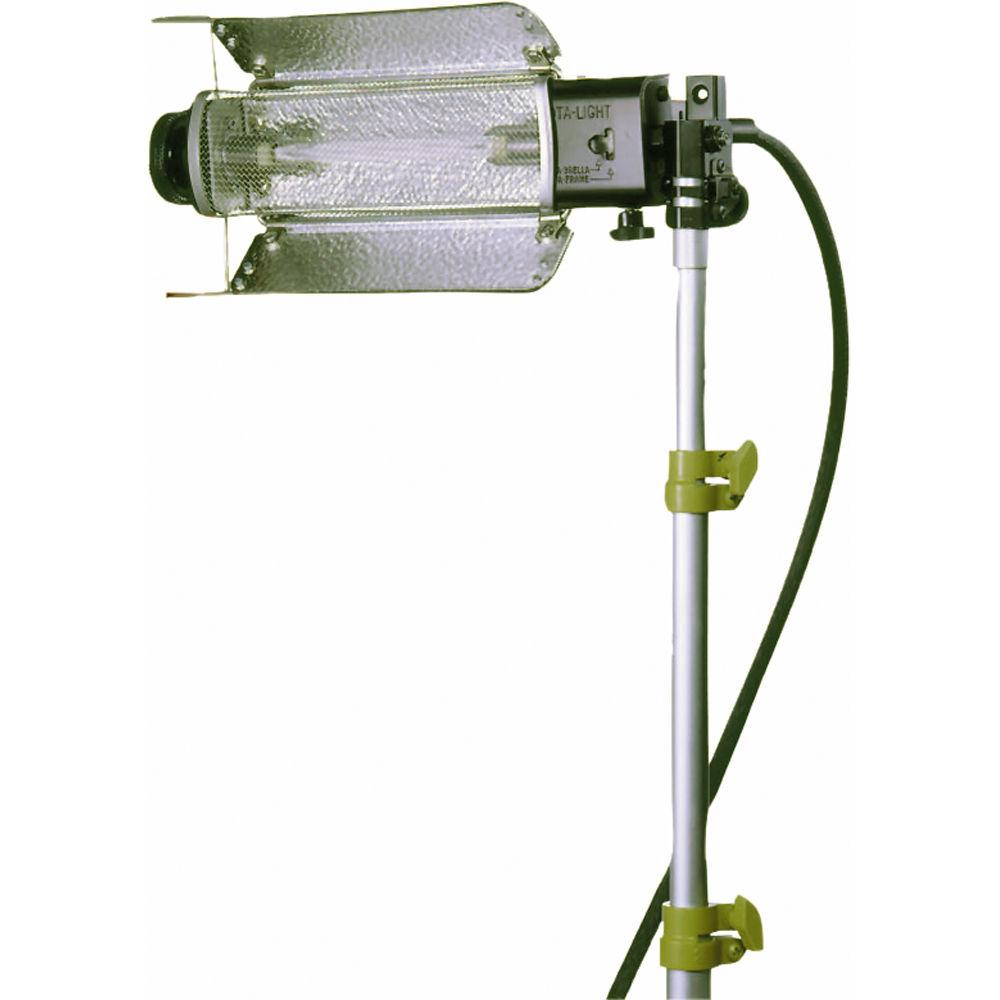

Tota-light: Dual Gull Wing reflector doors
Pro-light: High intensity #2 reflector | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | Rifa-lite 55, Pro-light: 4' captive cable
Omni-light, Tota-light: 16' with inline switch | | Focusing | Rifa-lite 55, Tota-light: Not Applicable
Pro-light, Omni-light: Continuously variable | | Weight | Rifa-lite 55: 2.5 lbs (1.1 kg)
Omni-light: 2.6 lbs (1.9 kg)
Tota-light: 2.25 lbs (1 kg)
Pro-light: 2 lbs (0.9 kg) | | Dimensions | Rifa-lite 55: Collapsed length 24" (61 cm)
Omni-light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Tota-light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Pro-light: 4.6 x 5 x 3.7" (11.7 x 12.7 x 9.4 cm)
Kit in Case: 29.5 x 17 x 7" (74.9 x 43.2 x 17.8 cm) | | Kit Weight | 42 lbs (19 kg) | | | | Package Weight | 47.5 lb | | Box Dimensions (LxWxH) | 32.0 x 18.6 x 10.5" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
