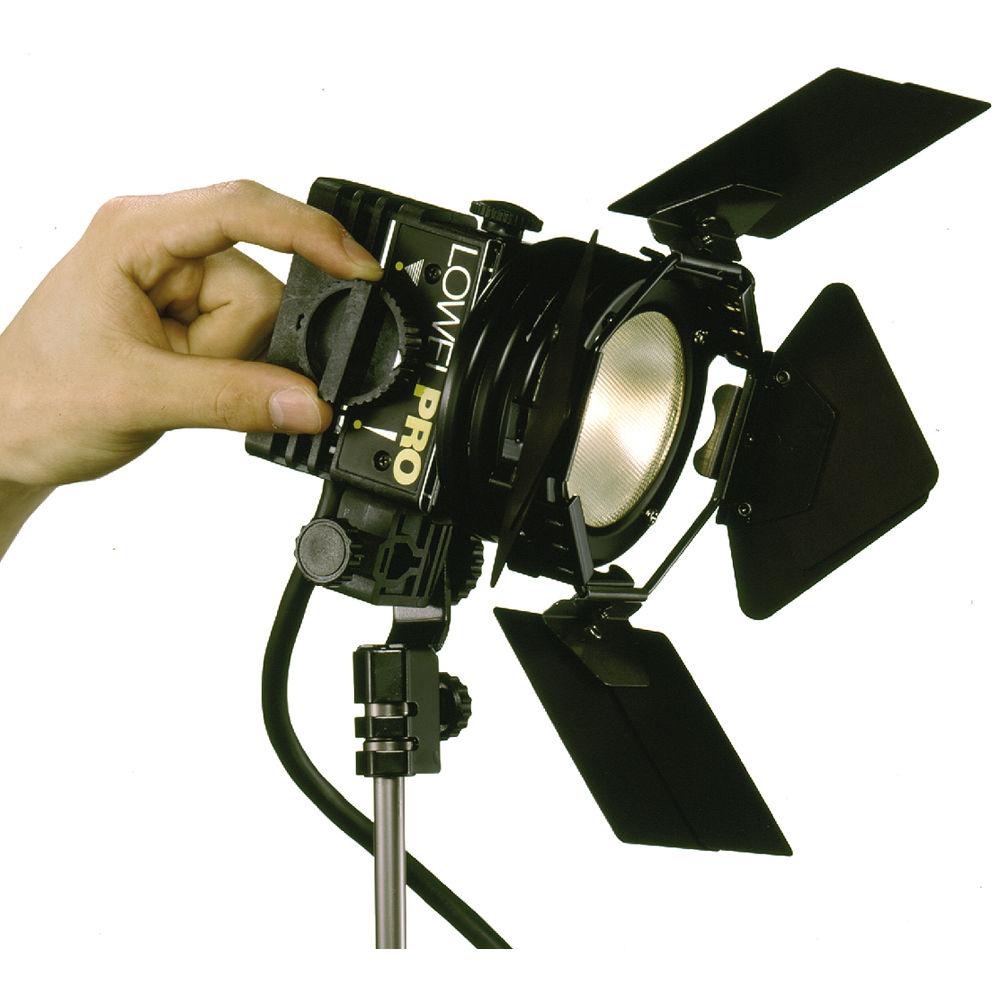

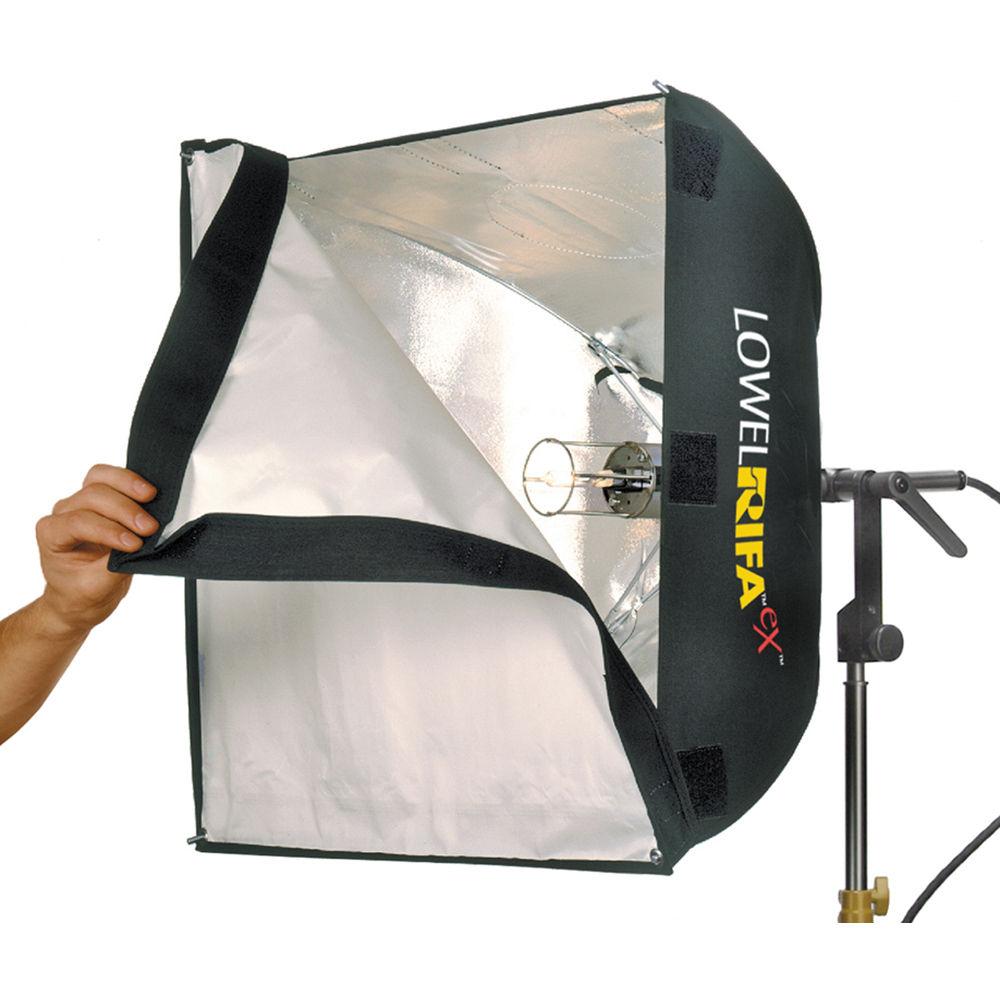

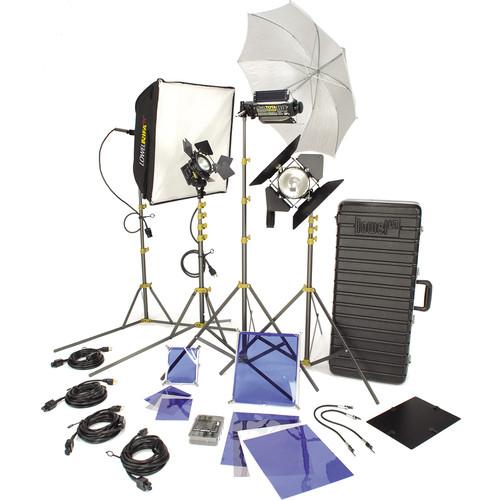

Product description This is a Lowel DV Creator 55 Kit with TO-83 Case four-light kit. It features one of each of the most popular fixtures in the Lowel line and plenty of light modification accessories for any lighting scheme. It includes the medium-sized TO-83 Hard Kit Case. The Rifa-Lite EX 55 is a self-contained, 21 x 21", 500W, collapsible, tungsten/halogen soft light that uses the unique umbrella-like Rifa design allowing set-up in 60 seconds or less. Bathe almost anything in luxurious soft light, from talking heads to table-top stills. Its twist-turn socket is removable, and allows the use of several types of bulbs when you order the optional sockets. Its quick-change power cord easily converts for use with professional battery belts, allowing it to work at 12, 14, and 30 VDC in addition to 120 and 230 VAC. It's the perfect complement to today's compact, light-sensitive digital cameras and film stocks.With its high intensity #2 reflector and prismatic glass, the tiny focusable Pro-Light is more efficient than a Fresnel of equal wattage, yet it gives an exquisite even light with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight. The wide focusing range of the Omni-Light makes it a flexible key or back-light. Add diffusion or an umbrella, and it's a soft fill source. Compact, rugged and versatile, the broad-throw Tota-light can be used with its umbrella or gel frame and diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-Lights are also widely used for photographic copy work.Although equipped for 110-120 volts, this kit may be used with 220-240 VAC or 12-30 VDC with the appropriate bulbs and cable adapters which are available separately. - The Rifa EX 55 has a changeable socket, which allows the use of other types of bulbs, including fluorescent screw-ins
- The Pro-Light's versatility can be increased by adding a DC adapter cable and swapping its bulb for use as a camera-top fixture
- Use the included light modification devices to alter the color, intensity, quality and shape of the light

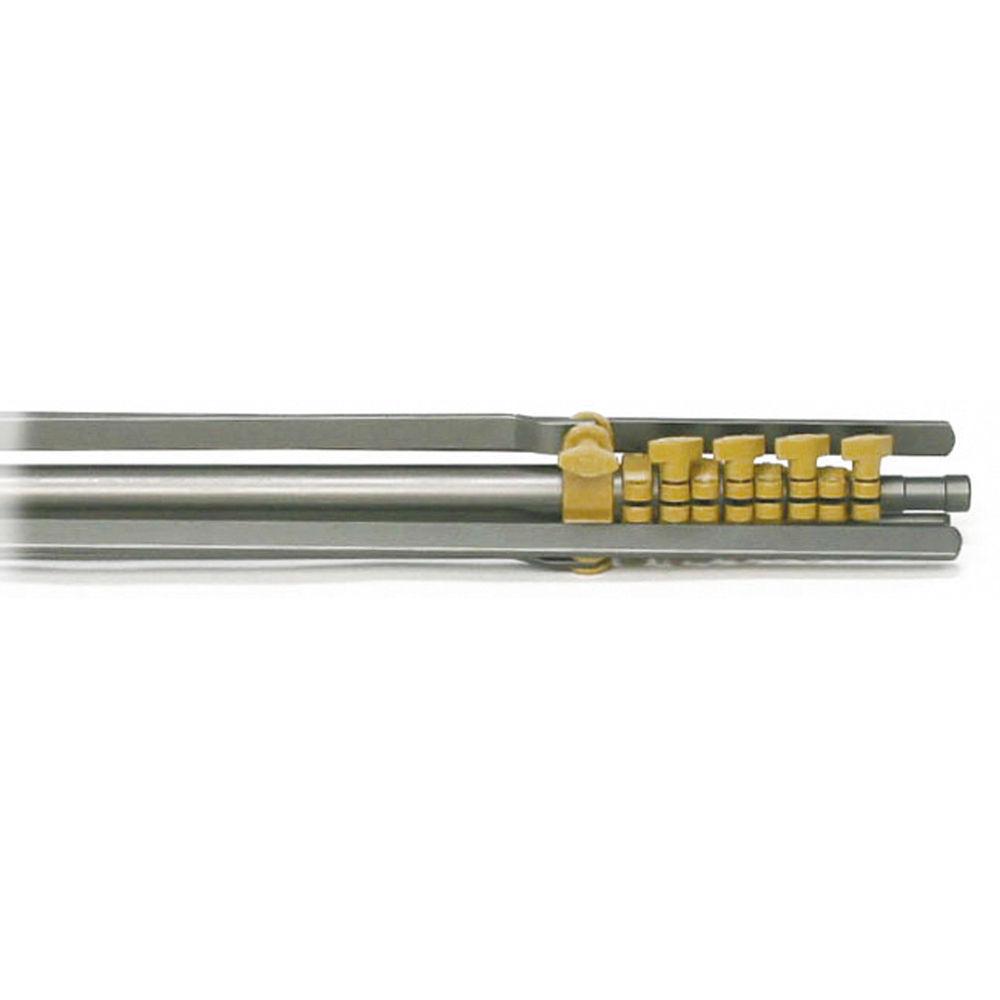

- The medium-sized TO-83 kit case holds everything, including the light stands, for storage and transport

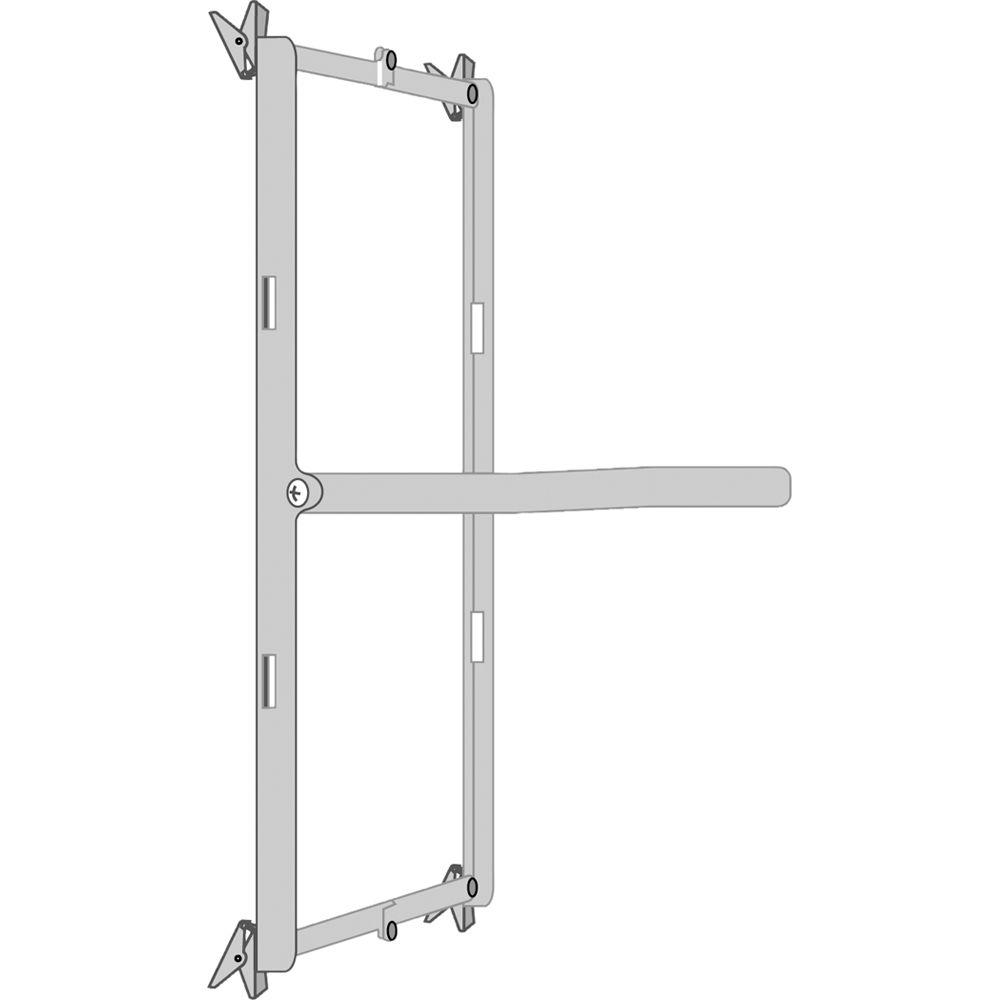

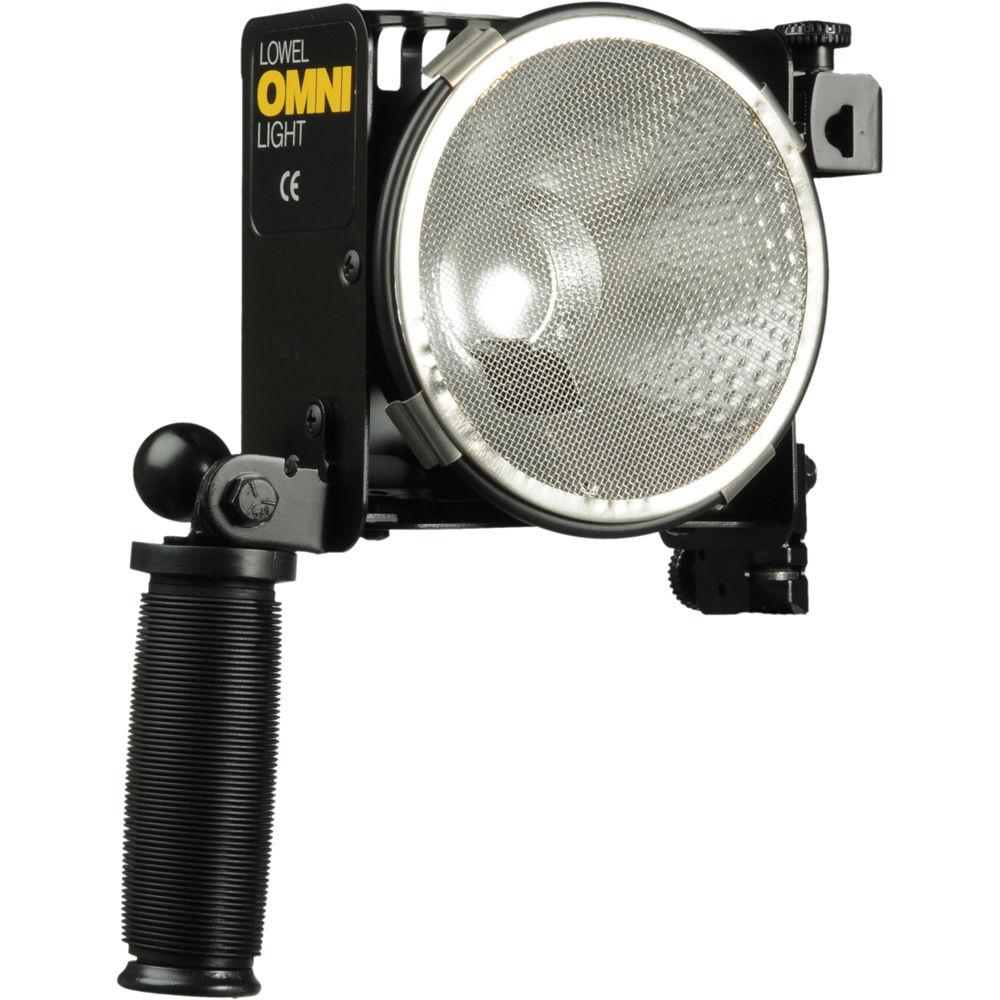

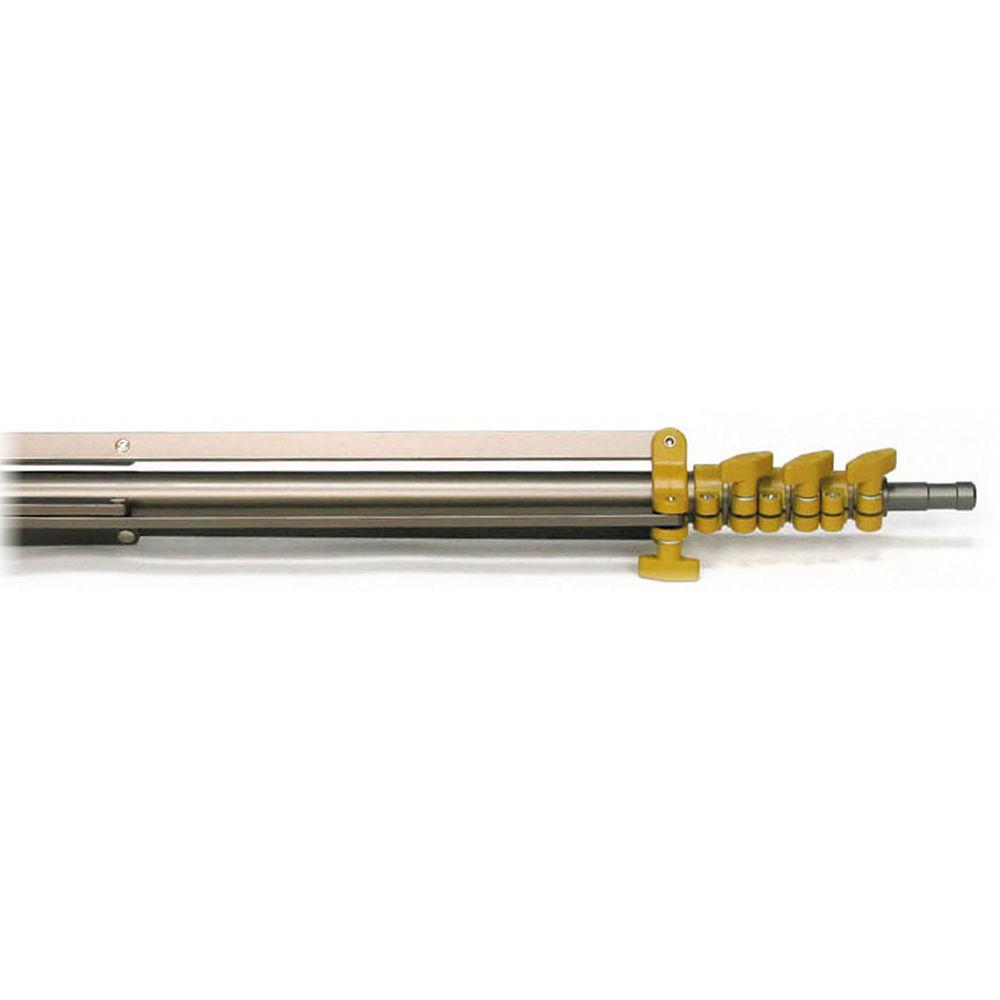

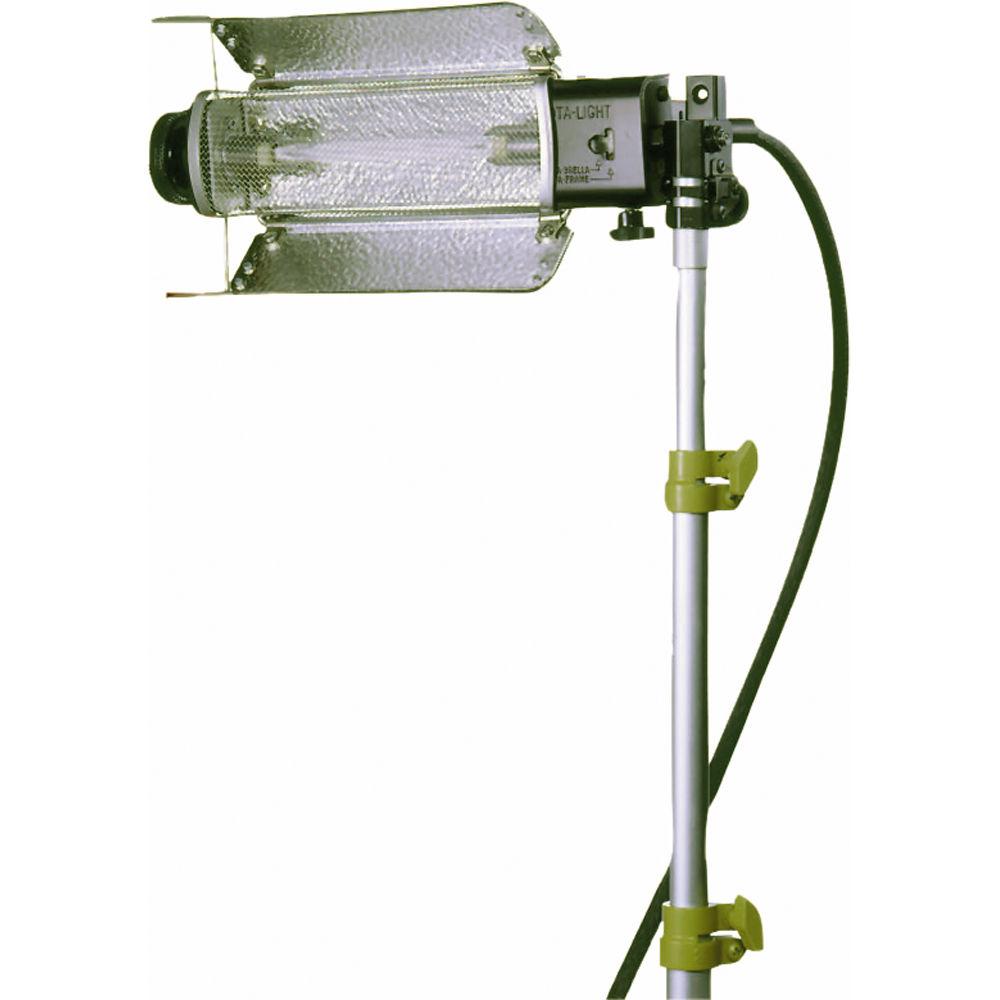

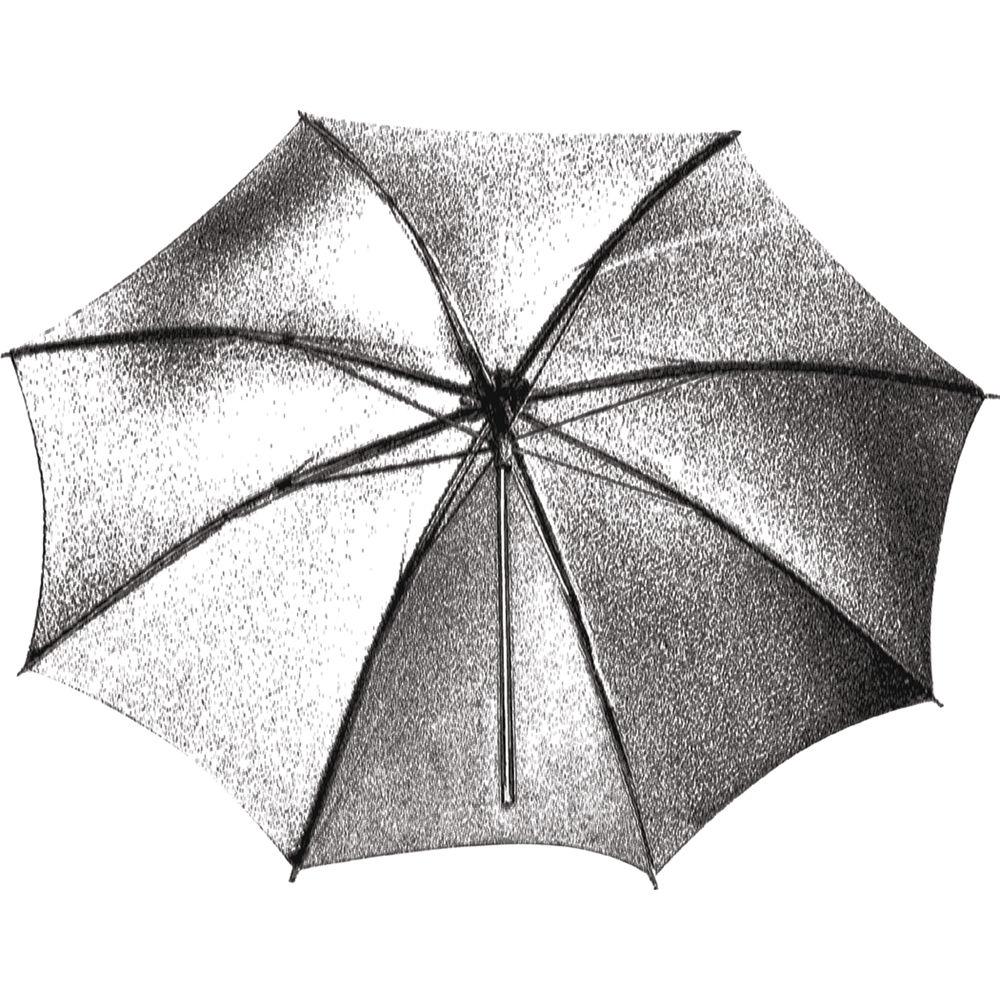

In the Box Lowel DV Creator 55 Kit with TO-83 Case LC55EX Rifa-Lite eX 500 Watt Softbox Light (120-240 VAC) ViP Pro-Light (120 VAC / 12 VDC) Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) Tota-Light Tungsten Flood Light (120-240 VAC) Complete Four Leaf Barndoor Set for Pro, i-Light Complete 4-Leaf Barndoor for Omni Light Tota/Omni Gel Frame for 10x12" Gels Tota/Omni Assorted Gels - Set of 5 (10 x 12") KS Jr. Light Stand (7.6') 3 x Uni TO Dual Light Stand (7') Tota-Flag (8 x 12") Pro/i-light Gel Frame IP-L Assorted Gels (5-Pack) Tota-Brella - Silver - 27" 2 x Flexi-Shaft - Pack of 2 EMD Lamp - 750W/120V FVL Lamp - 200 Watts/120 Volts vydbysvdfyyvscsvx EHC Lamp - 500W/120V FTK Lamp - 500 Watts/120 Volts Lampak for DP or Tota Light vydbysvdfyyvscsvx Lampak for Tota-Light or Omni-Light TO-83 Case Multi-system Hard Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DV Creator 55 Kit with TO-83 Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Rating | Rifa-Lite EX 55, Omni-Light: 500 W
Tota-Light: 750 W
Pro-Light: 250 W | | Socket (Lampholder) | Rifa-Lite EX 55, Omni-Light: 2-pin
Tota-Light: R7s double-ended
Pro-Light: Pro socket | | Lens (Condenser) | Rifa-Lite EX 55, Tota-Light, Omni-Light: Not Applicable
Pro-Light: Prismatic glass | | Reflector (Mirror) | Rifa-Lite EX 55: Silver interior softbox
Omni-Light: Double parabolic peened reflector
Tota-Light: Dual Gull Wing reflector doors
Pro-Light: High intensity #2 reflector | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | Rifa-Lite EX 55, Pro-Light: 4' captive cable, 12' extension, inline switch
Omni-Light, Tota-Light: 16' with inline switch | | Focusing | Rifa-Lite EX 55, Tota-Light: Not applicable
Pro-Light, Omni-Light: Continuously variable | | Weight | Rifa-Lite EX 55: 2.5 lb / 1.1 kg
Omni-Light: 2.6 lb / 1.9 kg
Tota-Light: 2.25 lb / 1 kg
Pro-Light: 2 lb / 0.9 kg | | Dimensions | Rifa-Lite EX 55: 24" / 61 cm (collapsed length)
Omni-Light: 8 x 5.5 x 3" / 20 x 14 x 7.6 cm
Tota-Light: 2 x 3 x 11" / 5 x 7.6 x 27.9 cm (size closed)
Pro-Light: 4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm
Kit in Case: 29.5 x 13 x 7" / 74.9 x 33 x 17.8 cm | | Kit Weight | 38 lb / 17.2 kg |
