User Manual for Lowel DV Pro 44 Kit, LB35R Soft Case Click to enlarge the picture
Contents of the user manual for the Lowel DV Pro 44 Kit, LB35R
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel DV Pro 44 Kit, LB35R contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

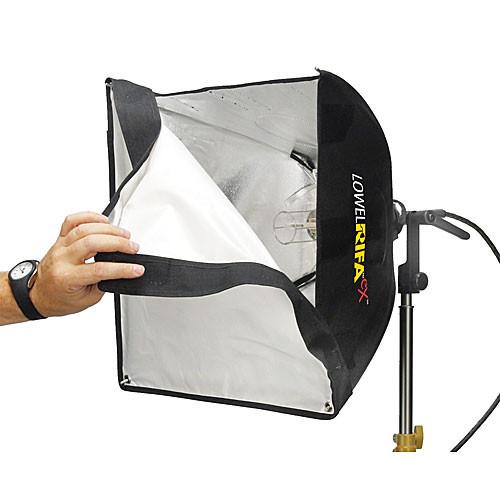

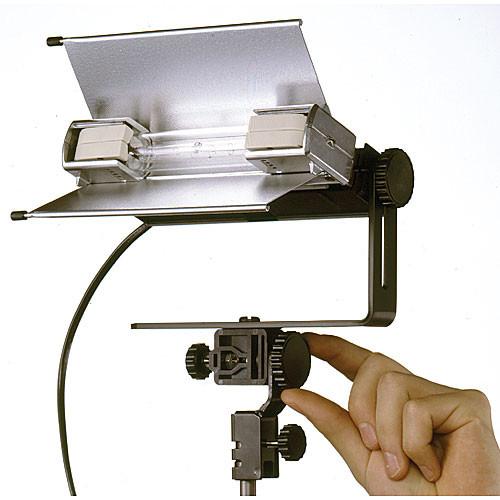

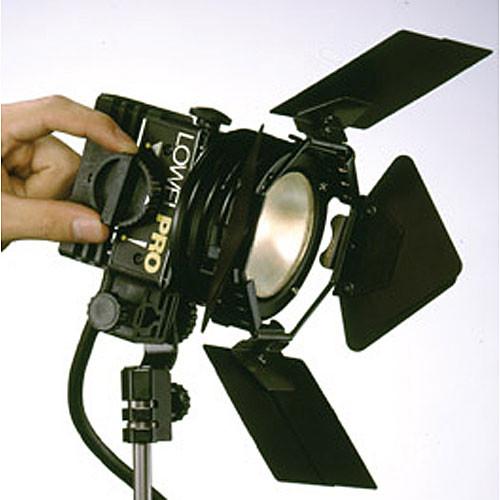

Product description The Lowel DV Pro 44 Kit, LB35R Soft Case is a five-light kit, including a Rifa-lite EX 44 softbox light. The Rifa-lite is a self-contained, 16 x 16", 250W, collapsible, tungsten/halogen softlight that uses the unique umbrella-like Rifa design, allowing set-up in 60 seconds or less. It has a changeable socket that accepts an Edison screw base socket (available separately) that allows you to use screw-in fluorescent bulbs. Bathe almost anything in luxurious soft light, from talking heads to table-top stills. It's the perfect complement to today's compact, light-sensitive, digital cameras and film stocks.With its high intensity #2 reflector & prismatic glass, the tiny focusable Pro-light is more efficient than a Fresnel of equal wattage, yet it gives an exquisite even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight. In addition to a wide variety of customizing accessories, its versatility can be increased by adding a DC adapter cable and swapping its bulb for use as a camera-top fixture. Powerful enough to light a small room, yet small enough to fit in a large pocket, the V-light can be used as a broad key light, a fill light (with an umbrella or diffusion gel), a backlight, or a background light. It's also excellent for copy work. - The umbrella, barndoors, scrims and gels alter the quality, shape, intensity and color of the light
- This kit includes arm, flags, flexi-shafts and clamps for even more precise control of the light
- The soft carry case makes storage and transport easy
- May be used with different voltages by changing the bulb(s) and power cords, or by adding optional plug adapters

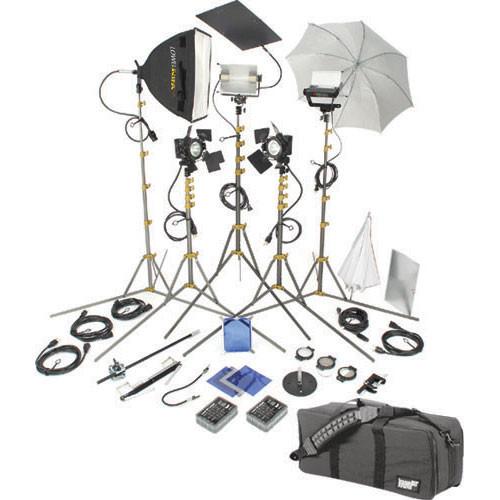

UPC: 841274002648 In the Box Lowel DV Pro 44 Kit, LB35R Soft Case 2 x ViP Pro-Light (120 VAC / 12 VDC) 2 x Complete Four Leaf Barndoor Set for Pro, i-Light 3 x GCA Lamp - 250 Watts/120 Volts 2 x V-Light 500 Watt Tungsten Flood Light (120-240VAC) 2 x FVL Lamp - 200 Watts/120 Volts LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) Tota/Omni Gel Frame for 10x12" Gels White 27" Tota-Brella 4 x Uni-Stand (7.9') Uni TO Dual Light Stand (7') IP-L Assorted Gels (5-Pack) Tota/Omni Assorted Gels - Set of 5 (10 x 12") Pro/i-light Gel Frame Pro & i Clear Safety Glass Diffused Glass with Holder for Pro & i-Light 3" Full Scrim with Holder for Pro and i-Light bqeszsfbteytwyrx 3" Half Scrim with Holder for Pro and i-Light 2 x Flexi-Shaft - Pack of 2 Tota-Flag (8 x 12") Tota-flector 8x12" Tota-Tilter Tota-Clamp Tota-Mount Vipod with Stud Link Lobo Arm and Lobo 2 x Lampak for VP Light LB-35 Large Litebag Soft Case Two-Year Manufacturer's Warranty on Fixtures Five-Year Manufacturer's Warranty on Stands One-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DV Pro 44 Kit, LB35R Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DVP-94LB Specs | Rating | Each Pro-light: 250 watts
V-light: 500 watts
Rifa-lite 44: 250 watts | | Socket (Lampholder) | Each Pro-light: Pro socket
V-light: Double-ended
Rifa-lite 44: 2-pin | | Lens (Condenser) | Each Pro-light: Prismatic glass
V-light, Rifa-lite 44: Not applicable | | Reflector (Mirror) | Each Pro-light: High intensity #2 reflector)
Rifa-lite 44: Silver interior softbox
V-light: Not applicable | | Mounting | Standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | Each Pro-light, Rifa-lite 44: 4' captive cable
V-light: 16' #18/2 | | Focusing | Each Pro-light: Side-mounted control knob
V-light, Rifa-lite: Not applicable | | Weight | Each Pro-light: 2 lb (0.9 kg)
V-light: 1.5 lb (0.68 kg)
Rifa-lite 44: 2.1 lb (1 kg) | | Dimensions | Each Pro-light: 4.6 x 5 x 3.7" (11.7 x 12.7 x 9.4 cm)
Rifa-lite 44 collapsed: 17" (86 cm)
V-light: Closed: 7.3 x 7.3 x 1.3" (18.5 x 18.5 x 3.3 cm)
Kit in Case: 30.5 x 11.5 x 8.5" (77.5 x 29.2 x 21.6 cm) | | Kit Weight | 46 lb (21 kg) | | | | Package Weight | 40.8 lb | | Box Dimensions (LxWxH) | 32.0 x 19.0 x 10.0" |
